Description

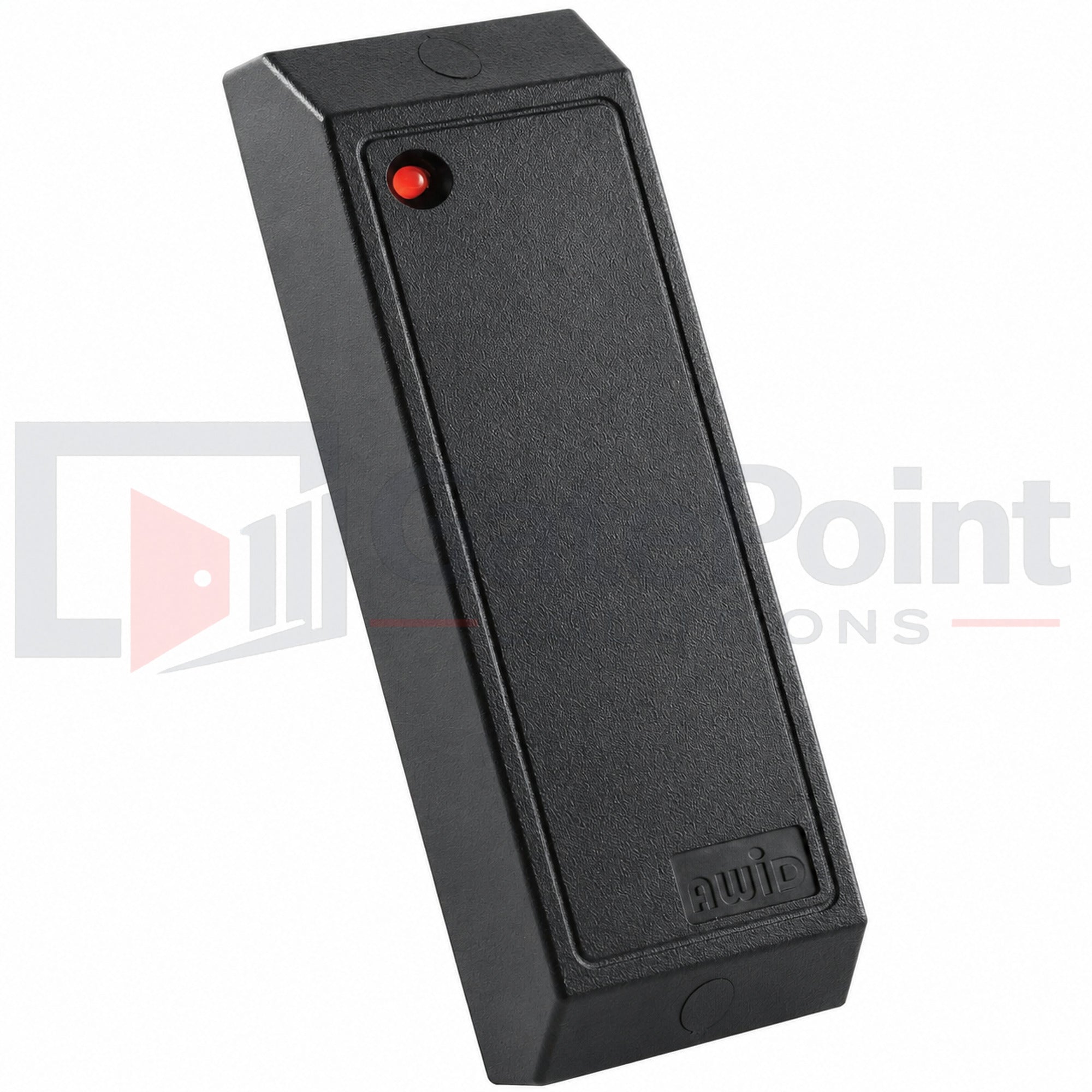

The AWID MM-6800 Sentinel-Prox™ is a high-performance mullion mount proximity reader designed for demanding access control applications requiring extended read range, flexible communication options, and reliable indoor or outdoor operation. Supporting both Wiegand and RS-232 output simultaneously, the MM-6800 provides seamless integration with a wide variety of access control systems while simplifying inventory and deployment requirements.
Engineered specifically for mullion mounting on door frames, gates, entrances, and access points, the MM-6800 delivers a read range of 6 to 8 inches when paired with compatible AWID proximity credentials. Its metal-compensated housing minimizes performance loss when mounted on metal surfaces, making it an ideal solution for commercial buildings, industrial facilities, gated communities, and institutional environments.
Featuring epoxy-potted electronics, integrated LED visual indicators, and an audible piezo sounder, the MM-6800 is built for dependable long-term performance while providing users with clear credential-read feedback. Its durable construction and versatile interface options make it a reliable choice for both new installations and system upgrades.
Key Features
- Extended-range mullion mount proximity reader
- Simultaneous Wiegand and RS-232 outputs
- Read range of 6 to 8 inches
- Compatible with industry-standard 125 kHz proximity credentials
- Metal-compensated housing for installation on metal surfaces
- Integrated LED visual indicators
- Built-in piezo sounder for audible feedback
- Epoxy-potted electronics for environmental protection
- Suitable for indoor and outdoor installations
- Available in dark gray or beige finishes
Benefits
- Longer read range than standard mullion readers
- Supports multiple access control platforms
- Easy integration into existing systems
- Reliable performance on metal door frames and mullions
- Visual and audible user feedback
- Durable construction for demanding environments
- Reduces inventory requirements with dual-interface support
- Ideal for retrofit and new construction projects
Applications
- Commercial office buildings
- Apartment and condominium communities
- Schools and universities
- Healthcare facilities
- Government facilities
- Industrial facilities
- Secured entry doors and gates
- Indoor and outdoor access control systems
Specifications
- Model: MM-6800
- Manufacturer: AWID
- Product Type: Proximity Reader
- Technology: 125 kHz Low Frequency Proximity
- Interface: Wiegand and RS-232 (Simultaneous)
- Read Range: 6" to 8" (15–20 cm)
- Dimensions: 6" x 1.75" x 1" (15.24 x 4.45 x 2.54 cm)
- Operating Voltage: 5–12 VDC
- Audio Feedback: Integrated Piezo Sounder
- Visual Feedback: LED Indicator
- Mounting Style: Mullion Mount
- Installation: Indoor / Outdoor
- Housing Colors: Dark Gray or Beige
- Certifications: FCC, Industry Canada, RoHS Compliant
