Description

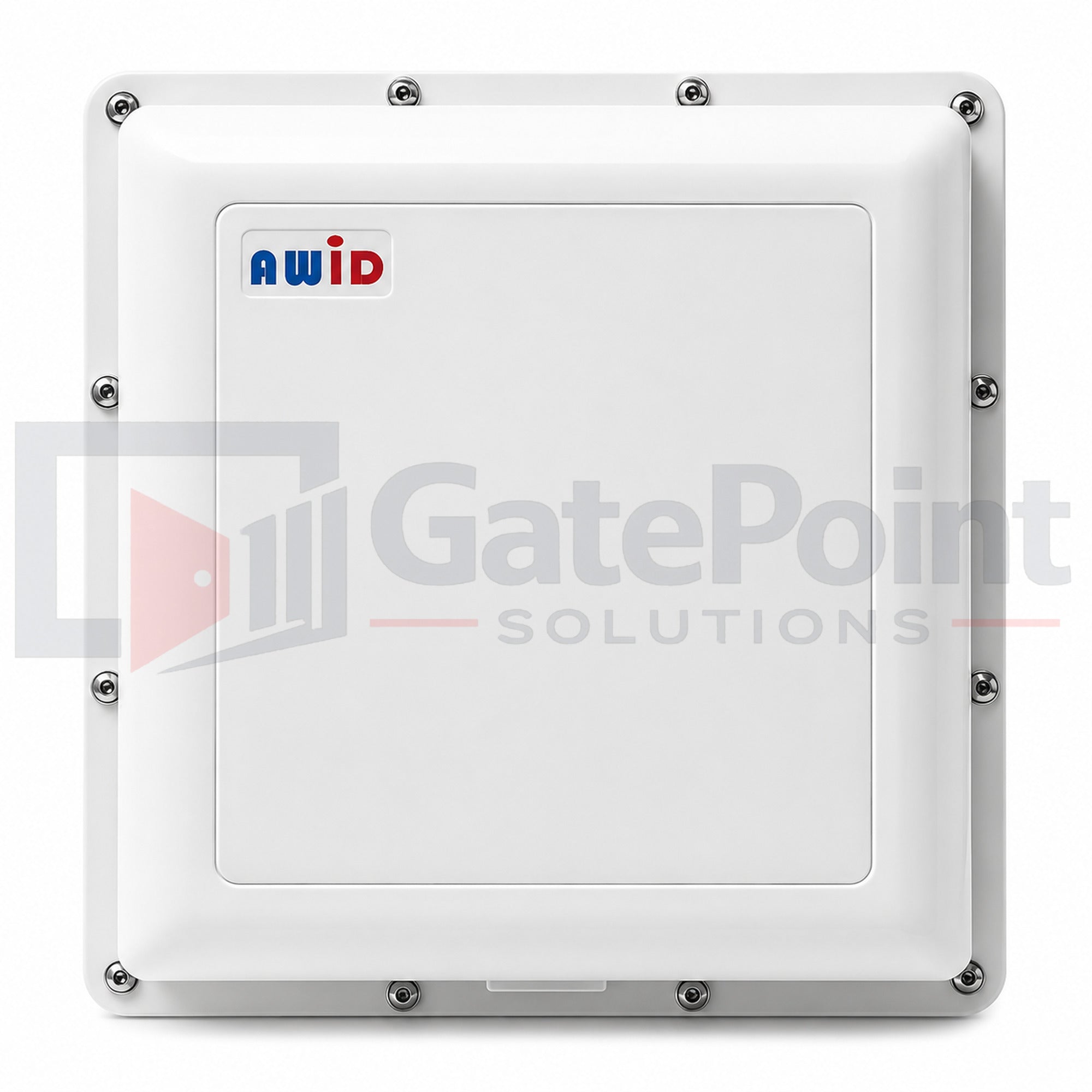

The AWID LR-3000 is a high-performance long-range UHF RFID reader engineered for vehicle identification, parking access, gated communities, and access control applications. Operating within the 902–928 MHz frequency range, the LR-3000 combines advanced RFID technology, an integrated RHCP patch antenna, and a rugged weather-resistant enclosure to deliver reliable credential detection at distances of up to 25 feet.
Designed for Automatic Vehicle Identification (AVI) and personnel access control, the LR-3000 provides fast, accurate identification of RFID tags and credentials without requiring batteries in the credentials themselves. Its integrated design combines the reader electronics and antenna into a single compact housing, simplifying installation while maximizing performance.
The LR-3000 supports simultaneous Wiegand and RS-232 communication outputs, allowing seamless integration with access control systems, parking management platforms, gated entry systems, and industrial security applications. AWID's proprietary encrypted communication technology helps ensure secure credential transactions for enhanced system security.
Key Features
- Long-range UHF RFID reader
- Read ranges up to 25 feet
- Operates in the 902–928 MHz frequency range
- Integrated RHCP patch antenna
- Simultaneous Wiegand and RS-232 outputs
- Programmable repetition rate for optimized performance
- Supports passive RFID credentials with no battery required
- Rugged IP65-rated enclosure for outdoor installations
- FCC certified and RoHS compliant
Benefits
- Ideal for Automatic Vehicle Identification (AVI)
- Reliable long-range credential detection
- Simplifies installation with integrated antenna design
- Compatible with most access control systems
- Cost-effective passive RFID credential solution
- Suitable for indoor and outdoor environments
- Secure encrypted credential communications
- Easy integration with parking and gate access systems
Applications
- Gated communities
- Commercial vehicle access control
- Parking facilities and garages
- Industrial and logistics facilities
- Apartment and condominium access control
- Hospital and campus vehicle management
- Secure perimeter and gate automation systems
Specifications
- Model: LR-3000
- Manufacturer: AWID
- Technology: UHF RFID
- Frequency Range: 902 MHz – 928 MHz (FHSS)
- RF Power Output: 1 Watt (30 dBm)
- Read Range: Up to 25 Feet
- Antenna: Integrated RHCP Patch Antenna
- Interface: Wiegand and RS-232 (Simultaneous)
- Dimensions: 9.8" x 9.8" x 1.3"
- Protection Rating: IP65
- Certifications: FCC, ETL, RoHS
- Credential Compatibility: AWID UHF Cards and Tags
