Description

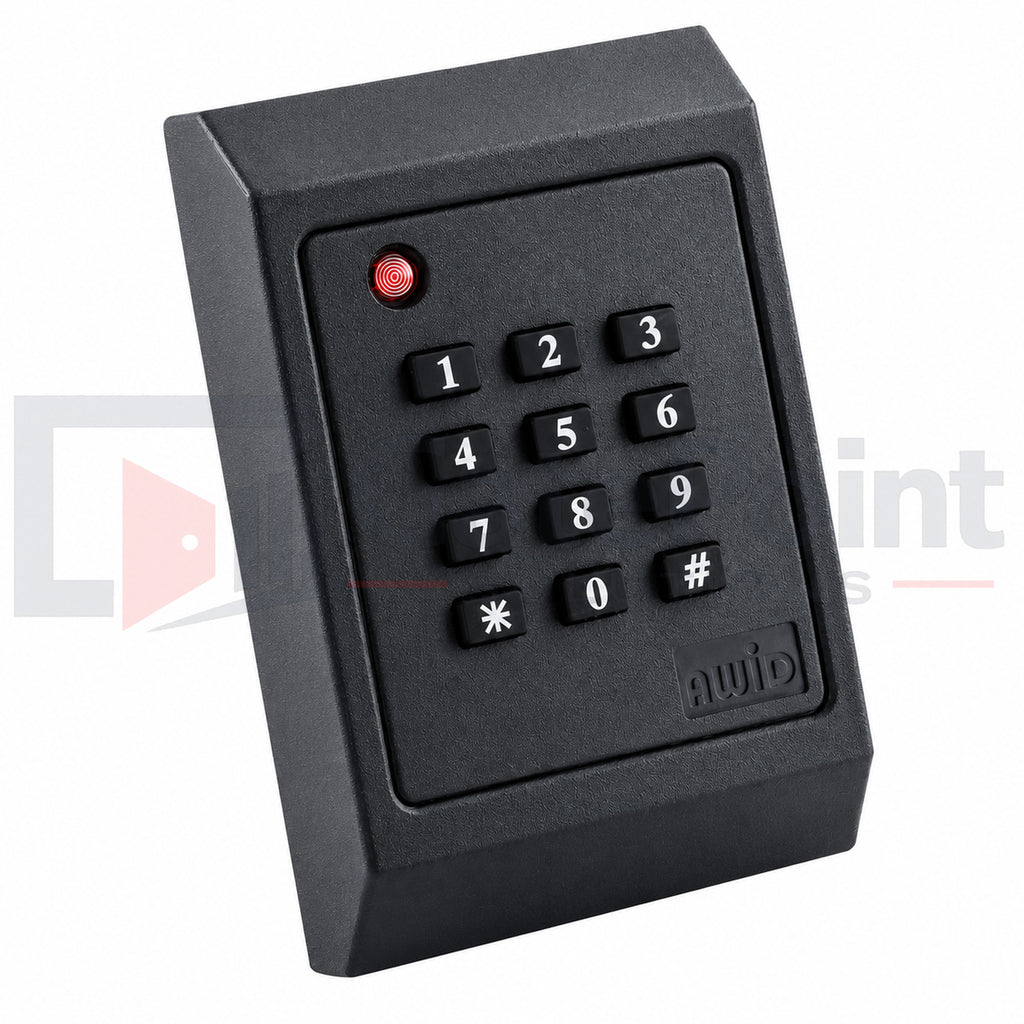

The AWID KP-6840 Sentinel-Prox™ combines a high-performance proximity reader with an integrated keypad, providing an ideal solution for access control applications that require dual-factor authentication. Designed for commercial, institutional, and high-security environments, the KP-6840 allows users to gain access using a proximity credential, PIN code, or a combination of both for enhanced security.
Featuring a read range of 6 to 8 inches, the KP-6840 supports industry-standard 125 kHz proximity credentials while delivering flexible keypad output options, including 4-bit burst, 8-bit burst, and 26-bit Wiegand formats. Its attractive switch plate design mounts easily to a standard single-gang electrical box or directly to interior and exterior wall surfaces.
Built with epoxy-potted electronics for long-term durability, the KP-6840 includes programmable red or green LED indicators, an integrated piezo sounder, and rugged weather-resistant construction. The result is a reliable and professional-grade access control reader suitable for both indoor and outdoor installations.
Key Features
- Integrated proximity reader and keypad
- Supports card-only, PIN-only, or card-plus-PIN authentication
- Read range of 6 to 8 inches
- Compatible with industry-standard 125 kHz proximity credentials
- Supports 4-bit burst, 8-bit burst, and 26-bit keypad output
- Programmable red or green LED status indicator
- Integrated piezo sounder for audible feedback
- Epoxy-potted electronics for environmental protection
- Single-gang electrical box mounting
- Indoor and outdoor installation capability
Benefits
- Enhances security through dual-verification access control
- Supports multiple authentication methods
- Provides reliable credential and keypad operation
- Durable construction for demanding environments
- Easy installation and maintenance
- Visual and audible user feedback improves user experience
- Compatible with a wide range of access control systems
- Professional appearance for commercial applications
Applications
- Office buildings
- Schools and universities
- Government facilities
- Healthcare facilities
- Apartment and condominium access
- Commercial security doors
- Restricted access areas
- High-security entry points
Specifications
- Model: KP-6840
- Manufacturer: AWID
- Product Type: Keypad Proximity Reader
- Technology: 125 kHz Low Frequency Proximity
- Read Range: 6" to 8" (15–20 cm)
- Interface: Wiegand Output
- Keypad Output: 4-Bit Burst, 8-Bit Burst, 26-Bit
- Operating Voltage: 5–12 VDC
- Dimensions: 4.6" x 3.1" x 0.88" (11.7 x 7.9 x 2.2 cm)
- LED Indicator: Programmable Red/Green
- Audio Feedback: Integrated Piezo Sounder
- Mounting Style: Single-Gang Electrical Box / Surface Mount
- Housing Color: Dark Gray
- Certifications: FCC, Industry Canada, CE, RoHS Compliant
What's Included
- AWID KP-6840 Keypad Proximity Reader
- Installation Documentation
