Description

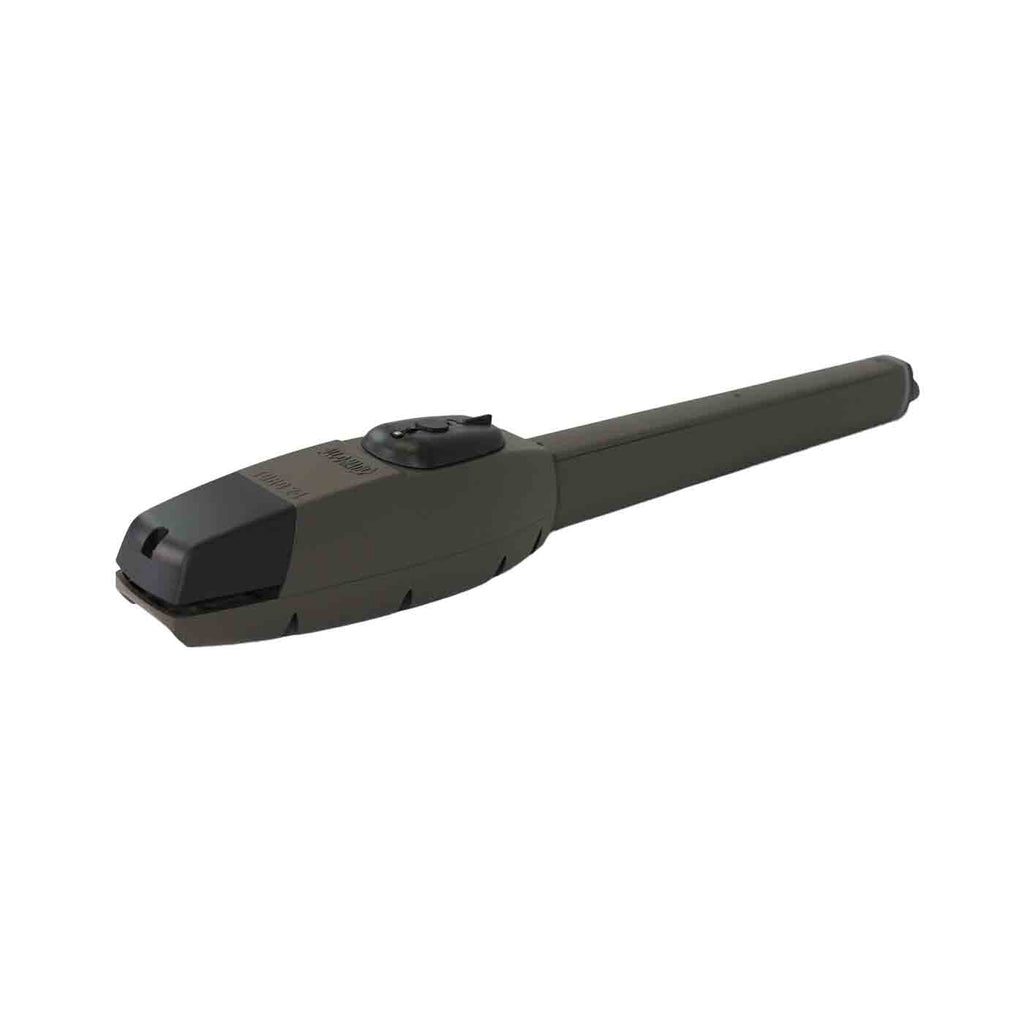

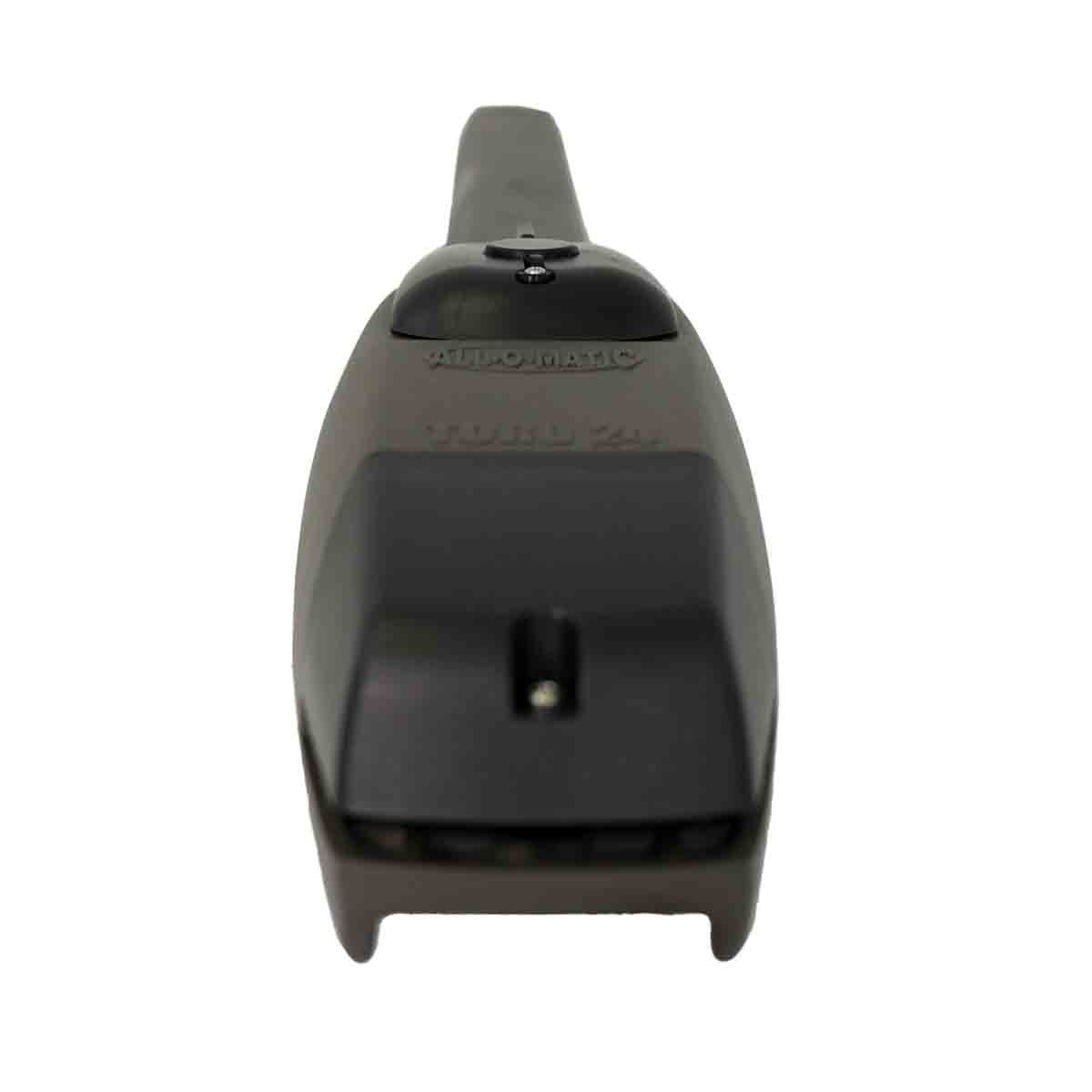

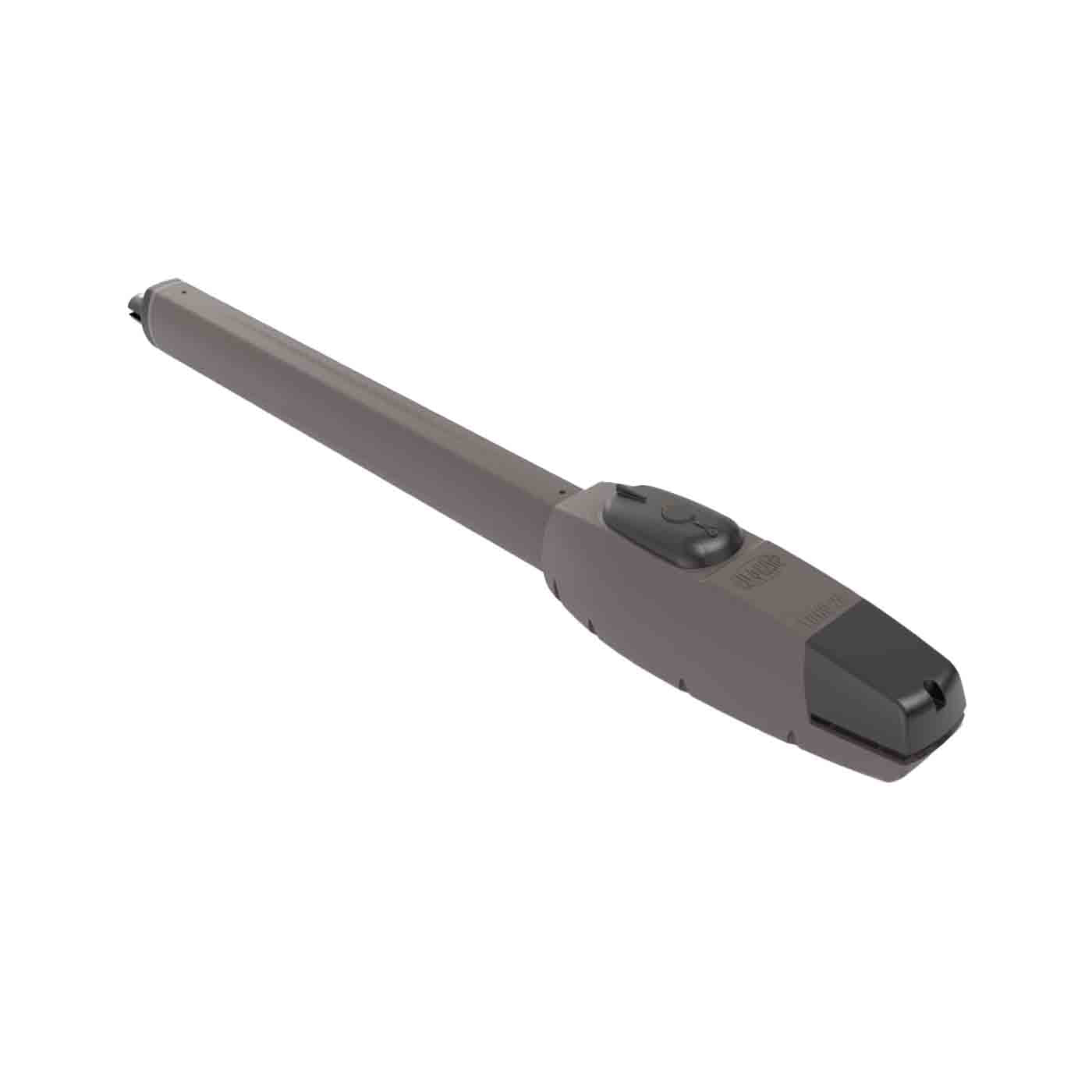

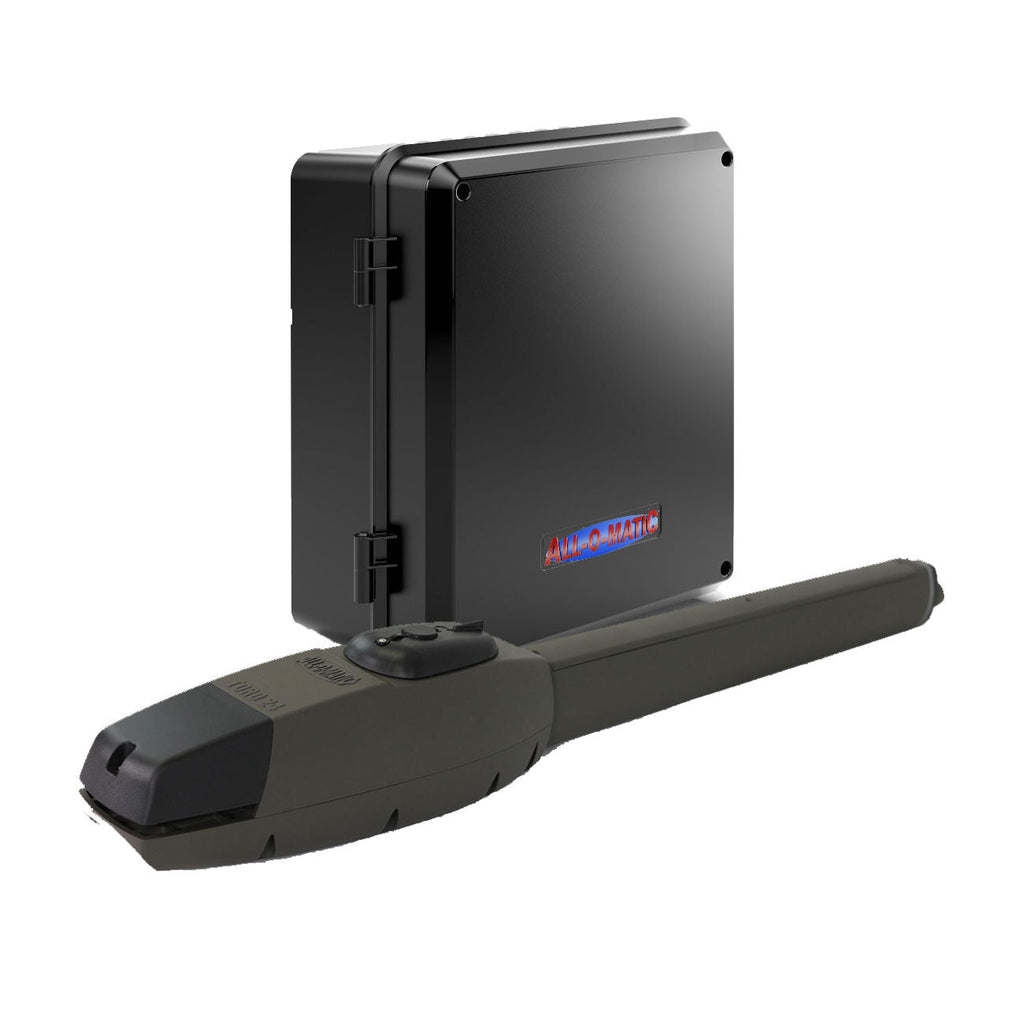

The All-O-Matic TORO24 Single Swing Gate Operator is a powerful and versatile linear actuator system designed for residential and light commercial swing gate applications. Featuring a modern low-profile actuator design, integrated battery backup, and solar-ready technology, the TORO24 delivers dependable gate automation with smooth, quiet operation and advanced control capabilities.
Designed to support gates up to 18 feet and 600 lbs. or up to 12 feet and 1,200 lbs., the TORO24 provides flexibility for a wide range of swing gate installations. The advanced control board includes programmable operating logic and an integrated solar charge controller, supporting both 12V and 24V solar panels up to 80 watts for off-grid and solar-assisted applications.
Integrated battery backup ensures continued operation during power outages, while the keyed manual release allows secure emergency access when needed. The TORO24 is an ideal solution for residential driveways, private entrances, farms, ranches, and light commercial properties seeking reliable automated gate access.
Key Features
- Linear actuator swing gate operator
- Supports gates up to 18 ft. and 600 lbs.
- Supports gates up to 12 ft. and 1,200 lbs.
- Integrated battery backup system
- Solar compatible with 12V and 24V solar panels
- Advanced programmable control board
- Built-in solar charge controller
- Continuous-duty operation

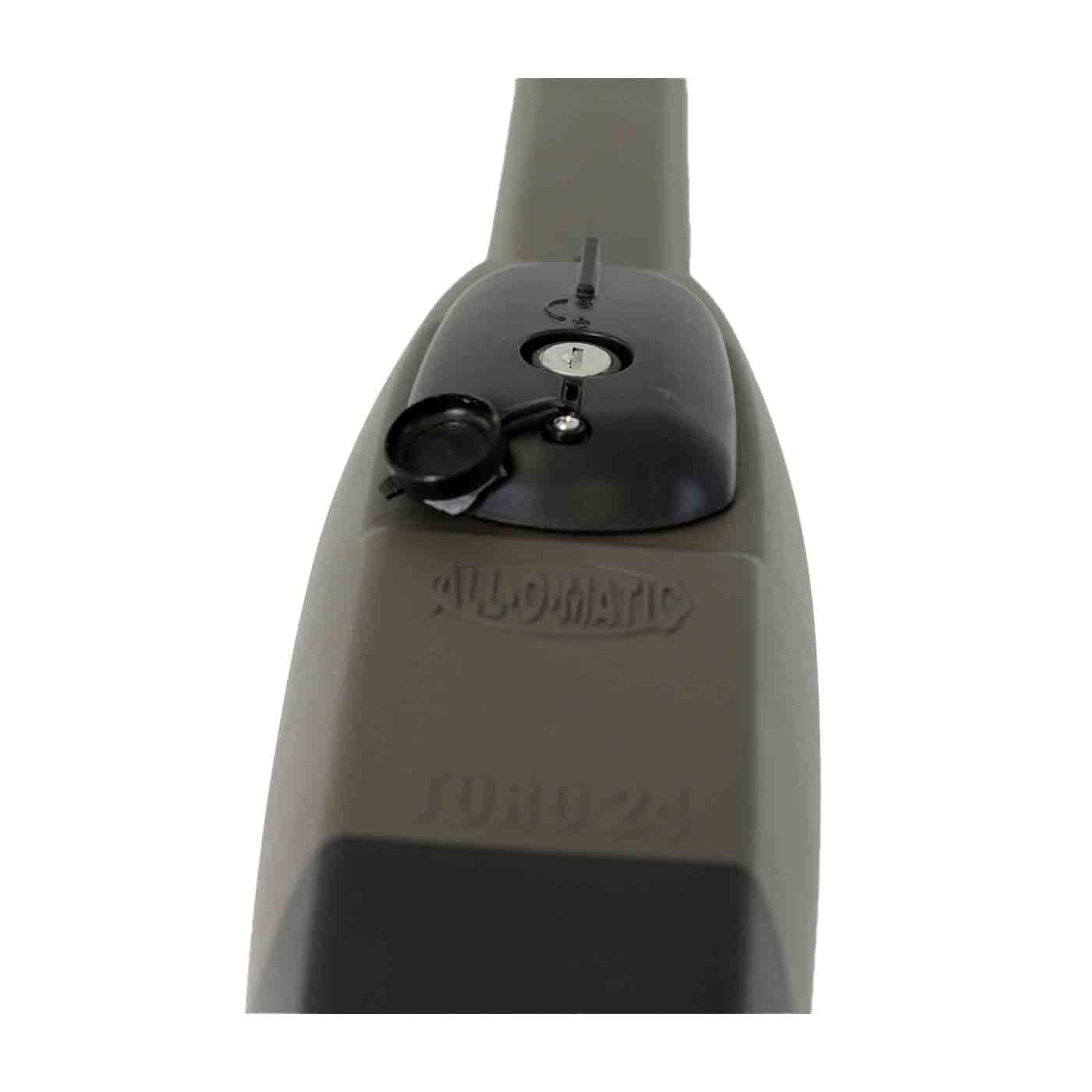

- Keyed manual release for emergency access
- UL 325 Compliant
- Ideal for residential and light commercial applications
Specifications
- Maximum Gate Length: 18 ft. (600 lb. gate)
- Maximum Gate Weight: 1,200 lbs. (12 ft. gate)
- Opening Speed: Adjustable 15–20 Seconds per 90° Opening
- Power Input: 115/230 VAC Single Phase
- Solar Compatible: Yes (12V/24V Solar up to 80 Watts)
- Duty Cycle: Continuous
- Battery Backup: Integrated (2) 7Ah 12V Batteries
- Battery Backup Capacity: Up to 450 Cycles
- Temperature Range: -40°F to 160°F
- Retracted Arm Length: 38–39"
- Extended Arm Length: 59"
- Control Box Weight: 55 lbs.
- Actuator Weight: 25 lbs.
- Emergency Release: Keyed Manual Release
Warranty
- 4-Year Residential Warranty
- 3-Year Commercial Warranty
Applications
- Residential driveway gates
- Estate entrances
- Farm and ranch gates
- Private road entrances
- HOA access points
- Light commercial properties
The All-O-Matic TORO24 Single Swing Gate Operator combines flexible gate capacity, battery backup protection, solar compatibility, and reliable linear actuator performance to provide long-lasting automated access control for residential and light commercial properties.
