Description

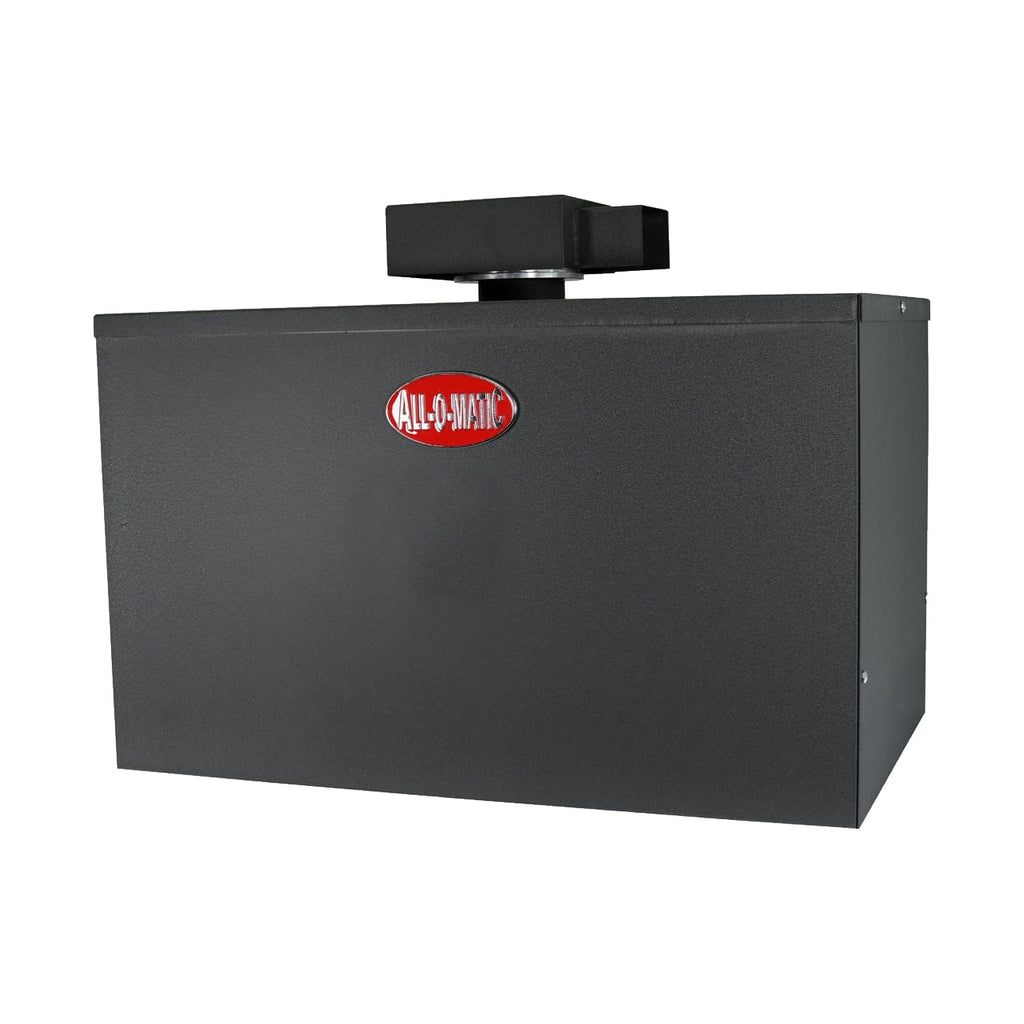

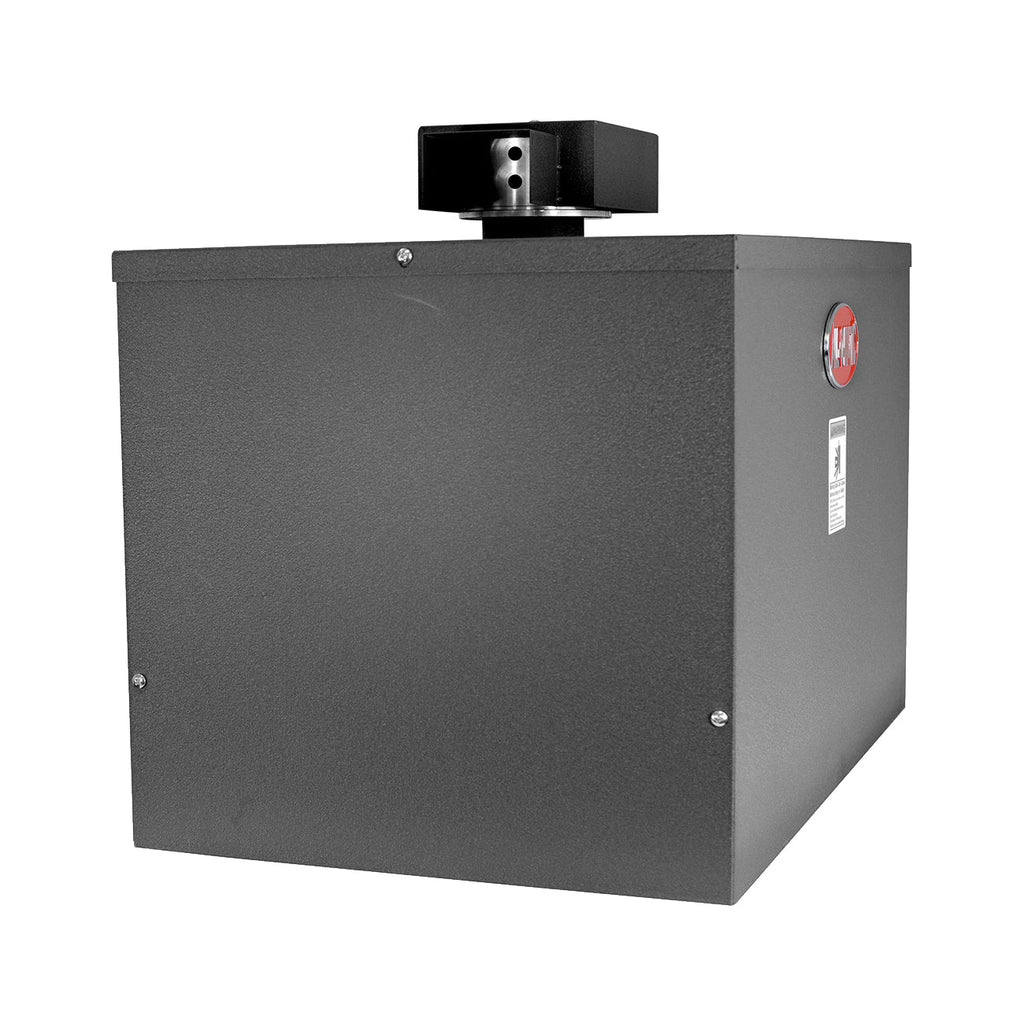

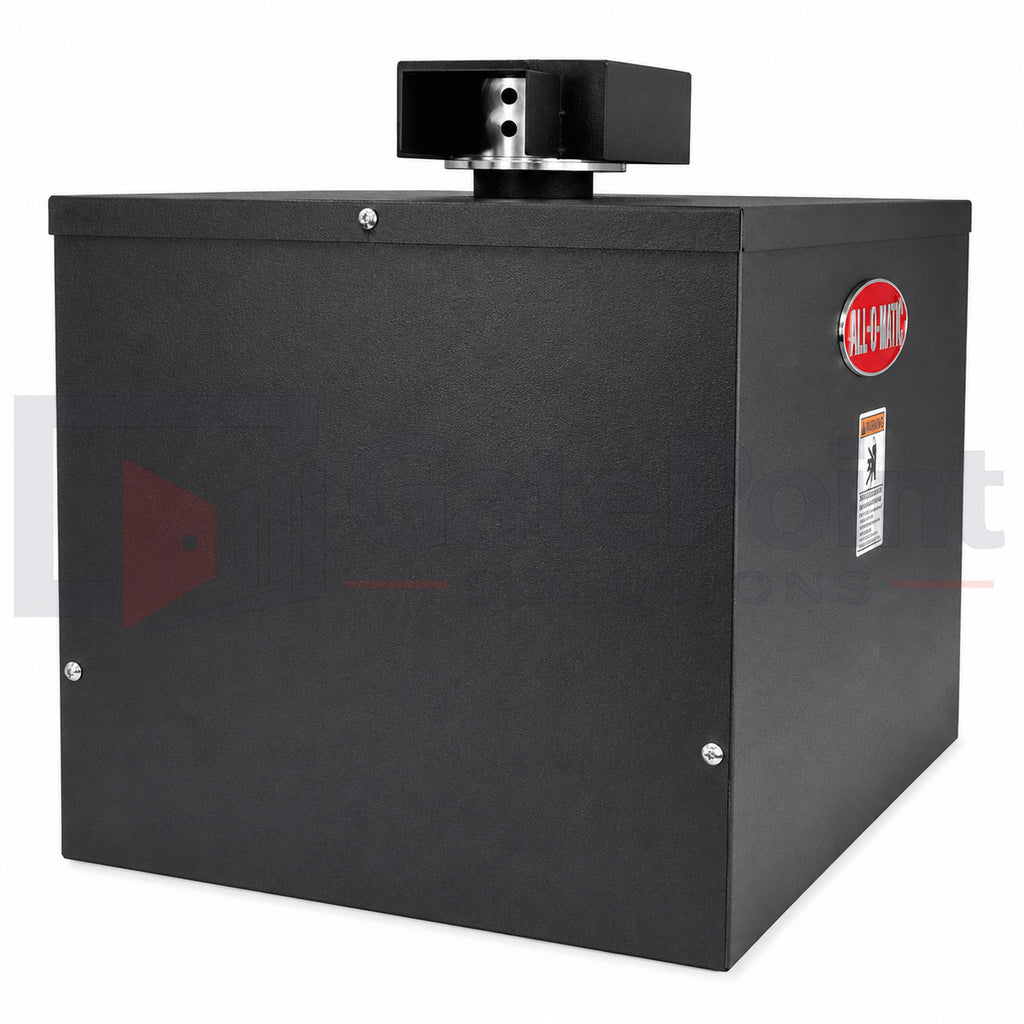

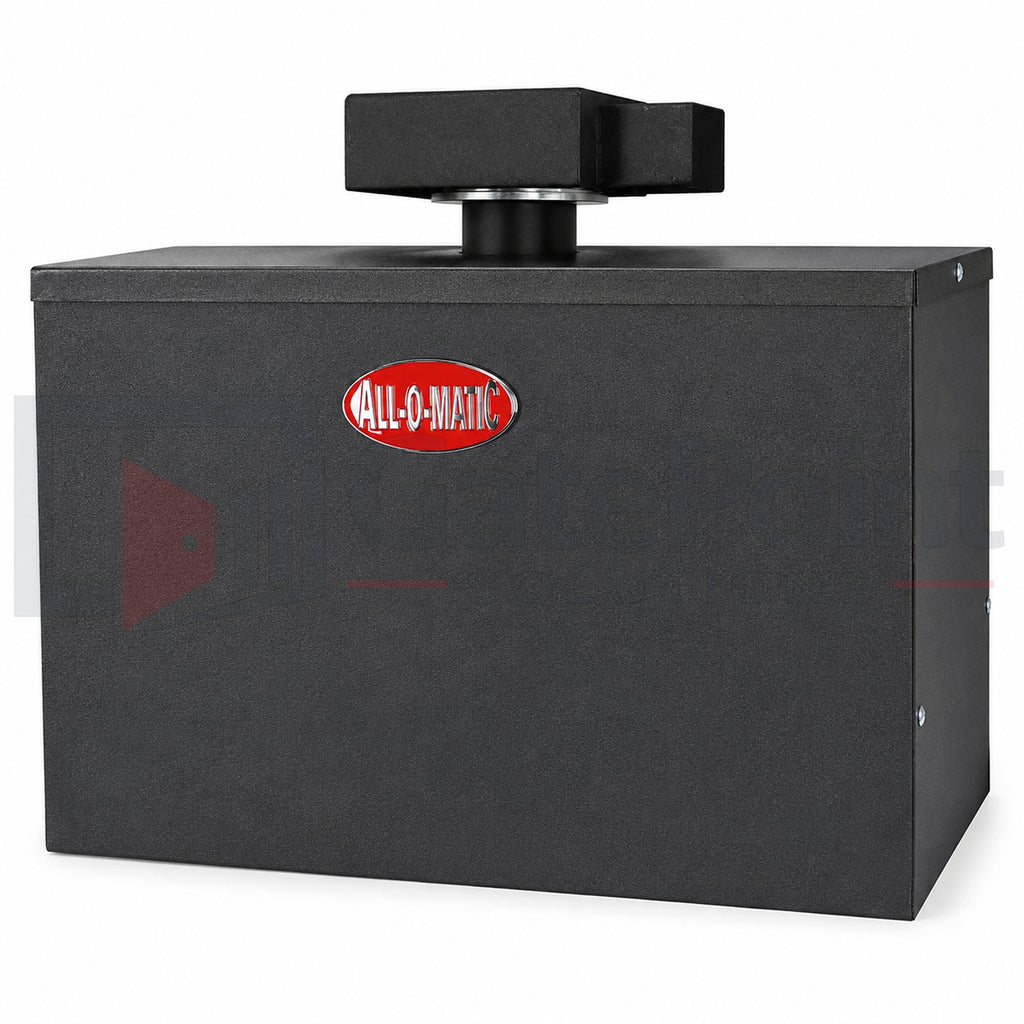

The All-O-Matic SW-375 DC PRO Industrial Swing Gate Operator is a heavy-duty commercial and industrial gate automation system engineered for the most demanding swing gate applications. Built with a reinforced high-strength steel frame, heavy-duty gearbox, and powerful 36VDC brushless motor, the SW-375 DC PRO delivers exceptional performance, reliability, and long-term durability for large and high-cycle gates.
Designed to automate swing gates up to 30 feet in length and weighing up to 5,000 pounds, this operator combines industrial-grade mechanical components with advanced brushless DC technology for smooth operation, soft start/stop functionality, reduced maintenance requirements, and increased operational efficiency.

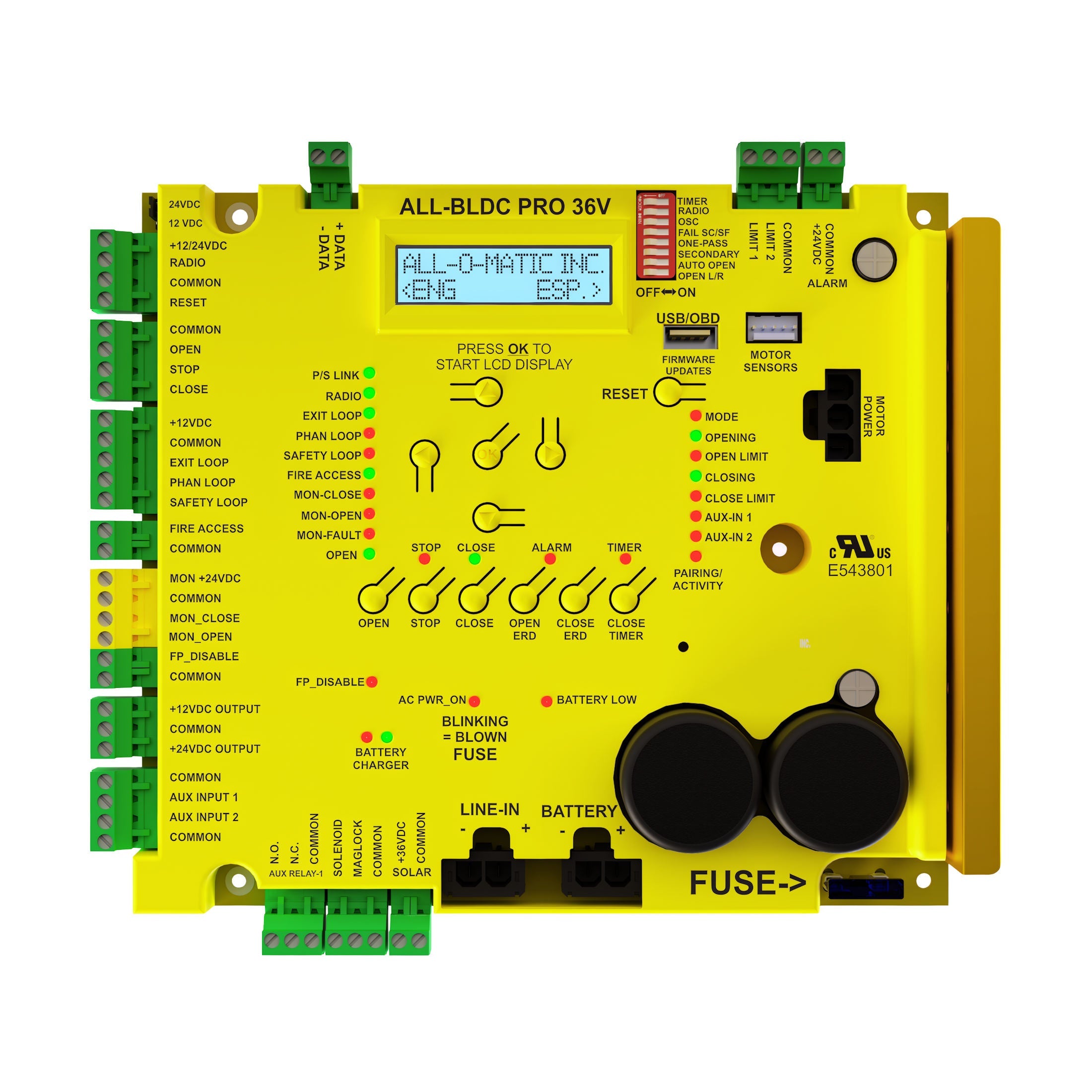

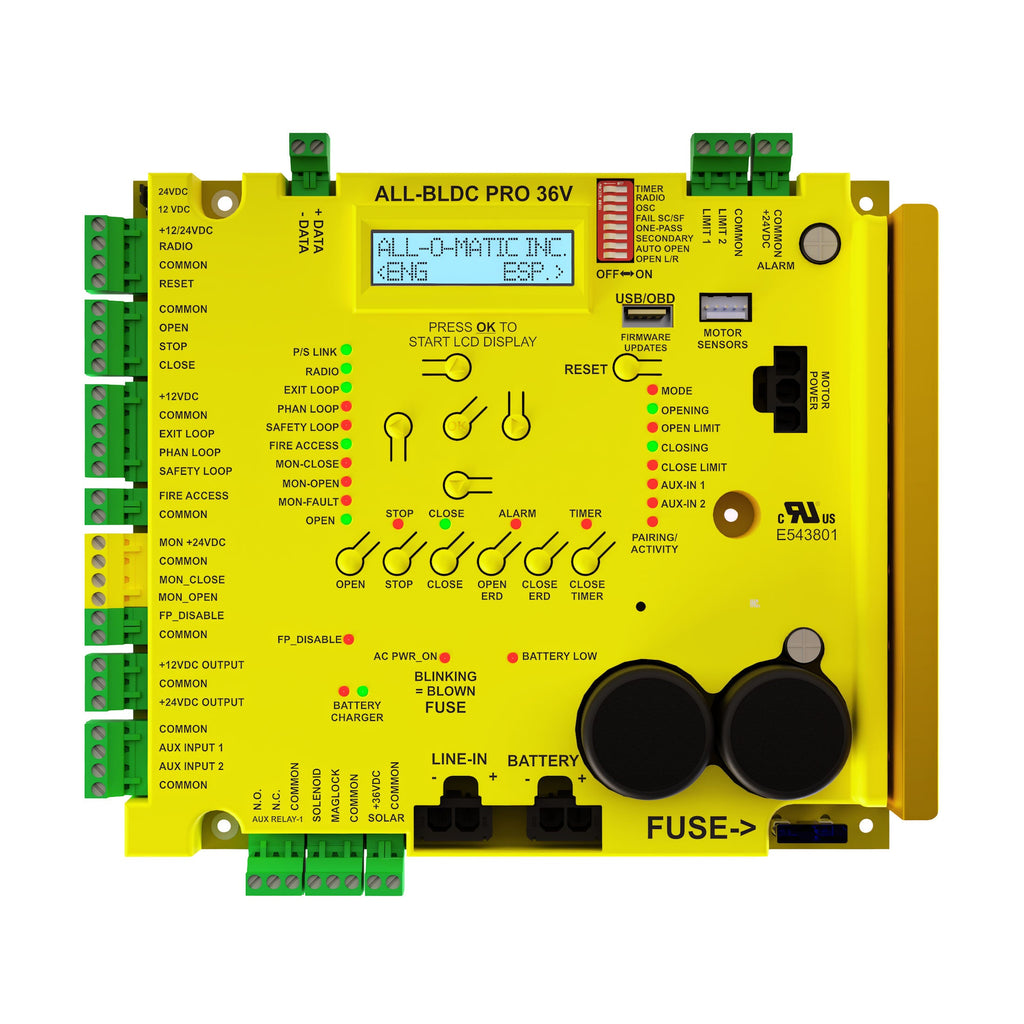

The advanced ALL-BLDC PRO control board provides programmable operating logic, integrated battery backup management, built-in loop rack functionality, and solar compatibility for versatile installation options. Integrated battery backup ensures continued operation during power outages, while continuous-duty performance makes the SW-375 DC PRO ideal for high-traffic commercial, industrial, and secured access facilities.
Key Features
- Heavy-duty industrial swing gate operator
- Supports gates up to 30 feet long
- Supports gates up to 5,000 lbs.
- Powerful 36VDC brushless motor
- Advanced ALL-BLDC PRO control board
- Soft start and soft stop operation
- Continuous-duty performance
- Integrated battery backup system
- Solar compatible operation
- Built-in loop rack functionality
- Heavy-duty industrial gearbox
- Reinforced steel frame construction
- UL 325 Compliant
- Designed for high-cycle commercial and industrial applications
Specifications
- Maximum Gate Weight: 5,000 lbs.
- Maximum Gate Length: 30 ft.
- Motor: 36VDC Brushless Motor
- Opening Speed: Adjustable 14–27 Seconds per 90° Opening
- Power Input: 115/230/480 VAC Single Phase
- Solar Compatible: 36VDC Solar Panel Compatible
- Duty Cycle: Continuous
- Battery Backup: Integrated (3) 14Ah 12VDC Batteries
- Battery Backup Capacity: Up to 300 Cycles on a 2,000 lb. Gate
- Temperature Range: -40°F to 160°F
- Gearbox Ratio: Large Gearbox 30:1 / Small Gearbox 10:1
- Dimensions: 19" W x 31" L x 25" H
- Shipping Weight: 435 lbs. + 110 lb. Arm and Wrench
- Emergency Release: 5/8" Bolt Arm Removal System
- Chain Size: 60NP
- Breaker Requirement: 20 Amp Dedicated Circuit
Warranty
- 3-Year Commercial Warranty
Ideal Applications
- Industrial facilities
- Manufacturing plants
- Distribution centers
- Logistics and trucking yards
- Government facilities
- Utility sites
- Airports and transportation hubs
- High-security commercial properties
- Large estate and ranch entrances
The All-O-Matic SW-375 DC PRO Industrial Swing Gate Operator combines massive gate capacity, advanced brushless DC technology, integrated battery backup, and continuous-duty reliability to provide dependable automated access control for the most demanding commercial and industrial gate systems.
