Description

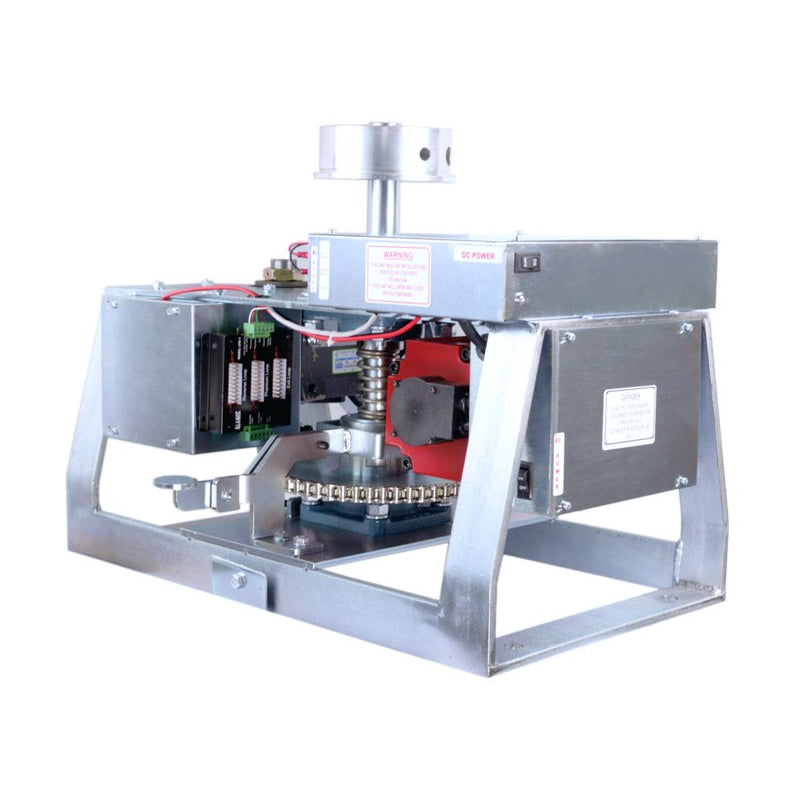

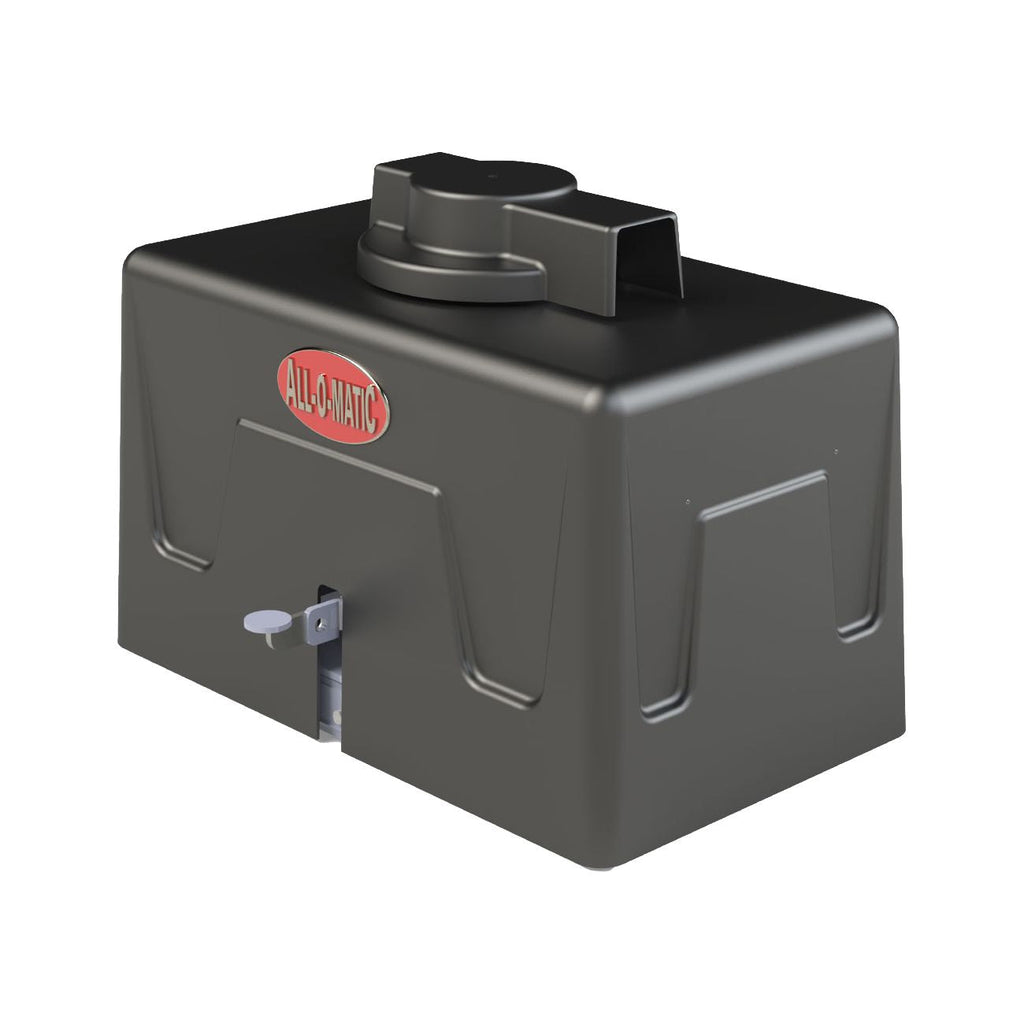

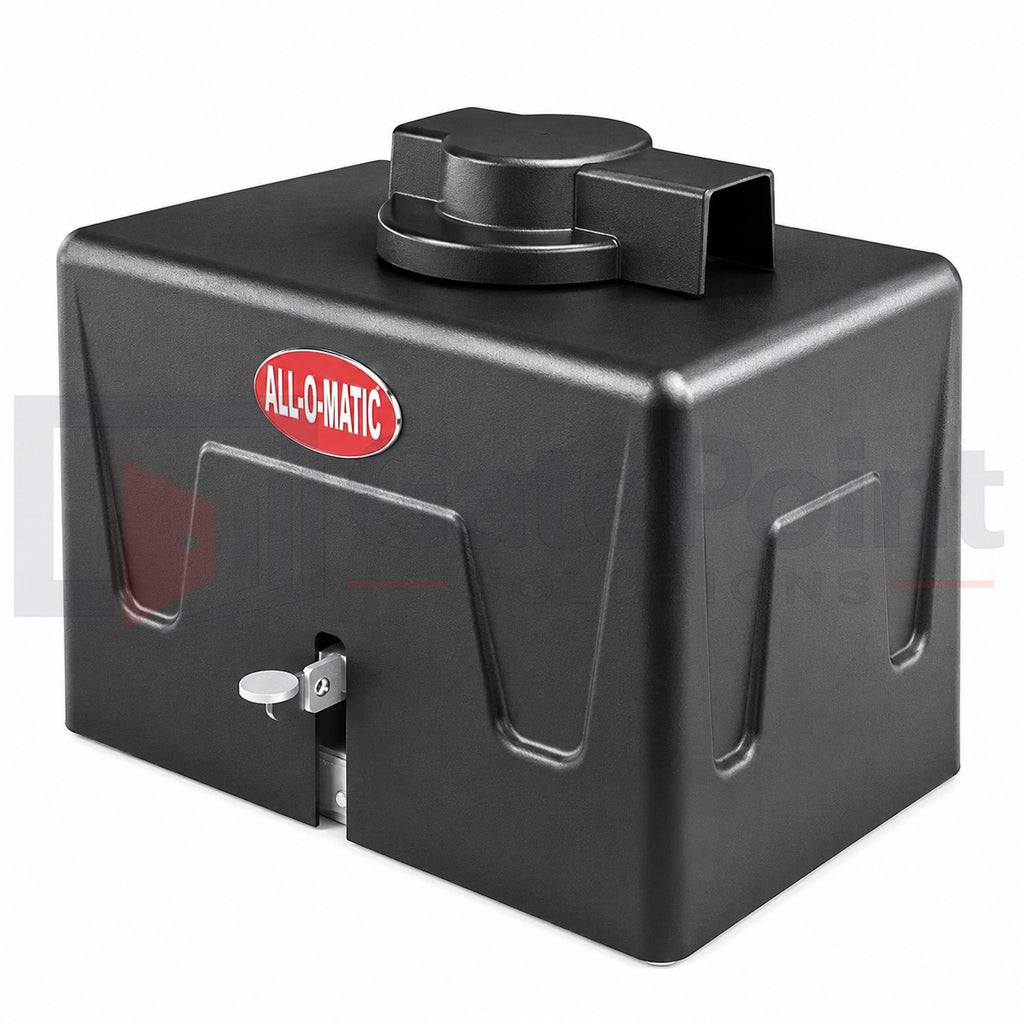

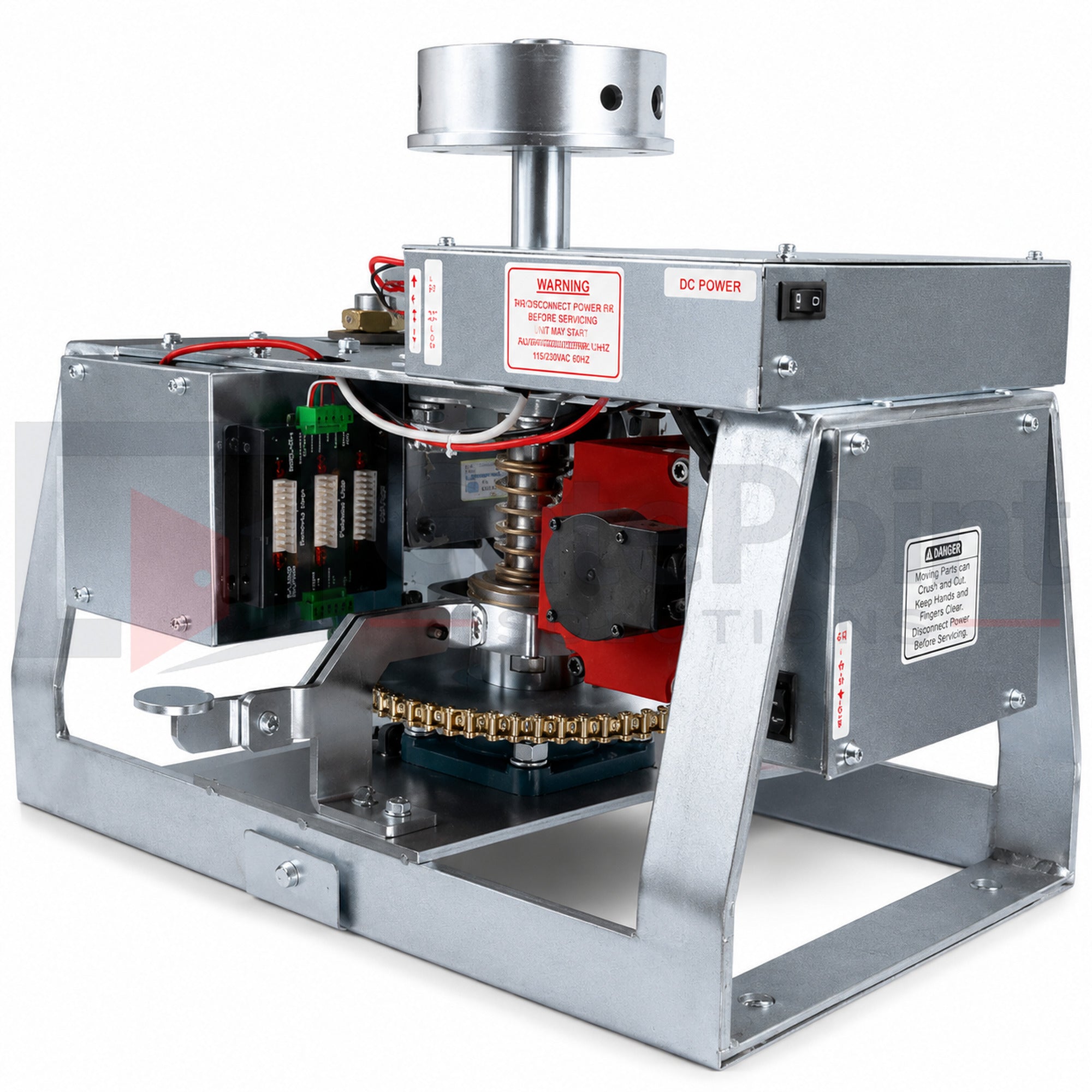

The All-O-Matic SW-350 DC PRO 1/2 HP Swing Gate Operator is engineered for demanding residential, commercial, and industrial applications where reliability, durability, and continuous-duty performance are essential. Featuring a powerful 24VDC brushless motor, heavy-duty gearbox, integrated battery backup, and solar-ready operation, the SW-350 DC PRO is built to handle large gates and high-cycle environments with ease.

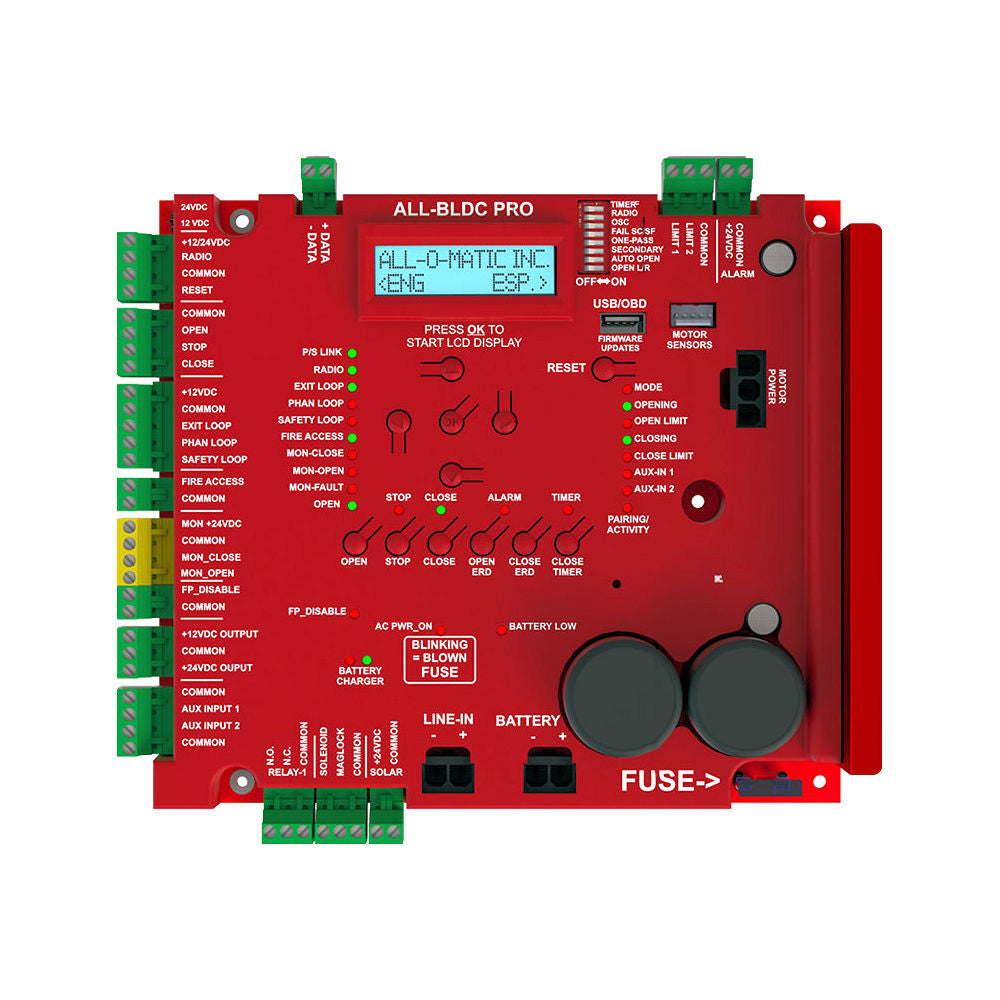

Designed for gates up to 2,000 lbs. and 22 feet in length, the SW-350 DC PRO combines smooth, quiet operation with exceptional power and durability. The advanced DC control board includes programmable relay functions, leaf delay settings, soft start/stop operation, and solar capability for maximum installation flexibility. Integrated battery backup provides continued operation during power outages, helping maintain secure access when utility power is unavailable.
The heavy-duty, low-profile design is ideal for commercial properties, industrial facilities, gated communities, apartment complexes, and other high-traffic applications requiring dependable automated gate control.
Key Features
- Heavy-duty 1/2 HP brushless DC motor
- Handles gates up to 2,000 lbs.
- Supports gate lengths up to 22 ft.
- Continuous-duty operation
- Integrated battery backup system
- Solar compatible
- Soft start and soft stop functionality
- Programmable relay and leaf delay features
- Quiet, low-maintenance brushless motor design
- Built-in loop rack

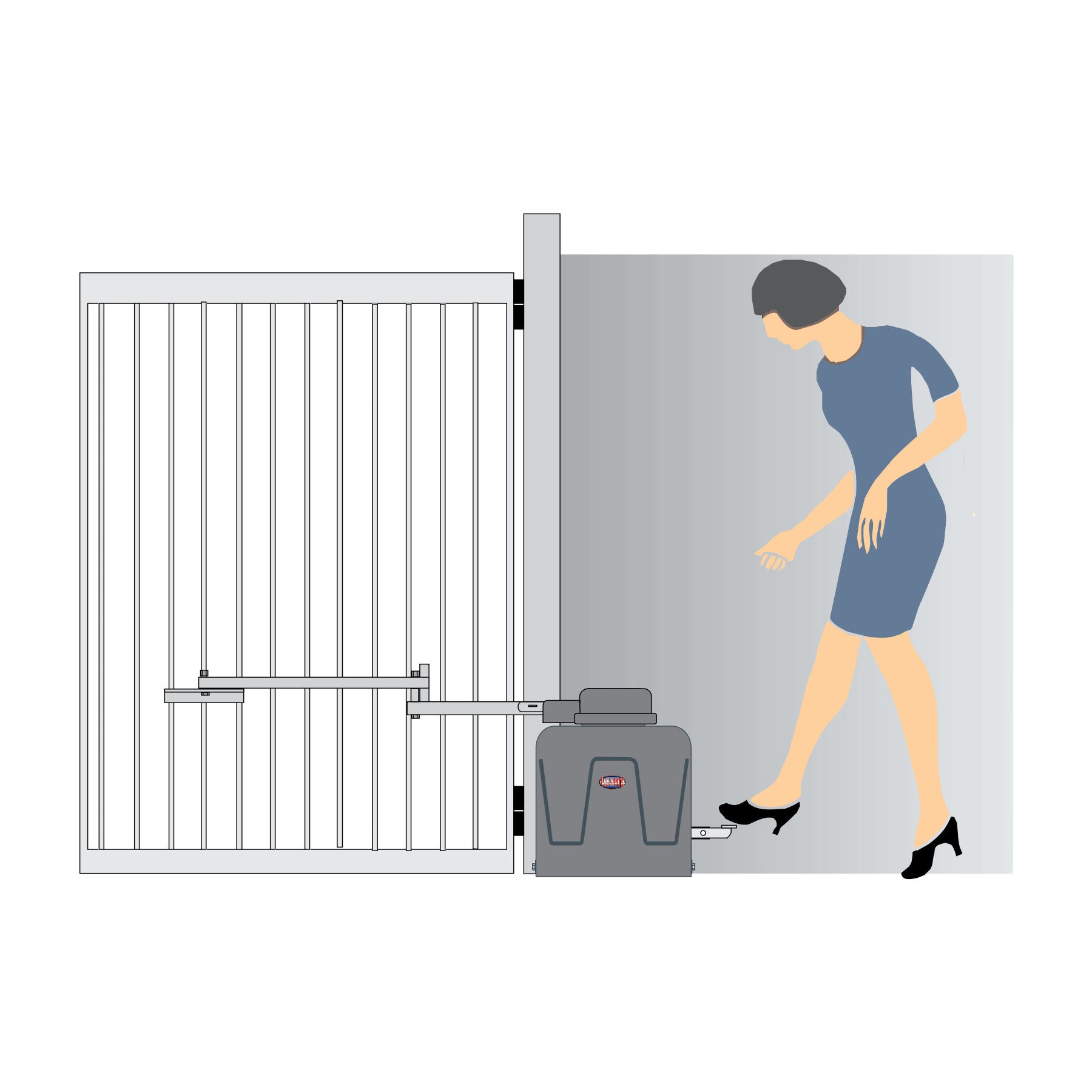

- Mechanical foot pedal emergency release
- UL 325 Compliant
Specifications
- Motor: 24VDC Brushless 1/2 HP
- Maximum Gate Weight: 2,000 lbs.
- Maximum Gate Length: 22 ft.
- Opening Speed: Adjustable 17–25 Seconds per 90° Opening
- Power Input: 115/230 VAC Single Phase
- Solar Compatible: Yes (24VDC Solar)
- Duty Cycle: Continuous
- Battery Backup: Integrated (2) 7Ah 12V Batteries
- Battery Capacity: Up to 250 Cycles
- Temperature Range: -40°F to 160°F
- Gearbox Ratio: 60:1 with Internal Clutch
- Dimensions: 14" W x 24" L x 18" H
Warranty
- 7-Year Residential Warranty
- 5-Year Commercial Warranty
Applications
- Commercial properties
- Industrial facilities
- Apartment complexes
- Gated communities
- Storage facilities
- High-cycle access control systems
Built to perform in demanding environments, the All-O-Matic SW-350 DC PRO 1/2 HP Swing Gate Operator delivers powerful DC automation, battery backup protection, and long-term reliability for heavy-duty swing gate applications.
