Description

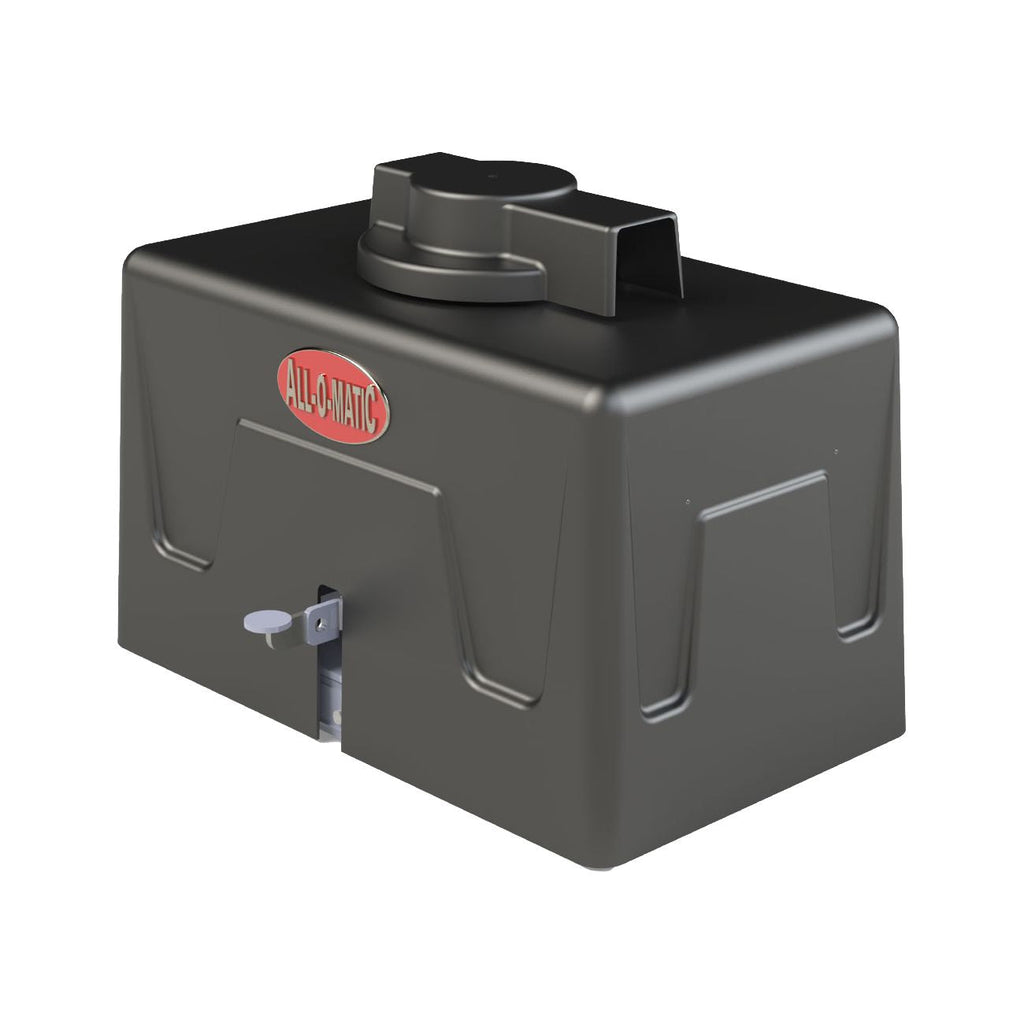

The All-O-Matic SW-350 DC PRO 1 HP Swing Gate Operator is a heavy-duty commercial gate automation system engineered for demanding applications requiring exceptional power, reliability, and continuous-duty performance. Designed for commercial, industrial, multi-family, and high-traffic access control environments, the SW-350 DC PRO combines rugged construction with advanced brushless DC technology for smooth, dependable gate operation.
Featuring a powerful 1 HP brushless DC motor, the SW-350 DC PRO is capable of automating swing gates up to 22 feet in length and weighing up to 2,500 pounds. Its heavy-duty gearbox, low-profile design, and integrated battery backup system make it an ideal solution for large commercial entrances, industrial facilities, storage facilities, apartment communities, and other high-cycle applications.

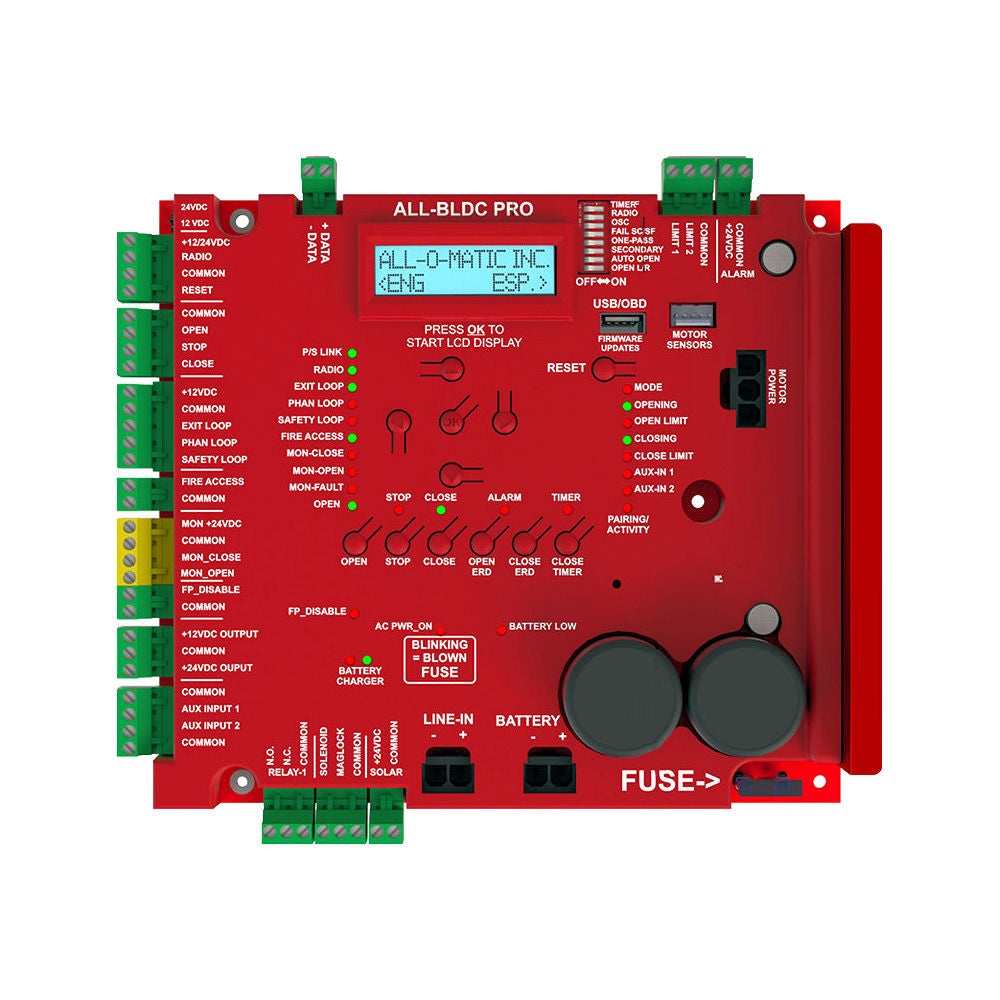

The advanced control board provides programmable operating logic, adjustable gate timing, leaf delay settings, soft start and stop functionality, and solar compatibility. Integrated battery backup delivers continued operation during power outages, helping maintain security and access when utility power is unavailable.
Built for reliability in harsh weather and demanding environments, the SW-350 DC PRO delivers the performance and durability professional gate installers expect from All-O-Matic.
Key Features
- Supports gates up to 22 feet long
- Supports gates up to 2,500 lbs.
- Powerful 1 HP brushless DC motor
- Heavy-duty commercial and industrial design
- Continuous-duty operation
- Integrated battery backup system
- Soft start and soft stop technology
- Programmable control board
- Adjustable opening and closing speeds
- Solar compatible
- Built-in loop rack

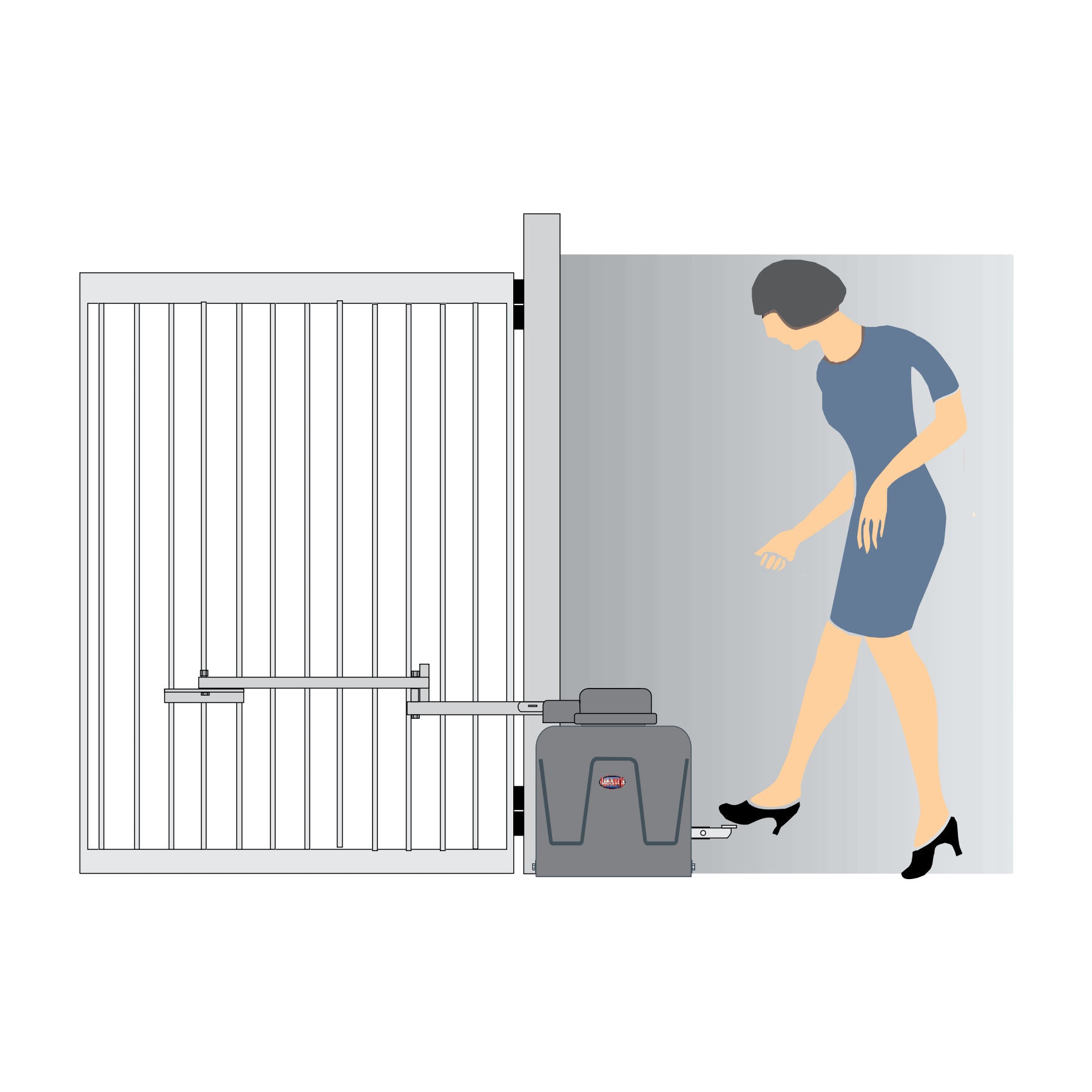

- Mechanical foot pedal emergency release

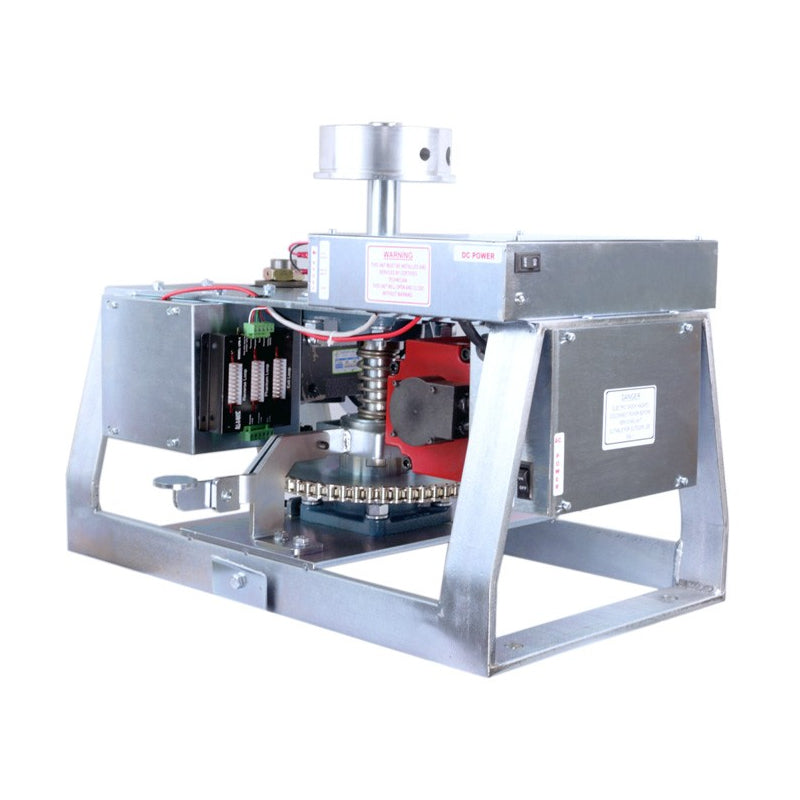

- Heavy-duty gearbox with internal clutch
- Quiet and maintenance-free brushless motor operation
- UL 325 Compliant
- Designed for high-cycle commercial applications
Specifications
- Maximum Gate Weight: 2,500 lbs.
- Maximum Gate Length: 22 ft.
- Motor: 24VDC Brushless 1 HP Motor
- Gate Speed: Adjustable 17–25 Seconds per 90° Opening
- Power Input: 115/230 VAC Single Phase
- Solar Compatible: 24VDC Solar Panel Compatible
- Duty Cycle: Continuous
- Battery Backup: Integrated with (2) 7Ah 12VDC Batteries
- Battery Backup Capacity: Up to 250 Cycles
- Temperature Range: -40°F to 160°F
- Gearbox Ratio: 60:1 with Internal Clutch

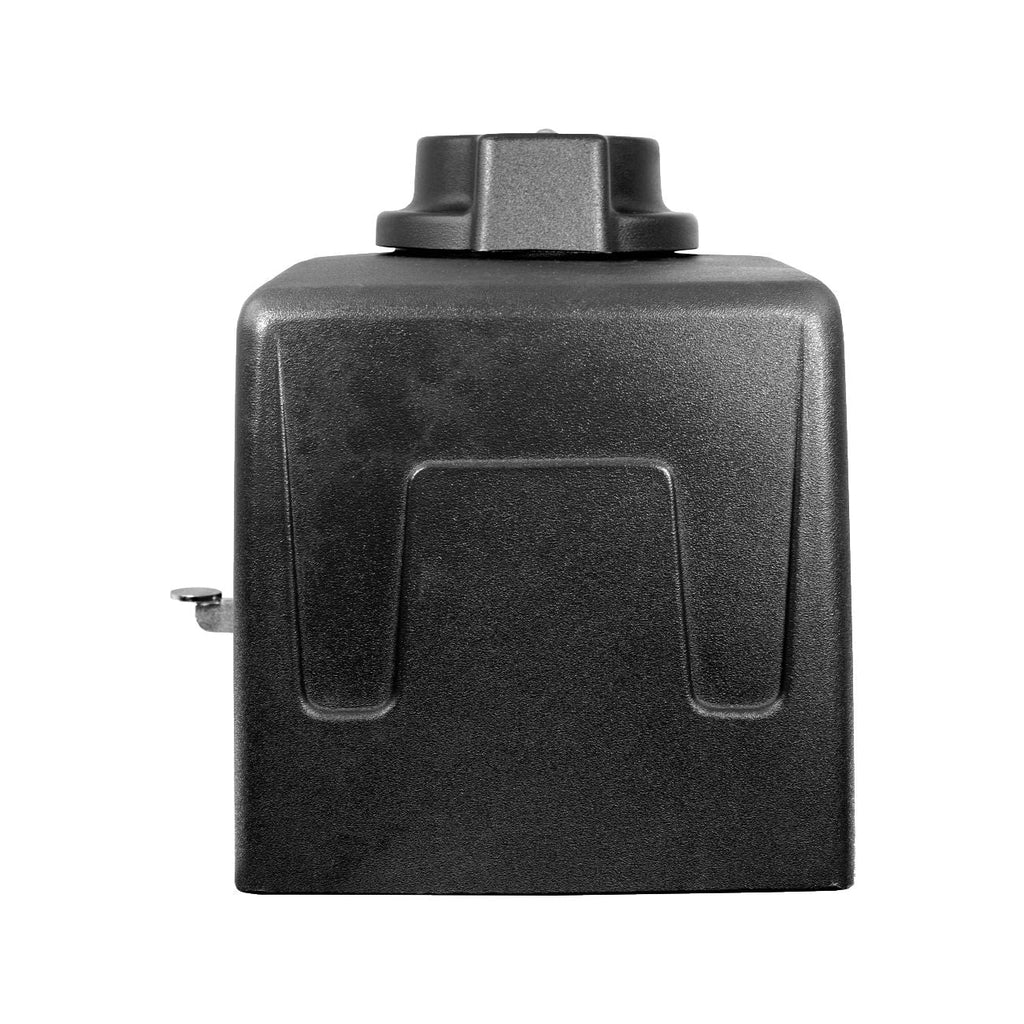

- Dimensions: 14" W x 24" L x 18" H

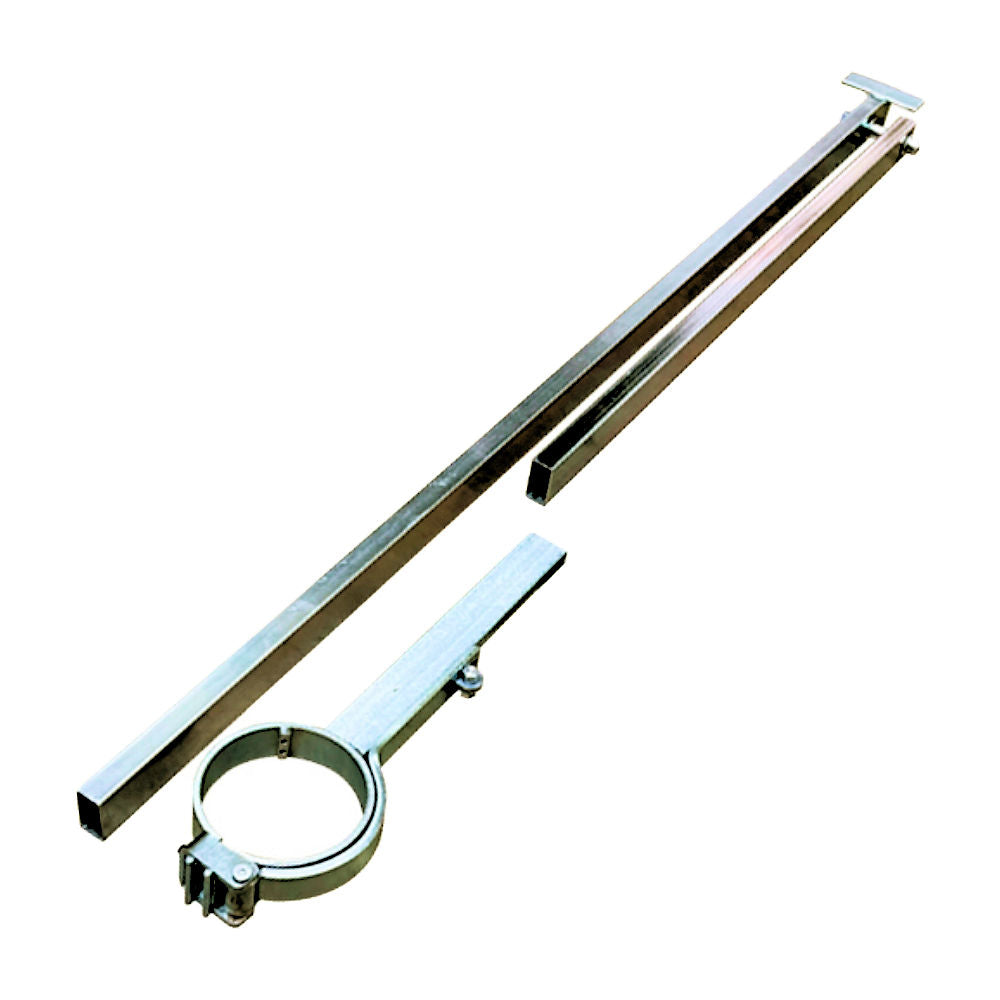

- Shipping Weight: 205 lbs. + 35 lb. Arm
- Emergency Release: Mechanical Foot Pedal Release
- Belt Size: 4L-360 (AX34)
- Main Sprocket Size: 40B54X1.25
- Chain Size: 40NP
- Breaker Requirement: 20 Amp Dedicated Circuit
Warranty
- 7-Year Residential Warranty
- 5-Year Commercial Warranty
Ideal Applications
- Industrial facilities
- Distribution centers
- Commercial properties
- Apartment complexes
- Storage facilities
- Gated communities
- Manufacturing plants
- Ranch and estate entrances
- Government and municipal facilities
- High-traffic access control points
The All-O-Matic SW-350 DC PRO 1 HP Commercial Swing Gate Operator delivers maximum power, continuous-duty performance, integrated battery backup, and professional-grade reliability for demanding commercial and industrial swing gate applications.
