Description

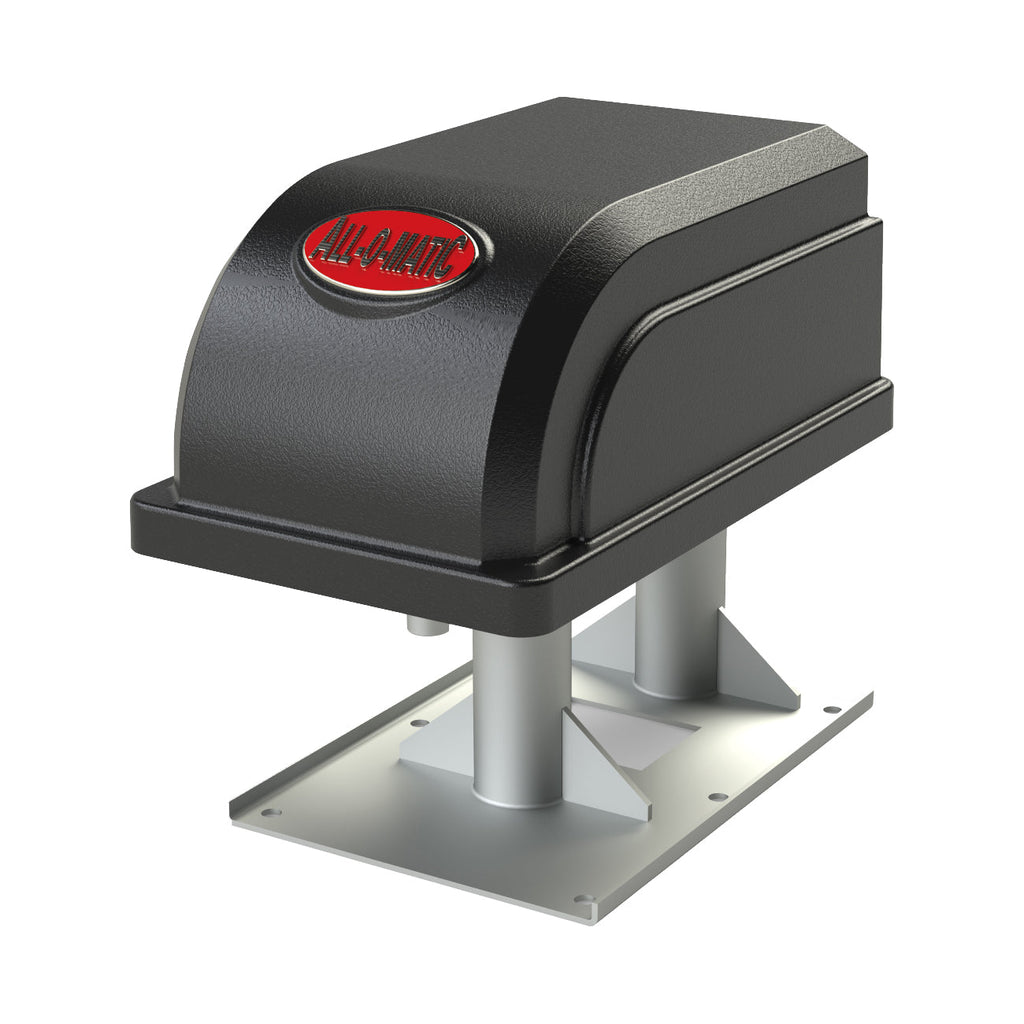

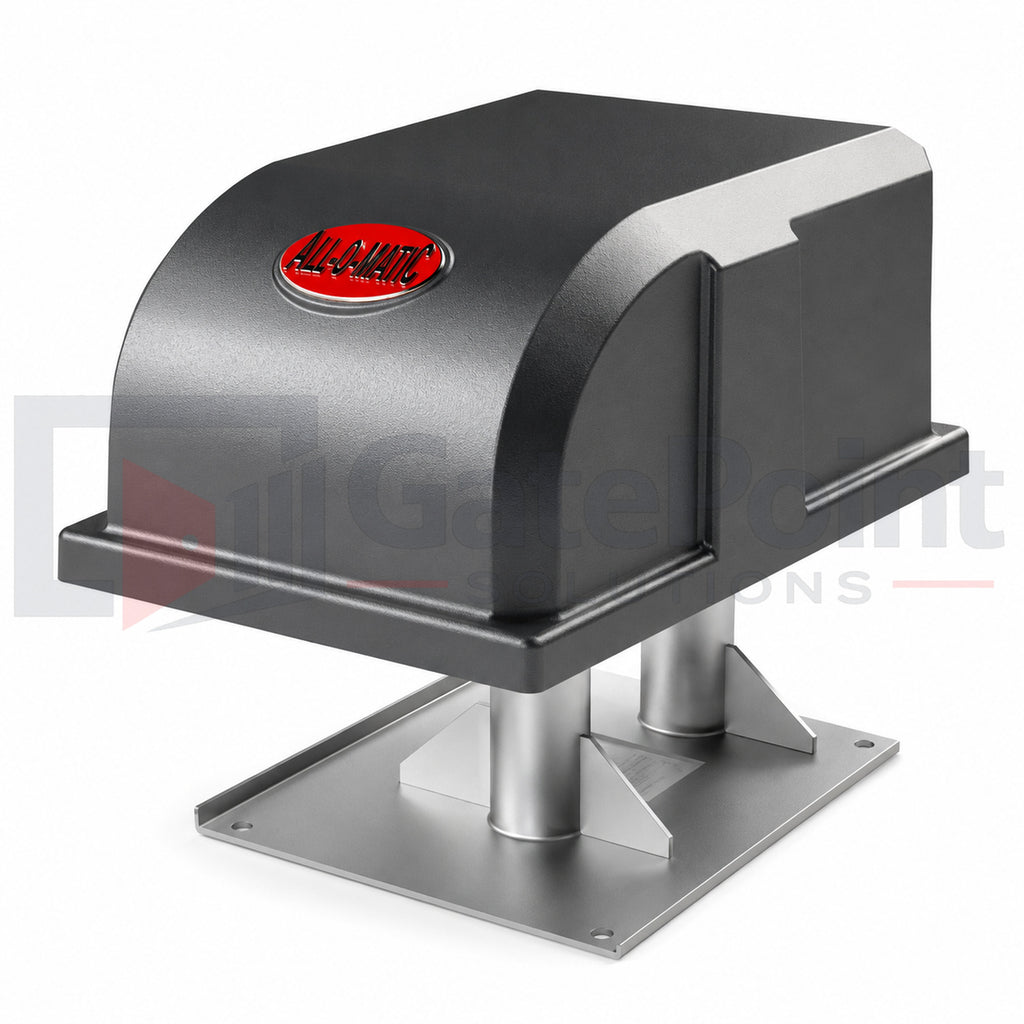

The All-O-Matic SW-325 DC PRO Swing Gate Operator is a heavy-duty commercial gate automation solution engineered for high-traffic residential communities, commercial properties, industrial facilities, and estate entrances. Featuring advanced brushless DC technology, integrated battery backup, and a rugged underarm drive system, the SW-325 DC PRO delivers reliable performance, quiet operation, and exceptional durability.
Designed to automate swing gates up to 22 feet in length and weighing up to 2,000 pounds, the SW-325 DC PRO utilizes an innovative underarm configuration that allows the gate bracket to mount beneath the gate, preserving the gate's appearance while maintaining powerful and efficient operation.

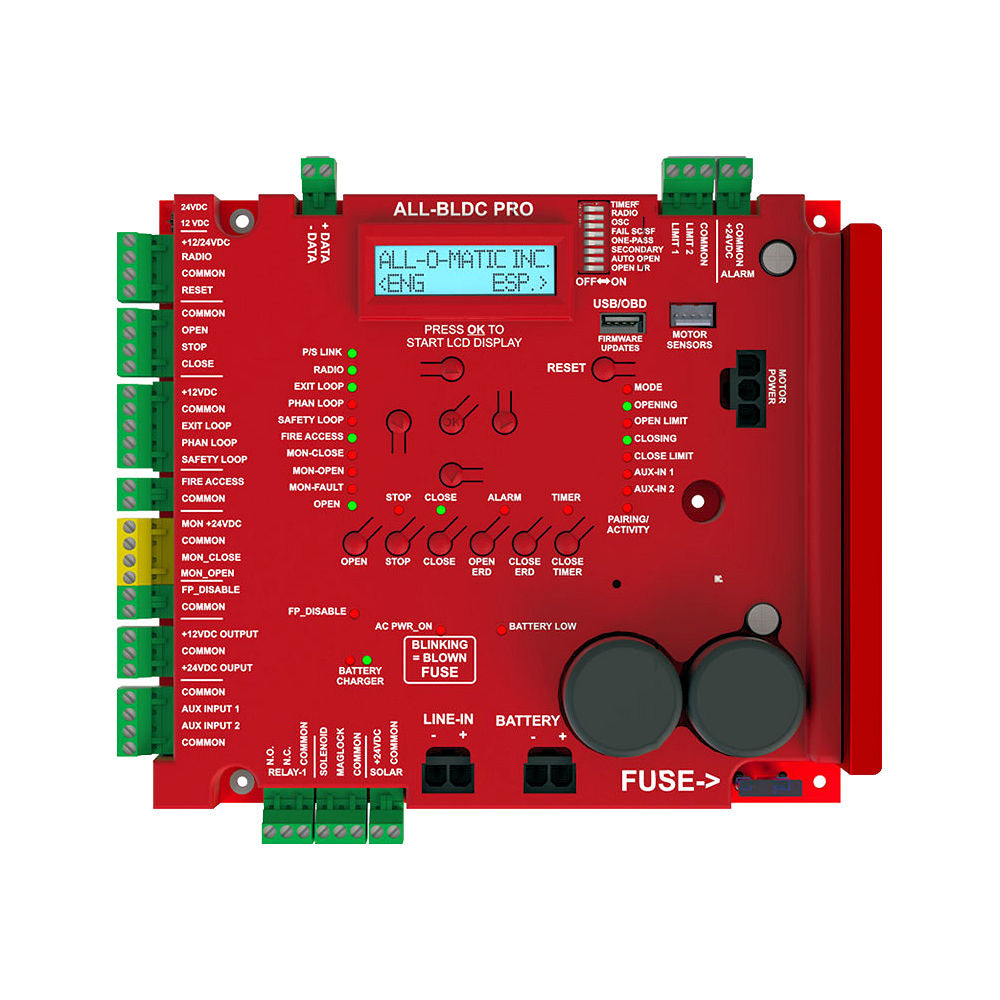

Powered by a maintenance-free 24VDC brushless motor and advanced control board technology, the operator provides programmable operating logic, adjustable gate timing, soft start and stop functionality, solar compatibility, and integrated battery backup. During power outages, the onboard battery system continues operation for uninterrupted access control and security.
Its continuous-duty design, easy-slide quick release arm, and flexible mounting options make the SW-325 DC PRO an excellent choice for demanding commercial and residential gate applications.
Key Features
- Supports gates up to 22 feet long
- Supports gates up to 2,000 lbs.
- Advanced 24VDC brushless motor
- Maintenance-free motor technology
- Underarm drive configuration preserves gate aesthetics
- Integrated battery backup system
- Soft start and soft stop operation
- Continuous-duty performance
- Solar compatible
- Programmable control board
- Adjustable opening and closing speeds

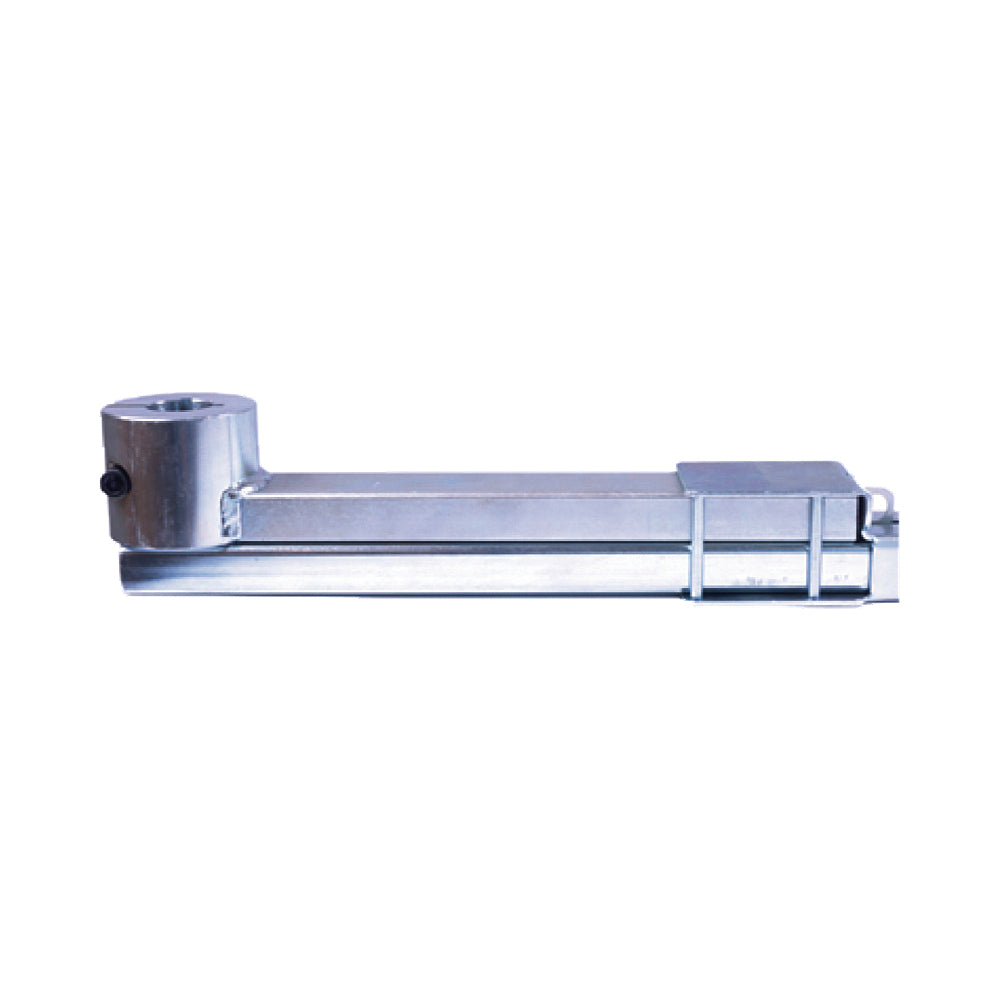

- Easy-slide quick release arm
- Pad mount or post mount installation options
- UL 325 Compliant
- Ideal for residential, commercial, and light industrial applications
Specifications
- Maximum Gate Weight: 2,000 lbs.
- Maximum Gate Length: 22 ft.
- Motor: 24VDC Brushless ½ HP Motor
- Gate Speed: Adjustable 14–25 Seconds per 90° Opening
- Power Input: 115/230 VAC Single Phase
- Solar Compatible: 24VDC Solar Panel Compatible
- Duty Cycle: Continuous
- Battery Backup: Integrated with (2) 7Ah 12VDC Batteries
- Battery Backup Capacity: Up to 250 Cycles
- Temperature Range: -40°F to 160°F
- Gearbox Ratio: 750:1 with Internal Clutch
- Dimensions: 19" W x 25.5" L x 21" H
- Shipping Weight: 160 lbs. + 30 lb. Arm
- Emergency Release: Easy-Slide Quick Release Arm
- Breaker Requirement: 20 Amp Dedicated Circuit
Warranty
- 7-Year Residential Warranty
- 5-Year Commercial Warranty
Ideal Applications
- Gated communities
- Commercial office properties
- Industrial facilities
- Apartment complexes
- Storage facilities
- Ranch and estate entrances
- Schools and campuses
- Government facilities
- High-traffic access control systems
The All-O-Matic SW-325 DC PRO Commercial Swing Gate Operator combines powerful brushless DC performance, integrated battery backup, quiet operation, and commercial-grade durability to provide dependable automated gate control for demanding residential and commercial environments.
