Description

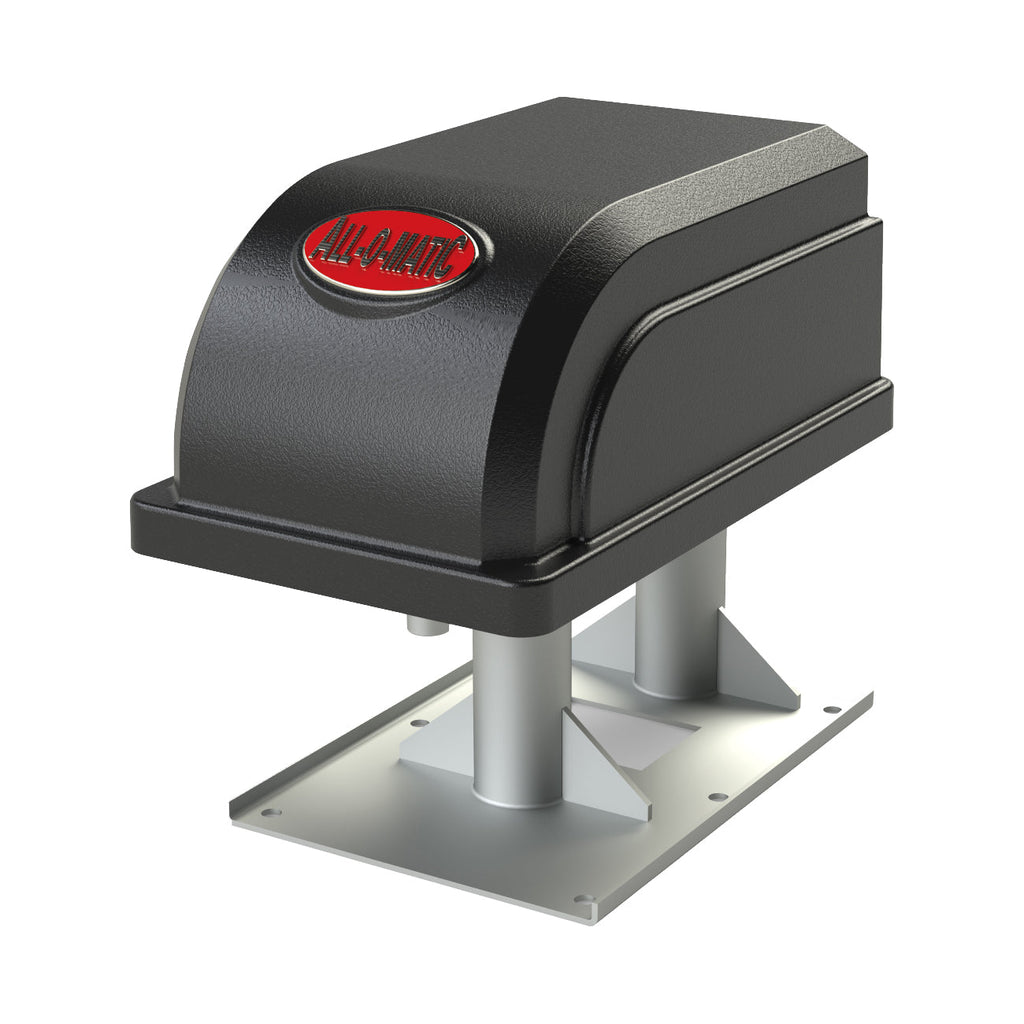

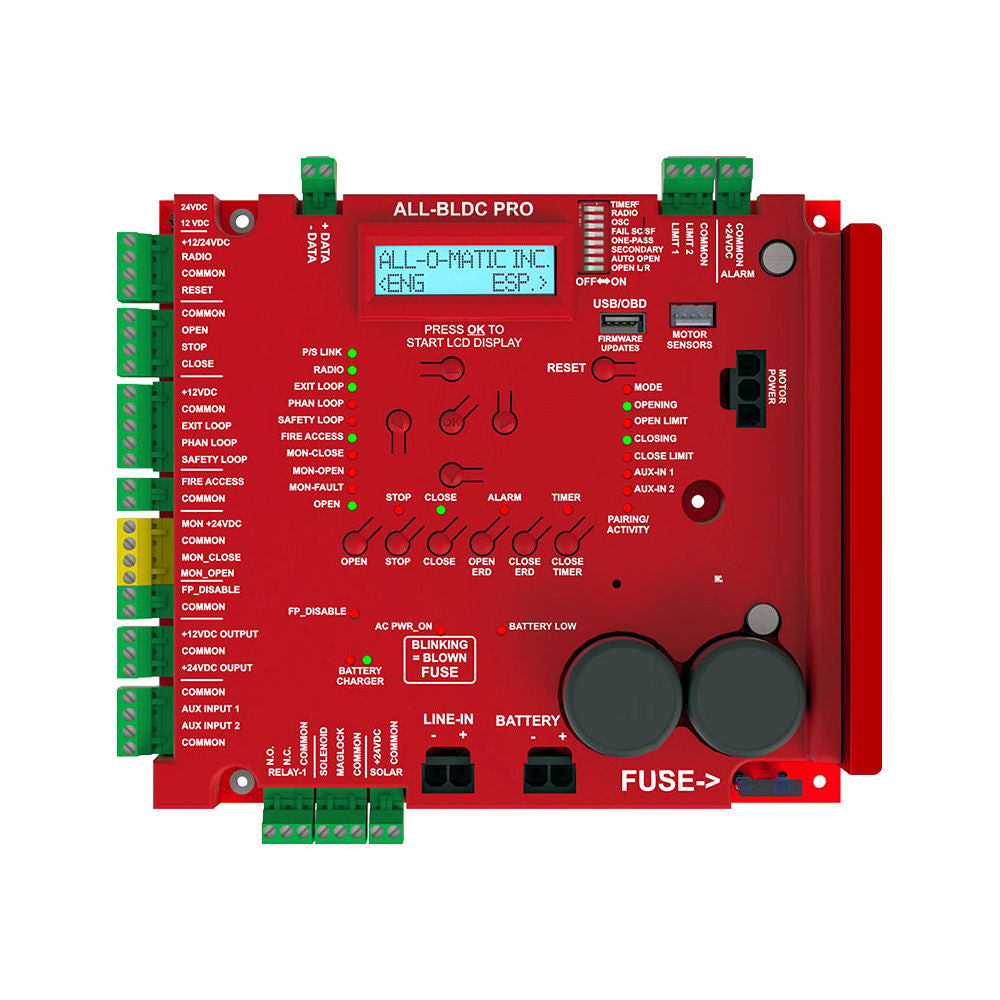

The All-O-Matic SW-320DC PRO Swing Gate Operator is designed for residential and light commercial applications requiring dependable performance, battery backup protection, and smooth gate operation. Featuring a powerful 24VDC brushless motor, advanced control board technology, and solar compatibility, the SW-320DC PRO delivers reliable access control for a wide range of swing gate installations.
Capable of automating gates up to 700 lbs. and 14 feet in length, this operator provides quiet operation, soft start/stop functionality, and integrated battery backup for continued performance during power outages. The low-profile underarm design helps maintain the appearance of decorative gates while providing years of dependable service.
Key Features
- Supports gates up to 700 lbs.
- Maximum gate length of 14 feet
- 24VDC brushless gearhead motor
- Integrated battery backup with dual 12V batteries
- Solar compatible
- Adjustable opening speed
- Soft start and soft stop operation

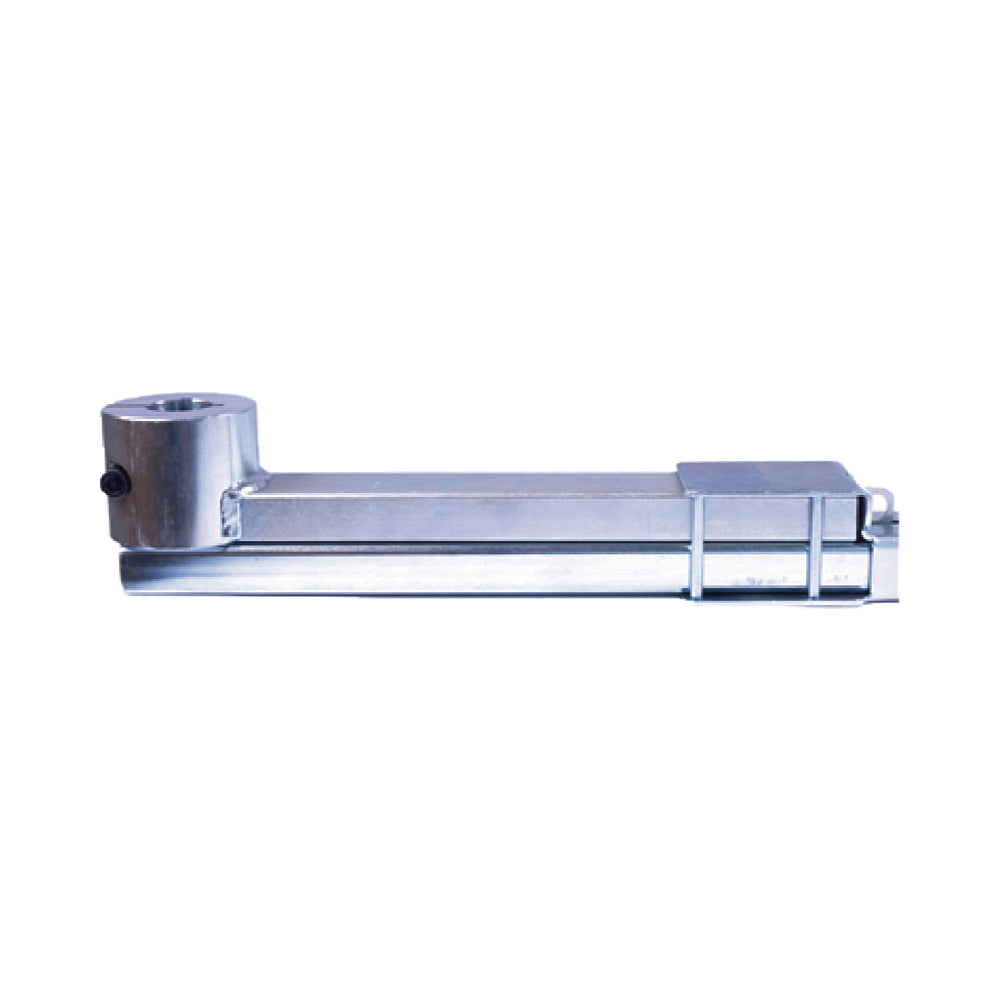

- Easy slide quick-release arm
- Quiet, smooth operation with minimal maintenance
- UL 325 Compliant
Specifications
- Maximum Gate Weight: 700 lbs.
- Maximum Gate Length: 14 ft.
- Motor: 24VDC Gearhead Motor
- Power Input: 115/230 VAC Single Phase
- Battery Backup: Integrated (2) 7Ah 12V Batteries
- Battery Capacity: Up to 250 cycles
- Duty Cycle: 30 Minutes
- Temperature Range: -40°F to 160°F
- Dimensions: 14" W x 25.5" L x 20" H
Warranty
- 5-Year Residential Warranty
- 3-Year Light Commercial Warranty
Important Installation Note
This operator is available to be both Pad Mount and Post Mount configurations. Mounting hardware and installation requirements vary depending on the application. Please verify the mounting style required for your gate before installation.
Applications
- Residential driveway gates
- Estate entrances
- HOA and community gates
- Farms and ranches
- Light commercial properties
The All-O-Matic SW-320DC PRO provides dependable DC-powered automation with integrated battery backup and solar-ready operation, making it an excellent solution for residential and light commercial swing gate systems.
