Description

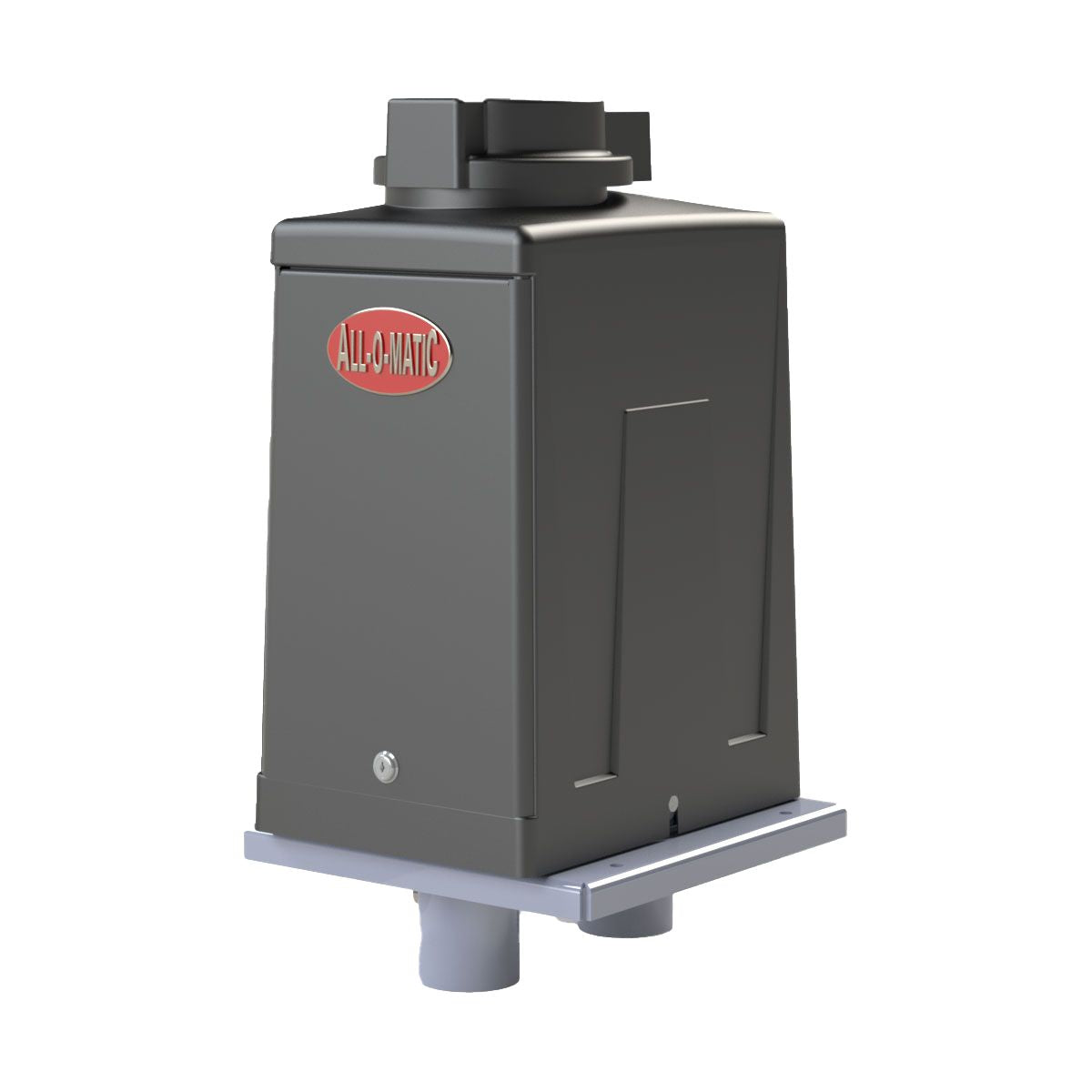

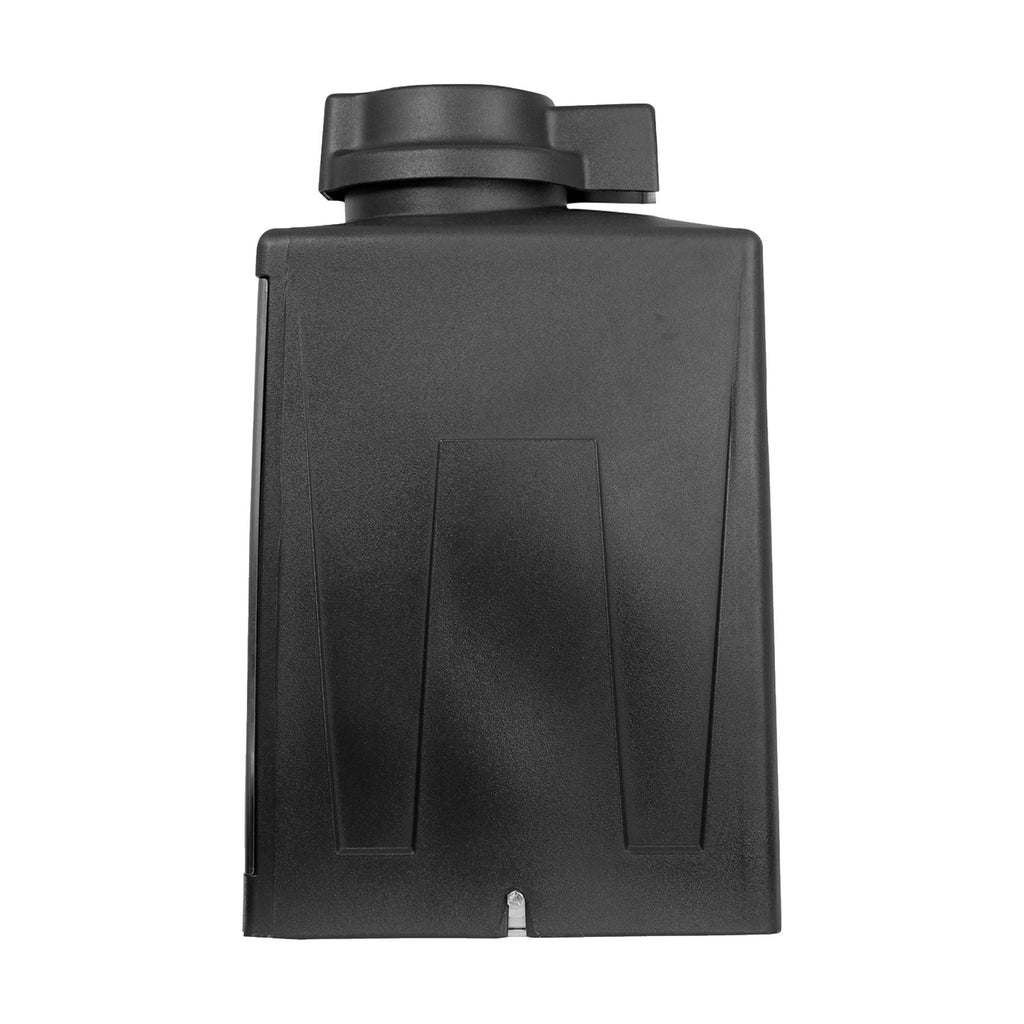

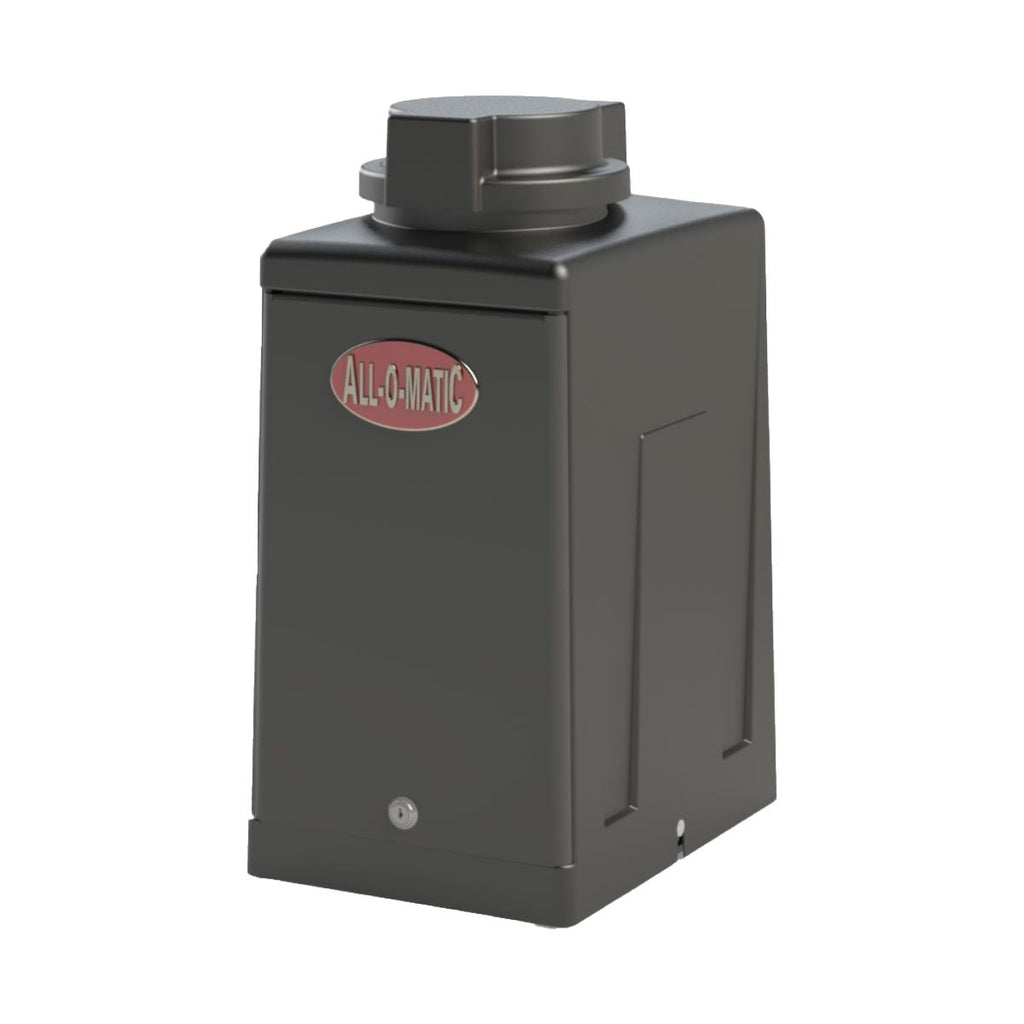

The All-O-Matic SW-300 DC PRO 1/2 HP Swing Gate Operator combines advanced brushless DC motor technology, integrated battery backup, and solar-ready capability to deliver reliable performance for residential and light commercial swing gate applications. Designed for smooth, quiet operation and long-term durability, the SW-300 DC PRO provides dependable access control while requiring virtually no routine motor maintenance.
Capable of automating gates up to 1,200 lbs. and 20 feet in length, the SW-300 DC PRO features a powerful 24VDC brushless motor that delivers high torque and efficient operation. The advanced control board includes programmable relay functions, leaf delay settings, soft start/stop operation, and solar compatibility for flexible installation options. Integrated battery backup provides continued operation during power outages, helping ensure uninterrupted property access.
Built for demanding environments, the SW-300 DC PRO offers continuous-duty operation, making it an excellent solution for residential estates, gated communities, commercial properties, and other high-cycle applications.
Key Features
- Powerful 1/2 HP brushless DC motor
- Supports gates up to 1,200 lbs.
- Maximum gate length of 20 ft.
- Continuous-duty operation
- Integrated battery backup system
- Solar compatible
- Soft start and soft stop functionality
- Programmable relay and leaf delay features
- High torque, low-maintenance motor design
- Quiet and smooth operation
- Quick-release arm for manual operation
- UL 325 Compliant
Specifications
- Motor: 24VDC Brushless 1/2 HP
- Maximum Gate Weight: 1,200 lbs.
- Maximum Gate Length: 20 ft.
- Opening Speed: Adjustable 17–25 Seconds per 90° Opening
- Power Input: 115/230 VAC Single Phase
- Solar Compatible: Yes (24VDC Solar)
- Duty Cycle: Continuous
- Battery Backup: Integrated (2) 7Ah 12V Batteries
- Battery Capacity: Up to 250 Cycles
- Temperature Range: -40°F to 160°F
- Gearbox Ratio: 60:1
- Dimensions: 12" W x 17" L x 25.5" H
Warranty
- 7-Year Residential Warranty
- 5-Year Commercial Warranty
Applications
- Residential driveway gates
- Estate entrances
- Gated communities
- Commercial properties
- Apartment complexes
- High-cycle swing gate applications
The All-O-Matic SW-300 DC PRO 1/2 HP Swing Gate Operator delivers the efficiency of brushless DC technology, integrated battery backup protection, and dependable continuous-duty performance for a wide range of residential and commercial swing gate installations.
