Description

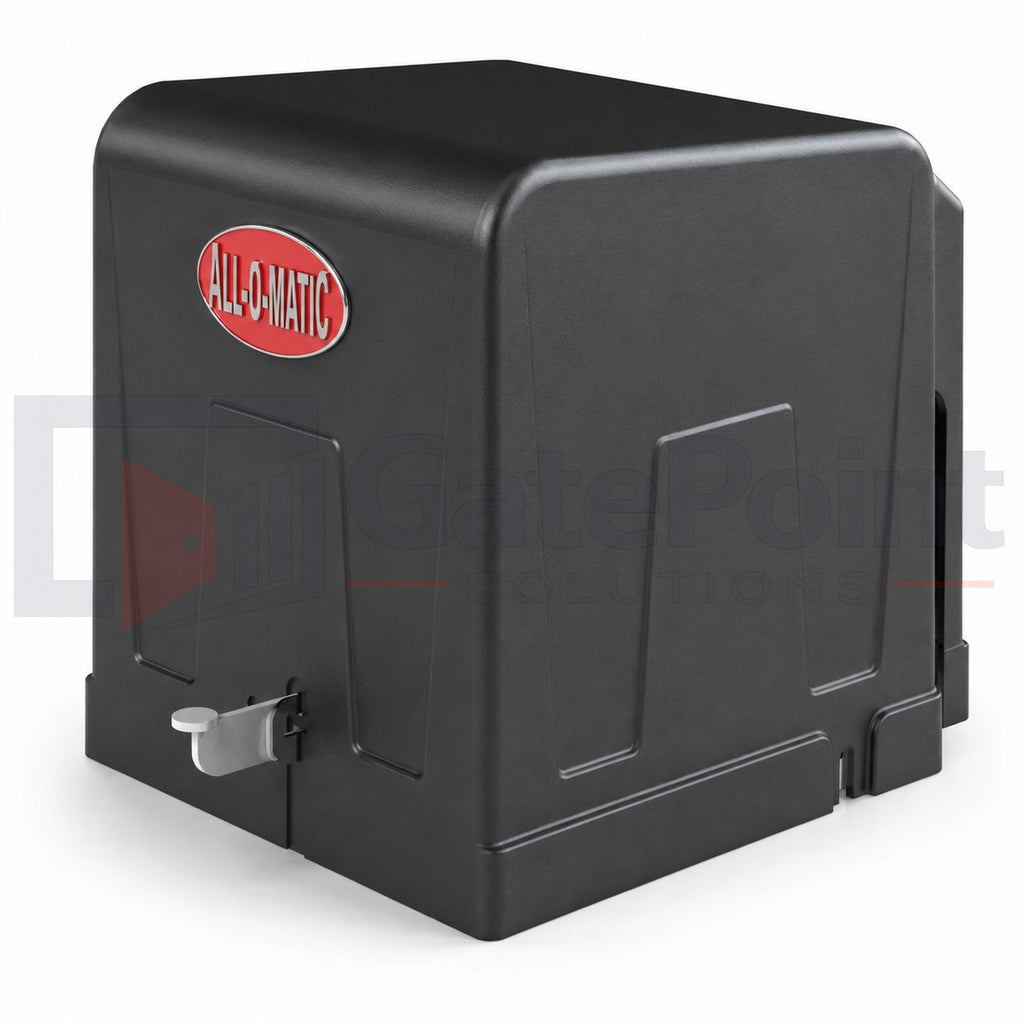

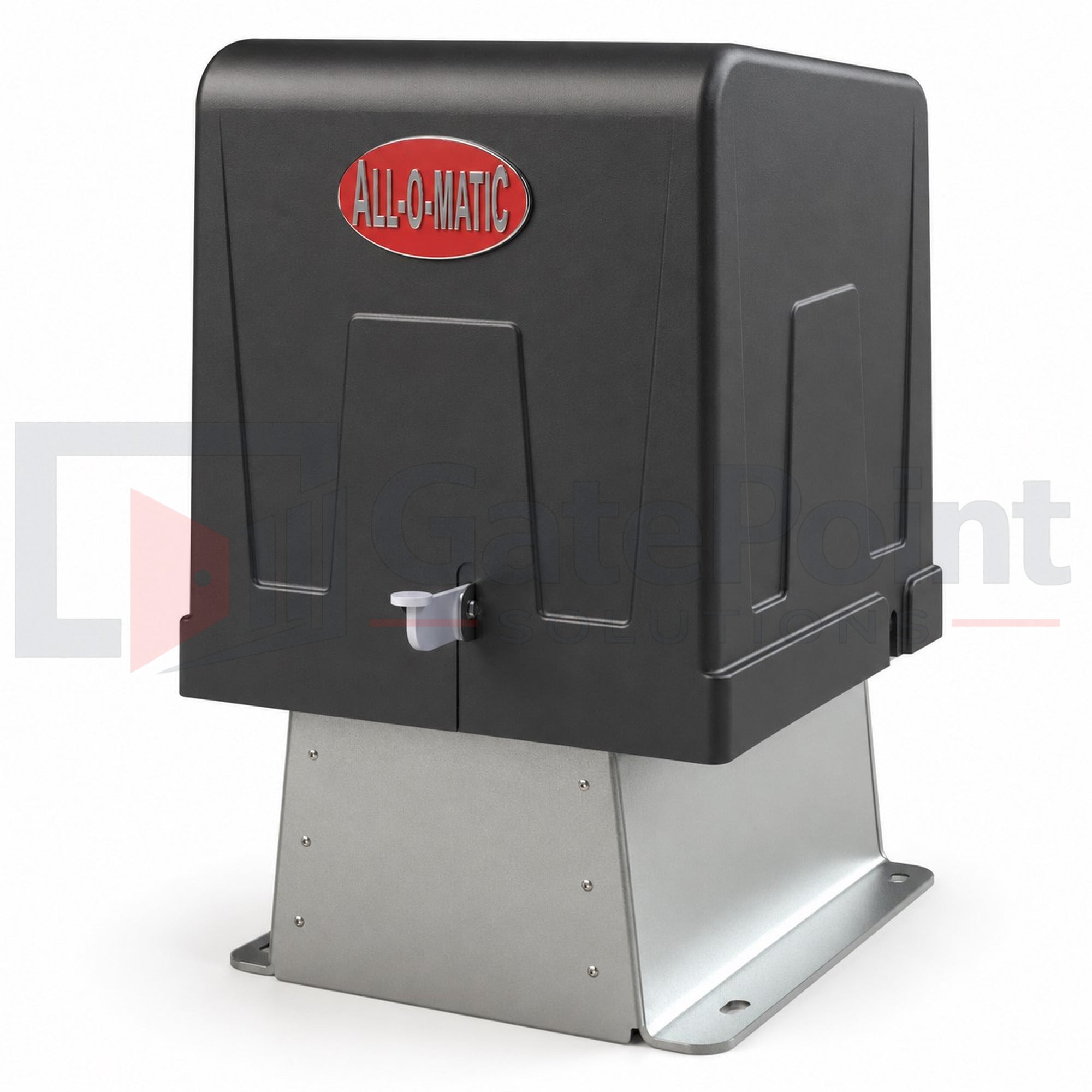

The All-O-Matic SL-90DC PRO is a high-capacity residential and commercial DC slide gate operator engineered for reliable continuous-duty performance, battery backup operation, and advanced access control functionality. Designed for residential estates, gated communities, ranches, farms, commercial properties, and perimeter access systems, the SL-90DC PRO combines compact operator design with powerful brushless DC motor technology and enhanced gate-handling capability.
The newly redesigned SL-90DC PRO features a larger gearbox with internal disconnect and a standard mechanical foot pedal release, allowing the operator to handle slide gates up to 1,600 lbs. and 50 feet in length while maintaining a compact installation footprint. Powered by a 24VDC brushless ½ HP motor, the operator delivers smooth, quiet operation with virtually zero motor maintenance and long-term durability.
The advanced DC control platform includes programmable features such as slow start/stop operation, programmable relay functionality, leaf delay control, and solar compatibility for flexible installation options. Integrated battery backup capability provides uninterrupted operation during power outages with up to 150 backup cycles on a 1,000 lb. gate.
The SL-90DC PRO is UL325 2018 compliant and engineered for dependable operation in demanding outdoor environments with operating temperatures ranging from -40°F to 160°F.
Specifications:
- Model: SL-90DC PRO
- Product Type: Residential & Commercial DC Slide Gate Operator
- Manufacturer: All-O-Matic
- UL325 Compliant: 2018 Standard
- Maximum Gate Weight: 1,600 lbs.
- Maximum Gate Length: 50 ft.
- Motor Type: 24VDC Brushless ½ HP Motor
- Duty Cycle: Continuous Duty
- Gate Speed: 12 in. per second
- Input Power: 115/230VAC Single Phase
- Solar Compatible: Yes, 24VDC Solar Panel Compatible
- Battery Backup: Integrated
- Included Batteries: (2) 7Ah 12VDC Batteries
- Battery Backup Capacity: Up to 150 Cycles on a 1,000 lb. Gate
- Gearbox Ratio: 20:1 with Internal Disconnect
- Emergency Release: Mechanical Foot Pedal Release
- Temperature Range: -40°F to 160°F
- Belt Size: 4L-230 (AX21)
- Main Sprocket Size: 41B22X7/8
- Chain Included: 41NP Chain (20 ft. Included)
- Limit Shaft Sprocket: 41B15X5/8
- Gearbox Pulley: 2.5 in. with 5/8 in. Bore
- Motor Pulley: 2 in. with 5/8 in. Bore
- Breaker Requirement: 20 Amp Dedicated Circuit
- Dimensions: 15.5 in. W × 18.5 in. L × 16 in. H
- Shipping Weight: 95 lbs.
- Warranty:
- 7-Year Residential
- 5-Year Commercial
Key Features:
- Redesigned high-capacity DC slide gate operator
- Handles gates up to 1,600 lbs. and 50 ft. long
- 24VDC brushless ½ HP motor for quiet, maintenance-free operation
- Larger gearbox with internal disconnect for increased gate capacity
- Mechanical foot pedal release for emergency manual operation
- Continuous-duty performance capability
- Integrated battery backup for uninterrupted access during power outages
- Solar-ready DC power compatibility
- Slow start/stop algorithm reduces mechanical wear
- Programmable relay and leaf delay functionality
- UL325 2018 compliant safety design
- Compact footprint for flexible installation applications
- Ideal for residential estates, ranches, and commercial perimeter access systems
- Wide operating temperature range for harsh environments
Compatible Applications:
Applications include:
- Residential slide gate systems
- Commercial slide gate systems
- Ranch and farm access gates
- Gated community entrances
- Solar-powered gate operator systems
- Perimeter access control applications
- High-capacity residential driveway gates
