Description

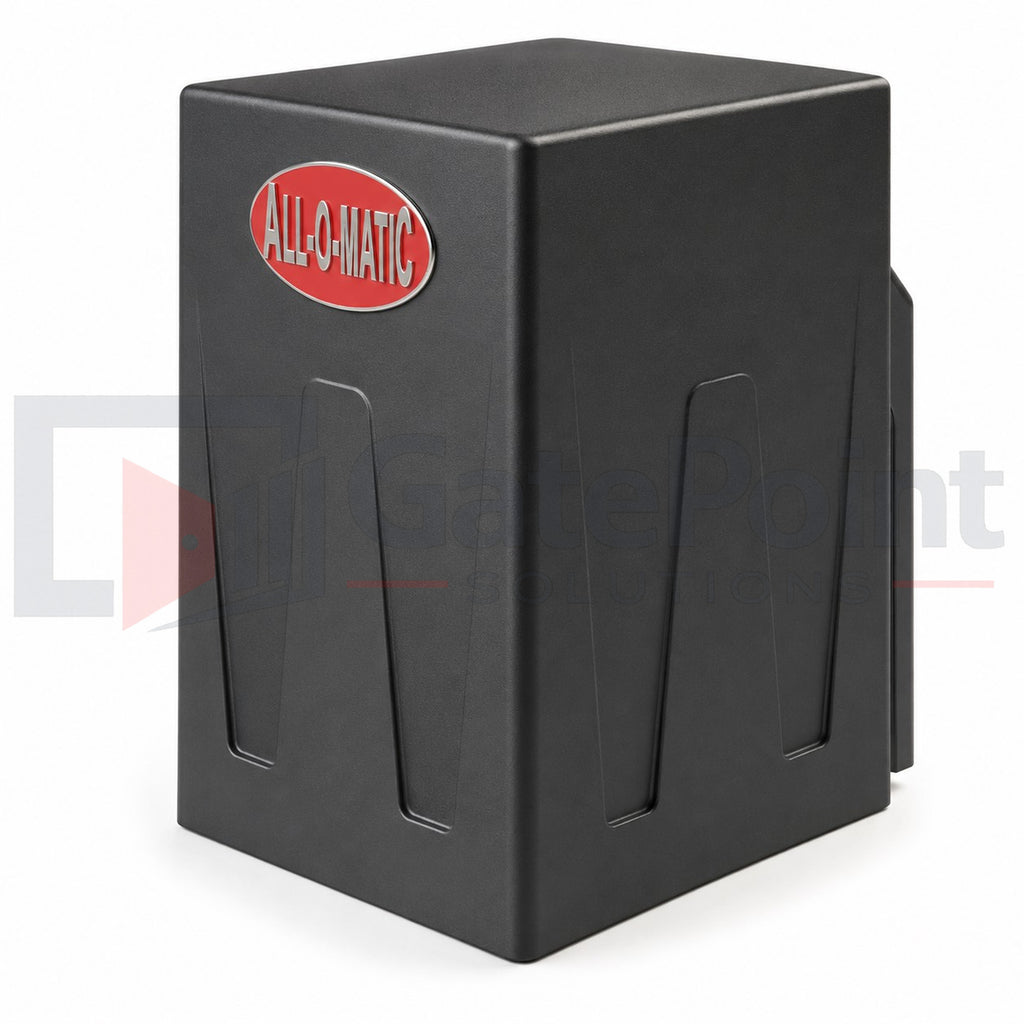

The All-O-Matic SL-45DC PRO is a residential DC slide gate operator engineered for reliable performance, quiet operation, and advanced battery backup functionality in residential perimeter access applications. Designed for homes, ranches, private properties, gated driveways, and light-duty access systems, the SL-45DC PRO combines compact operator design with powerful brushless DC motor technology and continuous-duty performance.
Powered by a 24VDC brushless motor with a high-efficiency planetary gearbox, the SL-45DC PRO delivers smooth and quiet gate operation while requiring virtually zero motor maintenance. The advanced DC control platform includes programmable features such as slow start/stop operation, programmable relay functionality, leaf delay control, and solar compatibility for flexible installation options.
Integrated battery backup capability provides uninterrupted operation during power outages with up to 250 backup cycles on a 600 lb. gate. The compact chassis design allows installation flexibility while maintaining the strength and durability required for long-term residential gate automation applications.
The SL-45DC PRO is UL325 2018 compliant and engineered for dependable operation in demanding outdoor environments with operating temperatures ranging from -40°F to 160°F.
Specifications:
- Model: SL-45DC PRO
- Product Type: Residential DC Slide Gate Operator
- Manufacturer: All-O-Matic
- UL325 Compliant: 2018 Standard
- Maximum Gate Weight: 800 lbs.
- Maximum Gate Length: 30 ft.
- Motor Type: 24VDC Brushless Motor
- Gearbox Type: Planetary Gearbox
- Duty Cycle: Continuous Duty
- Gate Speed: 12 in. per second
- Input Power: 115/230VAC Single Phase
- Solar Compatible: Yes, 24VDC Solar Panel Compatible
- Battery Backup: Integrated
- Included Batteries: (2) 7Ah 12VDC Batteries
- Battery Backup Capacity: Up to 250 Cycles on a 600 lb. Gate
- Temperature Range: -40°F to 160°F
- Gearbox Ratio: Approx. 29:1
- Chain Included: 41NP Chain (20 ft. Included)
- Main Sprocket Size: 41B15X5/8
- Limit Shaft Sprocket: 41B10X5/8
- Breaker Requirement: 20 Amp Dedicated Circuit
- Emergency Release: Push Open During Power Failure
- Dimensions: 11 in. W × 14.5 in. L × 15.5 in. H
- Shipping Weight: 60 lbs.
- Warranty: 5-Year Residential Warranty
Key Features:
- Compact residential DC slide gate operator design
- 24VDC brushless motor with planetary gearbox
- Smooth, quiet, and maintenance-free motor operation
- Continuous-duty performance capability
- Integrated battery backup for uninterrupted access during power outages
- Supports up to 250 backup cycles on a 600 lb. gate
- Solar-ready DC power compatibility
- Slow start/stop algorithm reduces mechanical wear
- Programmable relay and leaf delay functionality
- UL325 2018 compliant safety design
- Compact footprint for flexible installation applications
- Ideal for residential driveways, ranches, and gated properties
- Wide operating temperature range for harsh environments
Compatible Applications:
Applications include:
- Residential slide gate systems
- Private driveway entrances
- Ranch and farm access gates
- Gated residential properties
- Solar-powered gate operator systems
- Light-duty perimeter access control
