Description

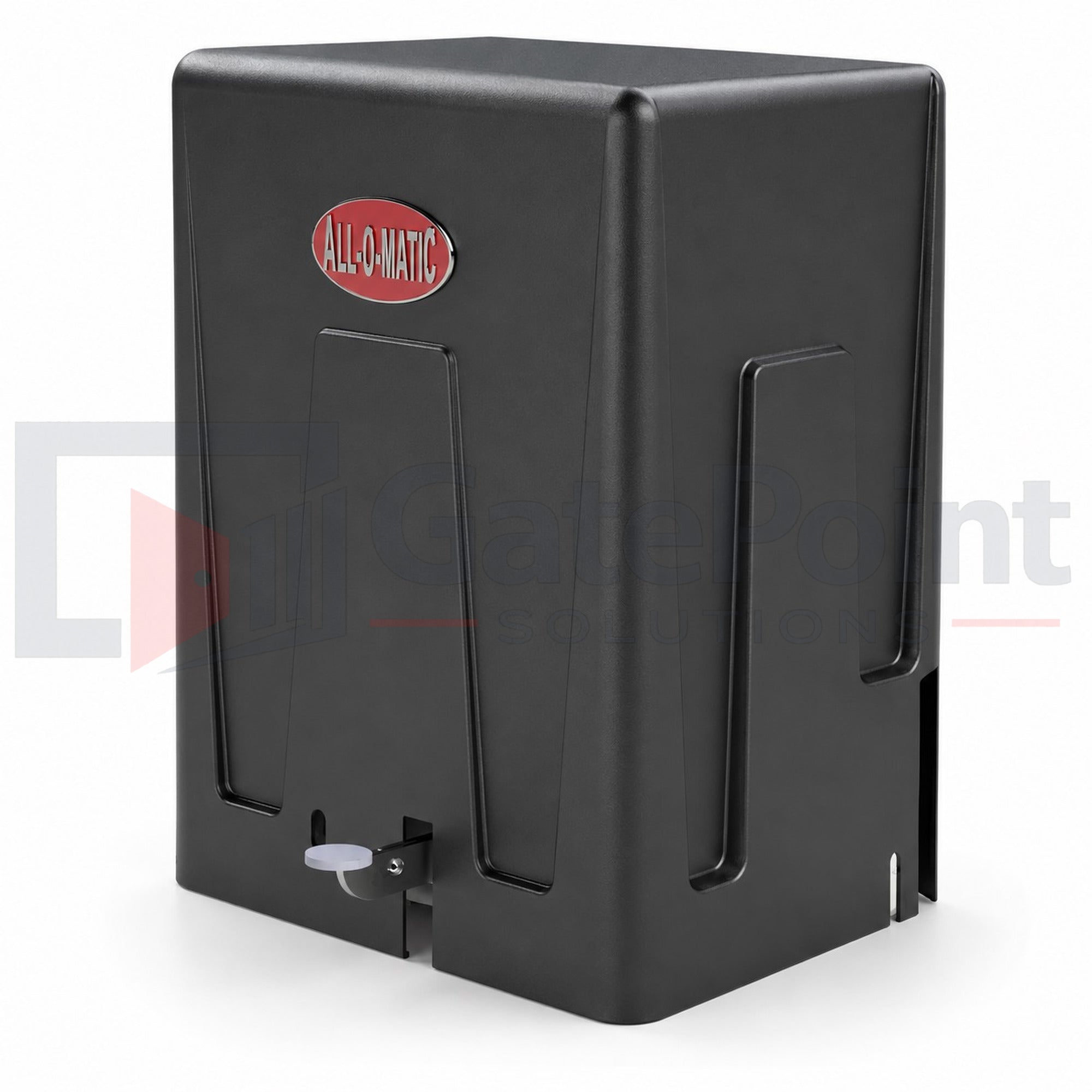

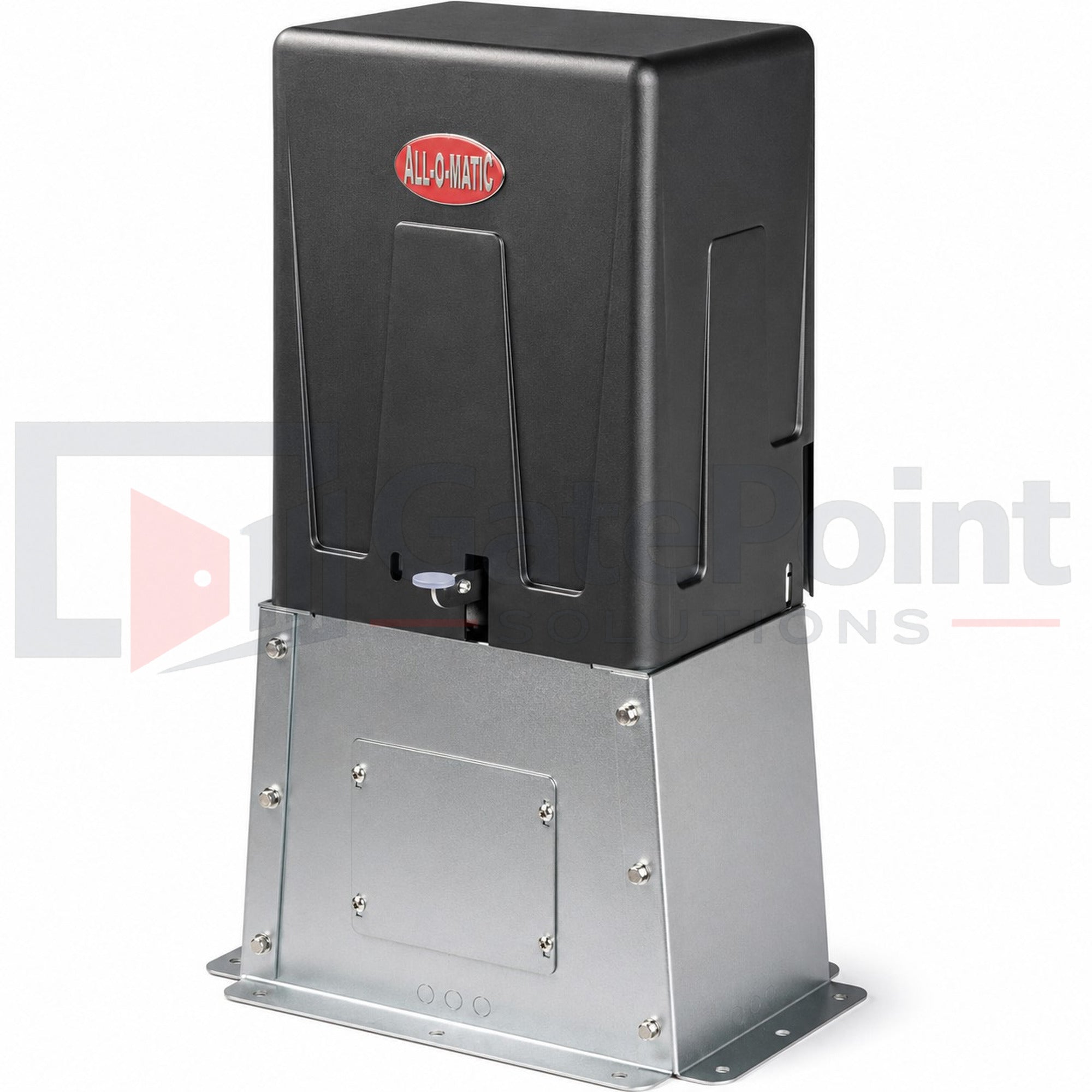

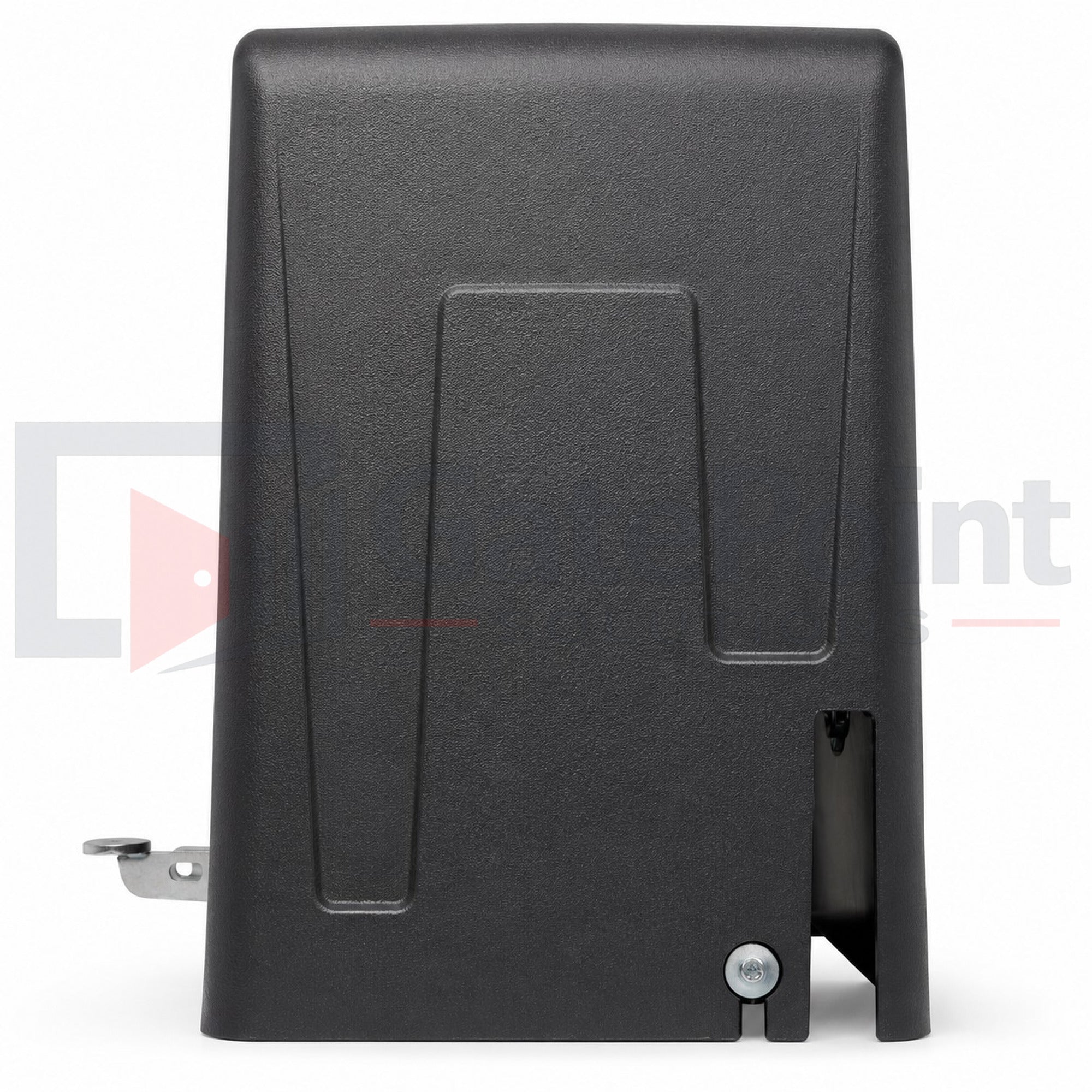

The All-O-Matic SL-150DC PRO 1 HP is an ultra heavy-duty commercial DC slide gate operator engineered for high-cycle operation, industrial-grade durability, and reliable performance in demanding perimeter access control environments. Designed for industrial facilities, transportation yards, warehouses, storage facilities, gated communities, commercial properties, and extreme-duty slide gate applications, the SL-150DC PRO combines a rugged mechanical platform with advanced brushless DC motor technology for dependable long-term operation.
Built to meet the demands of installers and property managers requiring maximum gate capacity and continuous-duty performance, the SL-150DC PRO features a heavy-duty frame, reliable gearbox assembly, and powerful 24VDC brushless motor system engineered for smooth, quiet, high-torque operation with virtually zero routine motor maintenance. The 1 HP configuration is capable of operating slide gates weighing up to 4,000 lbs. and up to 60 feet in length.
The advanced DC control platform includes programmable relay functionality, leaf delay control, slow start/stop algorithms, and solar compatibility for flexible installation applications. Integrated battery backup capability provides uninterrupted operation during power outages while supporting connected gate accessories and access control devices.
Additional features include a built-in loop detector rack, continuous-duty performance capability, and a mechanical foot pedal release for emergency manual operation. The SL-150DC PRO is UL325 2018 compliant and engineered for reliable operation in harsh outdoor environments with operating temperatures ranging from -40°F to 160°F.
Specifications:
- Model: SL-150DC PRO
- Product Type: Commercial DC Slide Gate Operator
- Manufacturer: All-O-Matic
- Horsepower: 1 HP
- UL325 Compliant: 2018 Standard
- Maximum Gate Weight: 4,000 lbs.
- Maximum Gate Length: 60 ft.
- Motor Type: 24VDC Brushless 1 HP Motor
- Duty Cycle: Continuous Duty
- Gate Speed: 12 in. per second
- Input Power: 115/230VAC Single Phase
- Solar Compatible: Yes, 24VDC Solar Panel Compatible
- Battery Backup: Integrated
- Included Batteries: (2) 7Ah 12VDC Batteries
- Battery Backup Capacity: Up to 100 Cycles on a 1,000 lb. Gate
- Gearbox Ratio: 30:1 with Internal Clutch
- Emergency Release: Mechanical Foot Pedal Release
- Temperature Range: -40°F to 160°F
- Main Sprocket Size: 41B22X1
- Chain Included: 40NP Chain (20 ft. Included)
- Gearbox Sprocket: 40B22X1
- Limit Shaft Sprocket: 41B10X5/8
- Breaker Requirement: 20 Amp Dedicated Circuit
- Dimensions: 15 in. W × 19.5 in. L × 25 in. H
- Shipping Weight: 150 lbs.
- Warranty:
- 7-Year Residential
- 5-Year Commercial
Key Features:
- Ultra heavy-duty commercial DC slide gate operator
- Powerful 1 HP brushless DC motor platform
- Handles gates up to 4,000 lbs. and 60 ft. long
- Designed for industrial and extreme-duty applications
- Smooth, quiet, high-torque brushless motor operation
- Zero routine motor maintenance design
- Heavy-duty frame and industrial gearbox construction
- Integrated battery backup for uninterrupted operation during power outages
- Solar-ready DC power compatibility
- Built-in loop detector rack included
- Mechanical foot pedal release for emergency manual operation
- Continuous-duty performance capability
- Slow start/stop algorithm reduces gate wear
- Programmable relay and leaf delay functionality
- UL325 2018 compliant safety design
- Ideal for industrial, commercial, and high-cycle perimeter access systems
- Wide operating temperature range for harsh outdoor environments
Compatible Applications:
Applications include:
- Industrial slide gate systems
- Commercial perimeter access control
- Heavy-gate industrial applications
- Transportation and logistics facilities
- Warehouse and distribution centers
- Storage facility gate systems
- High-cycle gated community entrances
- Ranch and agricultural access systems
- Solar-powered gate operator systems
