Description

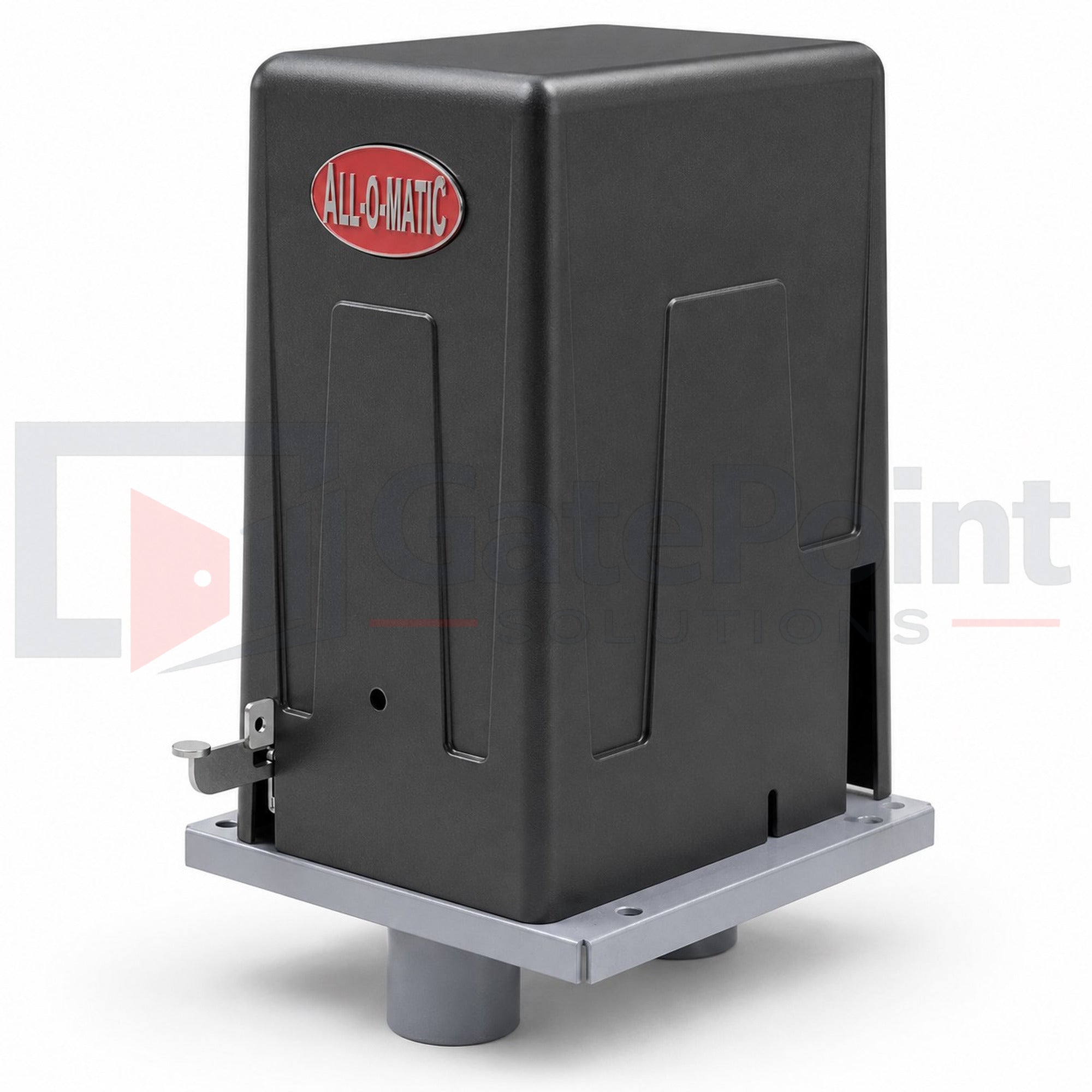

The All-O-Matic SL-100DC PRO is a high-capacity commercial DC slide gate operator engineered for maximum durability, continuous-duty performance, and advanced battery backup operation in demanding perimeter access control applications. Designed for commercial properties, gated communities, industrial facilities, warehouses, storage facilities, ranches, and high-cycle access systems, the SL-100DC PRO delivers powerful brushless DC performance with smooth and quiet gate operation.
Built as one of the strongest and most durable DC gate operators in its class, the SL-100DC PRO utilizes industry-first brushless DC motor technology designed for zero routine motor maintenance, high torque output, smooth acceleration, and long-term operational reliability. Its heavy-duty frame and rugged mechanical drive components are engineered for years of dependable continuous-duty performance in demanding environments.
The advanced DC control platform includes programmable relay functionality, leaf delay control, slow start/stop algorithms, and solar compatibility for flexible installation applications. Integrated battery backup capability provides uninterrupted operation during power outages while supplying enough reserve power to continue operating connected access control accessories.
The SL-100DC PRO also features a built-in loop detector rack and a mechanical foot pedal release for emergency manual operation. The operator is UL325 2018 compliant and engineered for reliable operation in harsh outdoor environments with operating temperatures ranging from -40°F to 160°F.
Specifications:
- Model: SL-100DC PRO
- Product Type: Commercial DC Slide Gate Operator
- Manufacturer: All-O-Matic
- UL325 Compliant: 2018 Standard
- Maximum Gate Weight: 2,000 lbs.
- Maximum Gate Length: 50 ft.
- Motor Type: 24VDC Brushless ½ HP Motor
- Duty Cycle: Continuous Duty
- Gate Speed: 12 in. per second
- Input Power: 115/230VAC Single Phase
- Solar Compatible: Yes, 24VDC Solar Panel Compatible
- Battery Backup: Integrated
- Included Batteries: (2) 7Ah 12VDC Batteries
- Battery Backup Capacity: Up to 80 Cycles on a 1,000 lb. Gate
- Gearbox Ratio: 20:1 with Internal Disconnect
- Emergency Release: Mechanical Foot Pedal Release
- Temperature Range: -40°F to 160°F
- Belt Size: 4L-260 (AX24)
- Main Sprocket Size: 41B22X7/8
- Chain Included: 41NP Chain (20 ft. Included)
- Limit Shaft Sprocket: 41B15X5/8
- Gearbox Pulley: 2.5 in. with 5/8 in. Bore
- Motor Pulley: 2 in. with 5/8 in. Bore
- Breaker Requirement: 20 Amp Dedicated Circuit
- Dimensions: 12 in. W × 17.5 in. L × 23.5 in. H
- Shipping Weight: 130 lbs.
- Warranty:
- 7-Year Residential
- 5-Year Commercial
Key Features:
- Heavy-duty commercial DC slide gate operator
- Handles gates up to 2,000 lbs. and 50 ft. long
- Industry-first brushless DC motor technology
- Quiet, smooth, high-torque operation with zero routine motor maintenance
- Continuous-duty performance capability
- Integrated battery backup for uninterrupted access during power outages
- Supports gate accessories during battery backup operation
- Solar-ready DC power compatibility
- Built-in loop detector rack included
- Mechanical foot pedal release for emergency manual operation
- Slow start/stop algorithm reduces wear on gate hardware
- Programmable relay and leaf delay functionality
- Heavy-duty frame and long-life mechanical construction
- UL325 2018 compliant safety design
- Ideal for commercial, industrial, and high-cycle perimeter access applications
- Wide operating temperature range for demanding environments
Compatible Applications:
Applications include:
- Commercial slide gate systems
- Industrial perimeter access control
- Storage facility gate systems
- Warehouse and logistics access gates
- Gated community entrances
- Ranch and farm access gates
- High-cycle commercial access applications
- Solar-powered gate operator systems
