Description

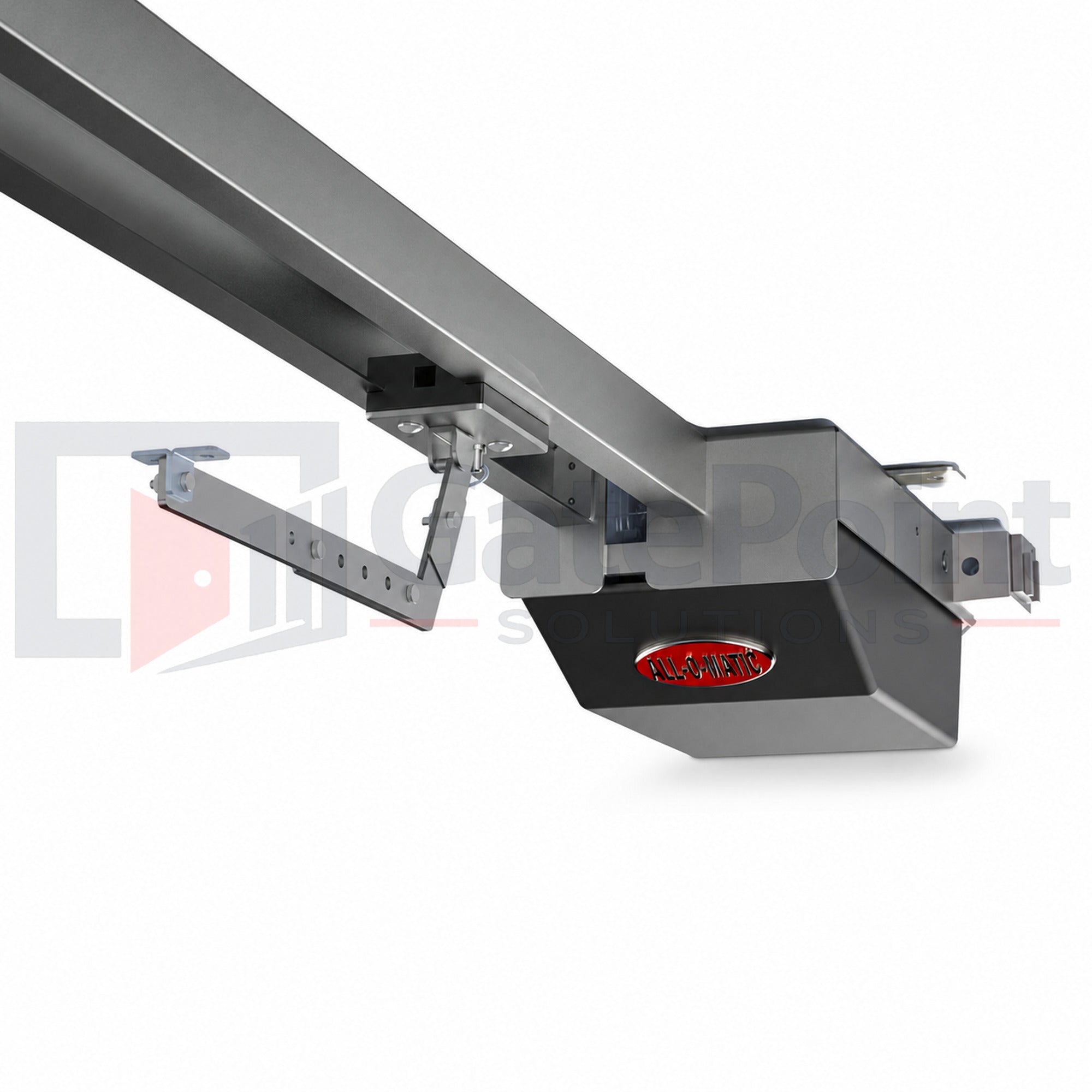

The All-O-Matic OH-200 DC PRO Overhead Gate Operator is a high-performance commercial overhead gate system engineered for continuous-duty operation in demanding parking and secured access environments. Designed for overhead tilt-up gates in apartment complexes, underground parking facilities, condominium buildings, and commercial vehicle access points, the OH-200 DC PRO combines advanced DC motor technology, integrated battery backup, and intelligent control functionality for dependable long-term operation.
Featuring an industry-first brushless 24VDC motor platform, the OH-200 DC PRO delivers smooth, quiet, and maintenance-free performance while providing superior efficiency and durability compared to traditional AC systems. Integrated slow start and slow stop functionality helps reduce mechanical stress and extend operator and gate hardware life.
The OH-200 DC PRO includes a true integrated long-term battery backup system capable of maintaining operation during extended power outages. Unlike single-cycle emergency backup systems, the operator seamlessly transitions from AC power to battery operation without interrupting gate functionality. With integrated solar compatibility and advanced programmable control features, the OH-200 DC PRO is designed for modern commercial access control applications requiring reliable uninterrupted operation.
Constructed with a heavy-duty frame and commercial-grade drive components, the OH-200 DC PRO is UL 325 2018 compliant and engineered for high-cycle commercial environments.
Ideal Applications
- Underground Parking Facilities
- Apartment & Condominium Garages
- Commercial Parking Structures
- Multi-Residential Vehicle Access
- Secured Commercial Overhead Gates
- Industrial Access Points
- High-Cycle Parking Garage Systems
Specifications
Model: OH-200 DC PRO
Product Type: Commercial Overhead Gate Operator
Operator Type: DC Continuous-Duty
Maximum Gate Length: 22 ft.
Maximum Gate Weight: 800 lbs.
Motor: 24VDC Brushless DC Motor – ½ HP
Power Input: 115/230VAC Single Phase
Solar Compatible: Yes – 24VDC Solar Compatible
Duty Cycle: Continuous Duty
Gate Speed: Approximately 20 Seconds Full Open (6.5’–8’ Gate)
UL Compliance: UL 325 2018 Compliant
Battery Backup: Integrated Battery Backup System
Battery Configuration: (2) 7Ah 12VDC Batteries Included
Battery Backup Capacity: Up to 100 Cycles on 800 lb. Gate
Operating Temperature: -40°F to 160°F
Gearbox Ratio: 30:1
Emergency Release: Lockable Quick-Release Drive Arm & Carriage
Rail Length: 10 ft.
Dimensions: 13 in. × 144 in. × 8 in.
Shipping Weight: 110 lbs.
Breaker Requirement: 20 Amp Dedicated Circuit
Manufacturer Warranty: 5-Year Commercial Warranty
Manufacturer: All-O-Matic
Drive Components
Belt Size: 4L-200 (AX18)
Main Sprocket Size: 41B15X5/8
Chain Size: 41NP
Gearbox Sprocket: 41B15X5/8
Limit Shaft Sprocket: N/A
Gearbox Pulley: 2½” with ½” Bore
Motor Pulley: 2” with 5/8” Bore
Key Features
- Commercial overhead gate operator designed for high-cycle environments
- Industry-first brushless DC motor platform for quiet, maintenance-free operation
- True integrated long-term battery backup system
- Seamless automatic transition from AC power to battery backup mode
- Slow start/stop algorithm reduces mechanical wear and extends hardware life
- Continuous-duty design for commercial parking and access control applications
- Integrated loop rack and advanced programmable control functionality
- Solar-compatible for off-grid and backup power applications
- Heavy-duty frame and commercial-grade drive system construction
- UL 325 2018 compliant safety design
- Lockable quick-release disconnect for emergency manual operation
- Designed for apartment, parking garage, and commercial overhead gate systems
