Description

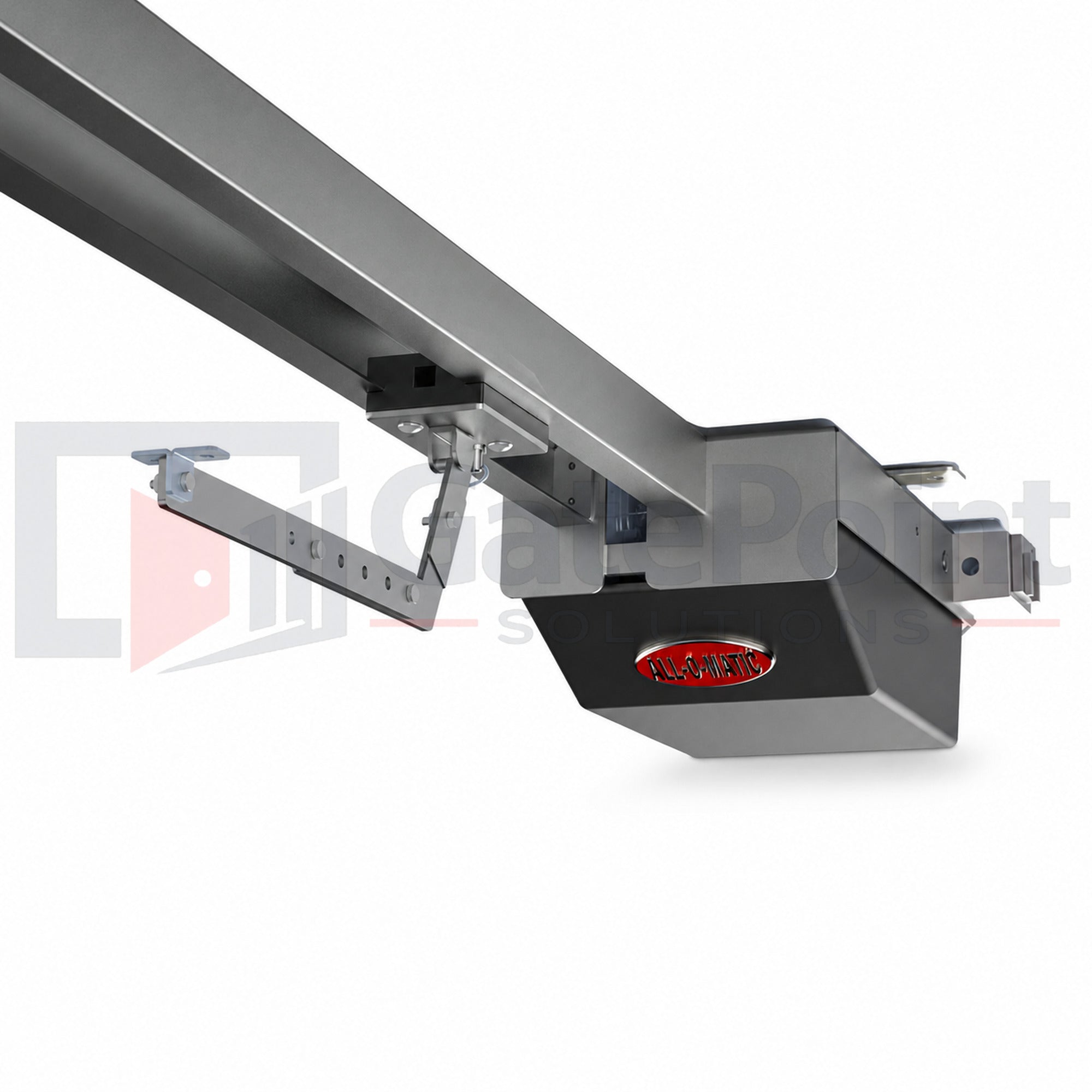

The All-O-Matic OH-200 AC Overhead Gate Operator is a commercial-grade overhead gate system engineered for tilt-up and overhead gate applications requiring dependable continuous-duty performance. Commonly installed in underground parking garages, apartment complexes, condominium facilities, and secured commercial properties, the OH-200 AC is designed to deliver smooth, reliable gate operation in demanding high-cycle environments.
Powered by a durable ½ HP AC motor and proven 30:1 gearbox reduction system, the OH-200 AC provides quiet and consistent performance with opening speeds of approximately 20 seconds for standard 6.5’ to 8’ gates. The operator utilizes All-O-Matic’s simple and field-proven control platform, designed for long-term reliability and backwards compatibility across installations.
Built for commercial environments, the OH-200 AC features continuous-duty operation, a lockable quick-release emergency disconnect system, and heavy-duty drive components tested in real-world applications for over two decades. The operator is UL 325 2018 compliant and designed for dependable daily operation in extreme temperature conditions.
Ideal Applications
- Underground Parking Facilities
- Apartment & Condominium Garages
- Commercial Parking Structures
- Secured Overhead Gate Systems
- Industrial Vehicle Access Points
- Multi-Tenant Commercial Properties
Specifications
Model: OH-200 AC
Product Type: Commercial Overhead Gate Operator
Operator Type: AC Continuous-Duty
Maximum Gate Length: 20 ft.
Maximum Gate Weight: 800 lbs.
Motor: ½ HP AC Motor
Power Input: 120VAC
Duty Cycle: Continuous Duty
Gate Speed: Approximately 20 Seconds Full Open (6.5’–8’ Gate)
UL Compliance: UL 325 2018 Compliant
Gearbox Ratio: 30:1
Operating Temperature: -40°F to 160°F
Emergency Release: Lockable Quick-Release Drive Arm & Carriage
Rail Length: 10 ft.
Dimensions: 13 in. × 144 in. × 8 in.
Shipping Weight: 100 lbs.
Breaker Requirement: 20 Amp Dedicated Circuit
Battery Backup: Not Available
Manufacturer Warranty: 5-Year Commercial Warranty
Manufacturer: All-O-Matic
Drive Components
Belt Size: 4L-200 (AX18)
Main Sprocket Size: 41B15X5/8
Chain Size: 41NP
Gearbox Sprocket: 41B15X5/8
Limit Shaft Sprocket: N/A
Gearbox Pulley: 2½” with ½” Bore
Motor Pulley: 2” with 5/8” Bore
Key Features
- Commercial overhead gate operator for tilt-up gate applications
- Continuous-duty AC operation for high-cycle environments
- Durable ½ HP motor with proven long-term field performance
- Quiet and reliable operation for parking and secured access facilities
- Simple and dependable control board with backwards compatibility
- UL 325 2018 compliant safety design
- Lockable quick-release disconnect for emergency manual operation
- Designed for underground parking and commercial garage environments
- Heavy-duty gearbox and drive components engineered for longevity
- Performs reliably in extreme temperature conditions
