Description

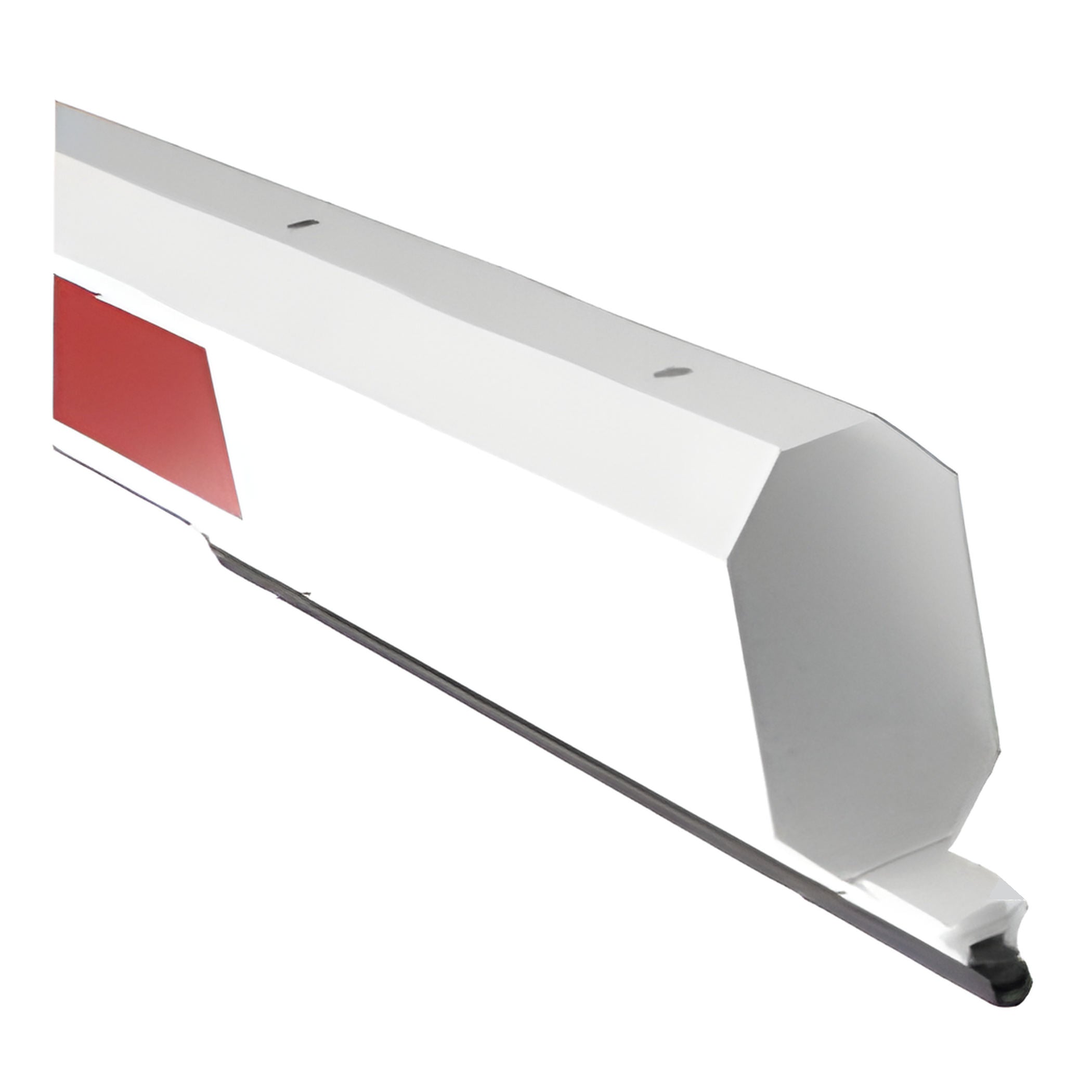

The All-O-Matic MQ-EDGE LED & Safety Edge Kit for Magna Q combines a low-voltage LED light strip with an integrated safety edge sensor to boost night visibility and entrapment protection for MAGNA Q barrier gate systems. Available in two arm-length configurations, MQ-EDGE15 and MQ-EDGE19, it’s designed for seamless bottom-channel installation on MAGNA Q arms.
- Models: MQ-EDGE15 fits the standard 15 ft 7 in arm; MQ-EDGE19 fits the 19 ft 8 in extended arm.
- All-in-One Safety and Illumination: Combines a low-voltage LED strip with an integrated safety edge sensor for enhanced visibility and entrapment protection.
- Bottom Channel Mounting: Installs in the bottom channel of the arm (MQ-15A or extended arms) for a clean, unobtrusive integration.
- Power & Wiring: Includes a 12VDC adapter that plugs into the operator’s 120VAC outlet; red to 12VDC (+), black to 12VDC (-), white to MAGLOCK, yellow to SOLENOID; pre-wired for straightforward integration through factory grommets.
- Status and Obstruction Detection: Provides visual gate status indicators and reliable physical obstruction detection to enhance safety monitoring.
- Relay Programming: Designed to work with MAGNA Q AUX Relay 2 logic functions with selectable trigger modes for flexible control.
- Compatibility: Specifically designed for MAGNA Q MQ-19 barrier operators (aluminium arms only).
- Safety and Standards: Built to support safe operation aligned with UL 325 safety requirements.
The MQ-EDGE15 and MQ-EDGE19 offer a unified solution that streamlines wiring, improves night-time driver awareness, and adds entrapment protection to MAGNA Q systems. By integrating LED illumination with a safety edge sensor in a bottom-channel form factor, these kits reduce installation complexity while enhancing operational safety at access points. Ideal for new installations or retrofits on MAGNA Q barriers, they fit neatly into existing arm configurations and communicate cleanly with the operator’s logic.
