Description

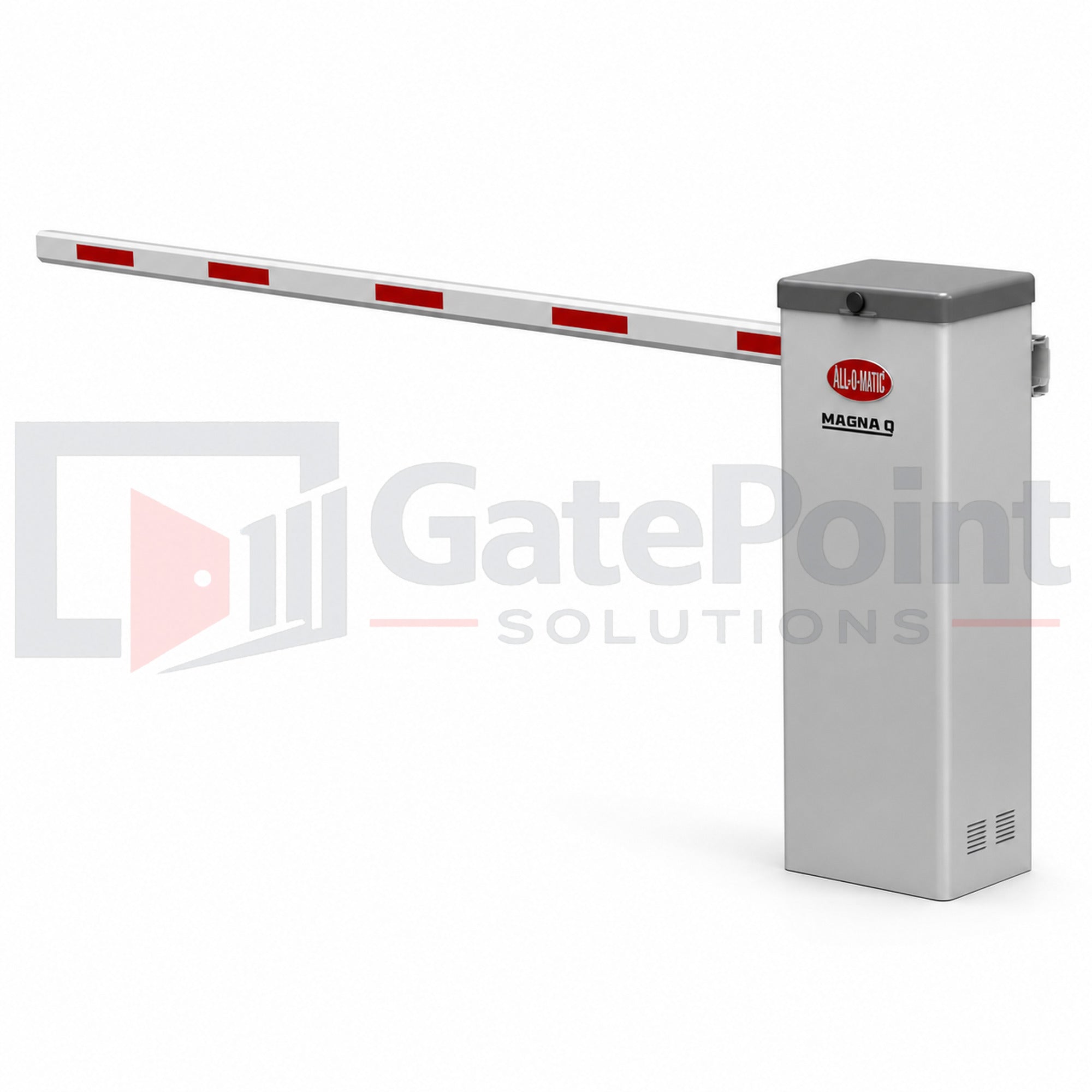

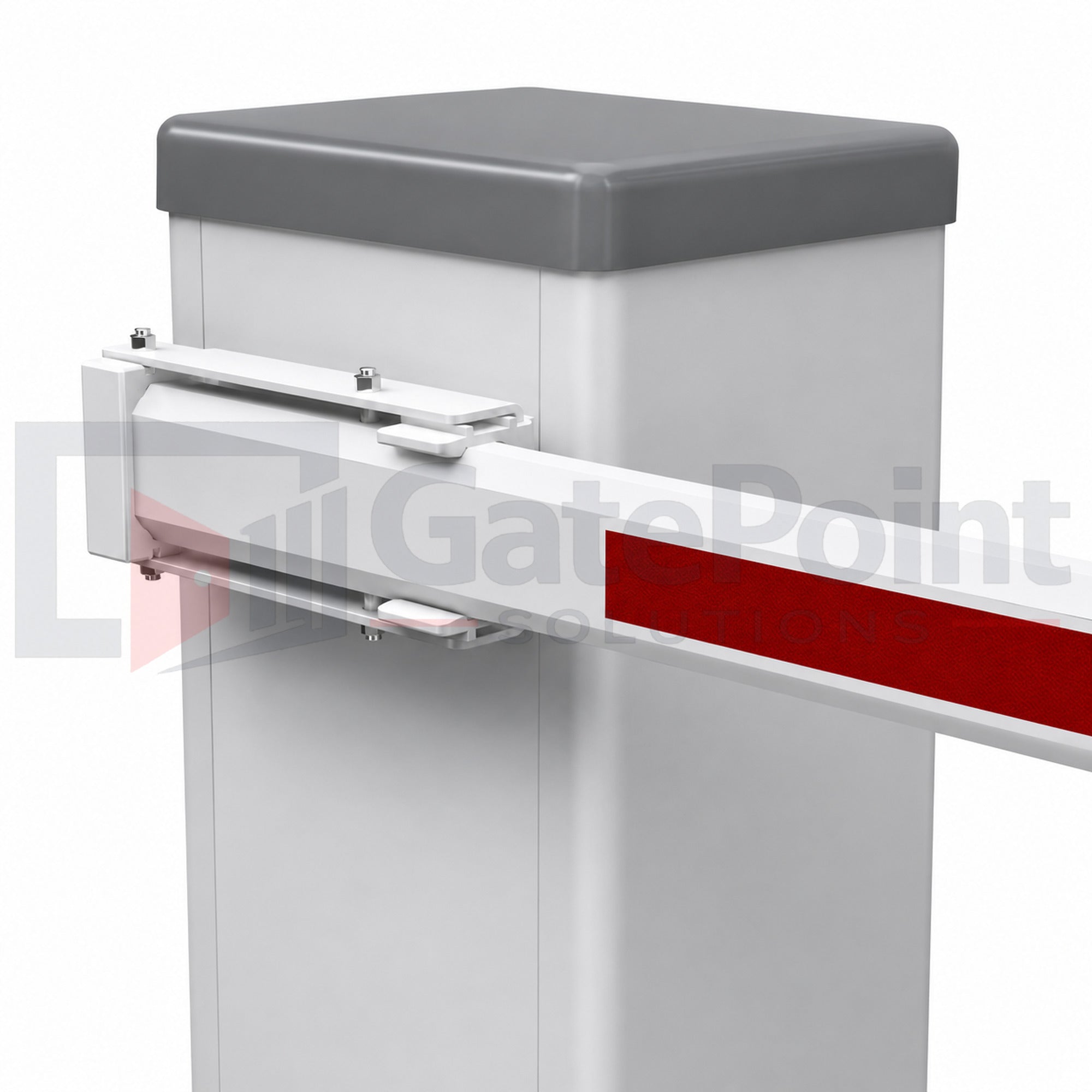

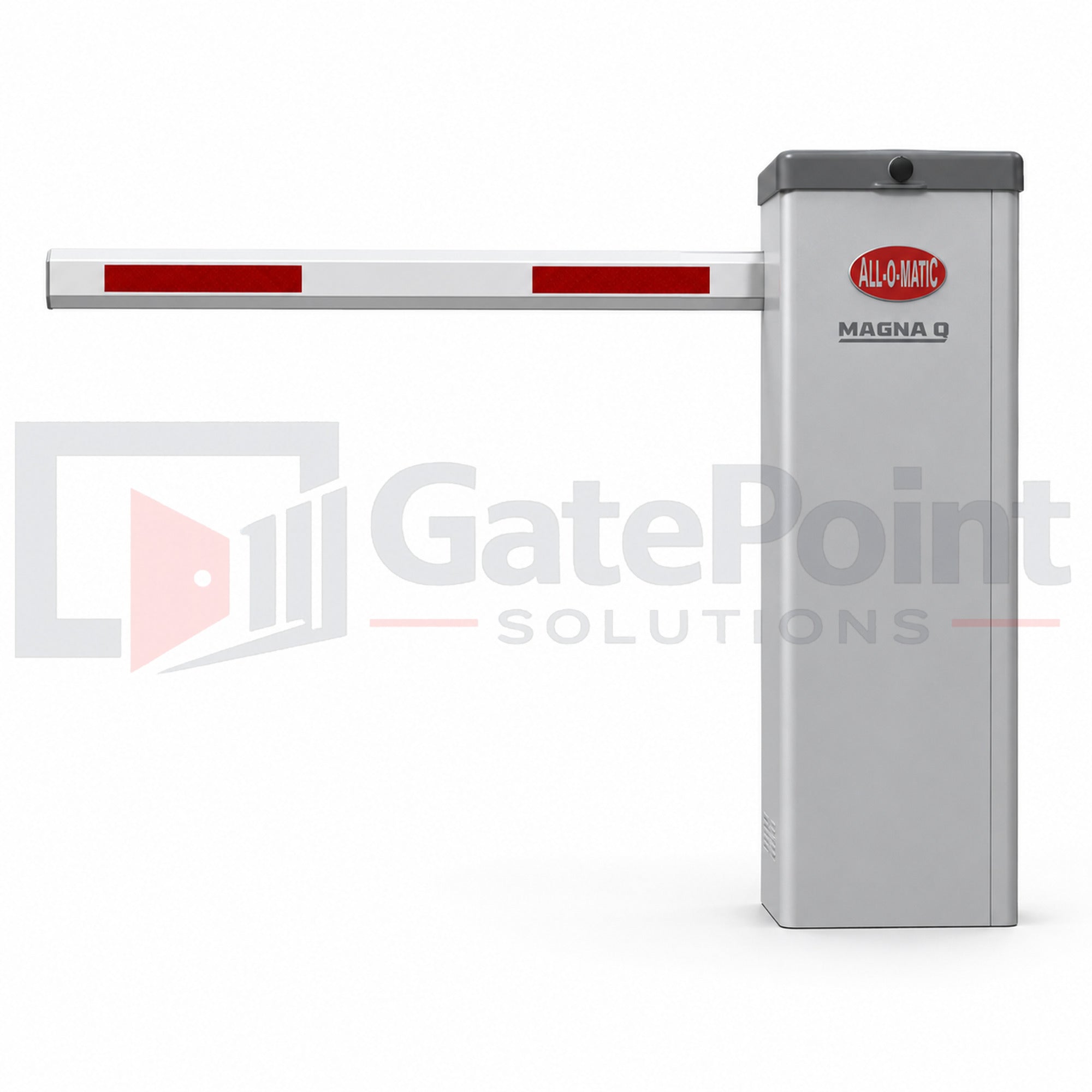

The All-O-Matic MAGNA Q Barrier Arm Operator is a high-performance DC barrier gate system engineered for parking control, traffic management, and controlled vehicle access applications. Designed for commercial facilities, gated communities, industrial properties, parking lots, and secured entry points, the MAGNA Q combines fast operation, continuous-duty performance, and modern low-maintenance design for dependable daily operation.
Powered by a 24VDC brushless DC motor (BLDC), the MAGNA Q delivers smooth and efficient barrier arm movement with opening speeds ranging from 2.5 to 4.5 seconds depending on arm configuration. The continuous-duty design allows the operator to perform reliably in high-cycle environments while integrated battery backup support helps maintain operation during power interruptions.
Constructed with durable 6061 aluminum extrusion panels and a UV-resistant hood, the MAGNA Q is built for long-term outdoor performance in demanding environments. Multiple power configurations, optional solar compatibility, and a wide range of arm accessories provide flexible installation options for a variety of site requirements.
Ideal Applications
- Commercial Parking Facilities
- Gated Communities
- Industrial Vehicle Access
- Apartment Complexes
- Traffic Control Lanes
- Security Checkpoints
- Controlled Entry & Exit Points
Specifications
Model: MAGNA Q
Product Type: Commercial Barrier Arm Operator
Motor Type: 24VDC BLDC Motor
Operating Voltage: 24VDC
Power Options: 120VAC, 208/240VAC (Single Phase), and 24VDC Solar
Battery Backup: Two 7Ahr 12V Batteries Included
Battery Capacity: Up to 350 Cycles with 15’-7” Arm
Duty Cycle: Continuous Duty
Arm Speed: 90° Movement in 2.5–4.5 Seconds (Varies by Arm Length)
Standard Arm Length: 15’-7” Two-Piece Octagonal Aluminum Arm
Maximum Arm Length: 19’-8” with Optional Extension
Accessory Power Output: 0.5A at 12VDC and 0.5A at 24VDC
Mechanical Release: Manual Spindle Crank Release
Cabinet Construction: 6061 Aluminum Extrusion Panels
Finish: Powder-Coated Cabinet with PA-765A UV-Resistant Hood
Cabinet Dimensions: 11 in. × 14 in. × 42 in.
Operator Weight: 120 lbs. (Without Arm)
Manufacturer: All-O-Matic
Available Options & Accessories
Arm Extension
Optional 49” arm extension increases the total arm length to 19’-8” for wider traffic lanes and larger vehicle access points.
Folding Arm Kit
Optional folding arm hardware designed for low-clearance applications such as parking garages and covered structures. Main arm length must be specified when ordering.
Monitored Edge Sensor
Compact monitored edge sensor available for both 15’-7” and 19’-8” arm configurations to provide additional obstruction protection and enhanced safety compliance.
LED Arm Strip
Optional integrated LED strip available for 15’-7” and 19’-8” arms to improve visibility and traffic guidance in low-light environments.
Key Features
- High-speed DC barrier operator for commercial traffic control
- Continuous-duty design for high-cycle applications
- Brushless DC motor provides smooth, efficient operation
- Battery backup capable for continued access during power outages
- Solar-compatible configuration available
- Durable powder-coated aluminum cabinet construction
- Compact modern design with low-maintenance operation
- Manual crank release for emergency arm movement
- Multiple arm configurations available for flexible installations
- Optional LED arm lighting and monitored safety accessories
- Designed for parking, traffic, and perimeter access control applications
