Description

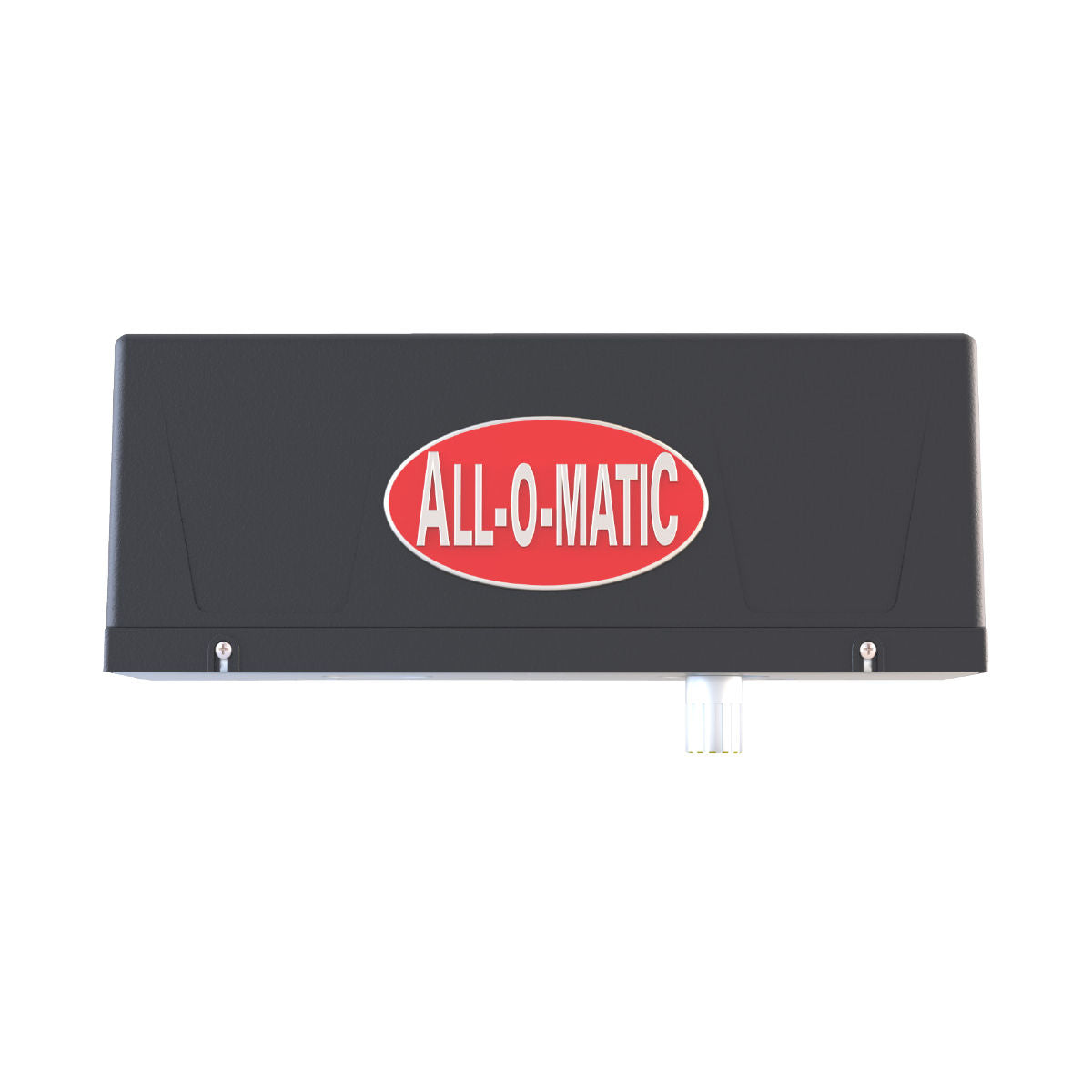

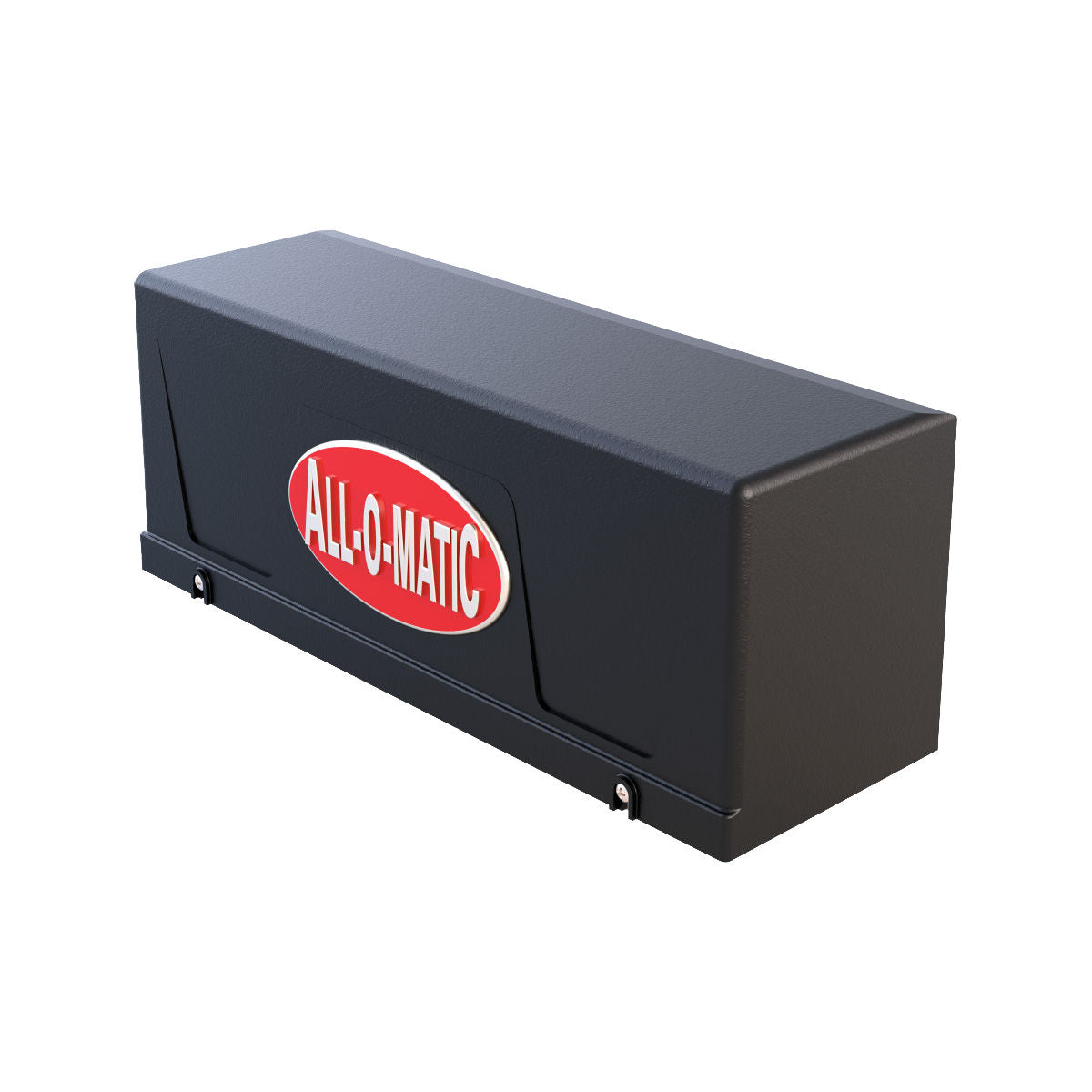

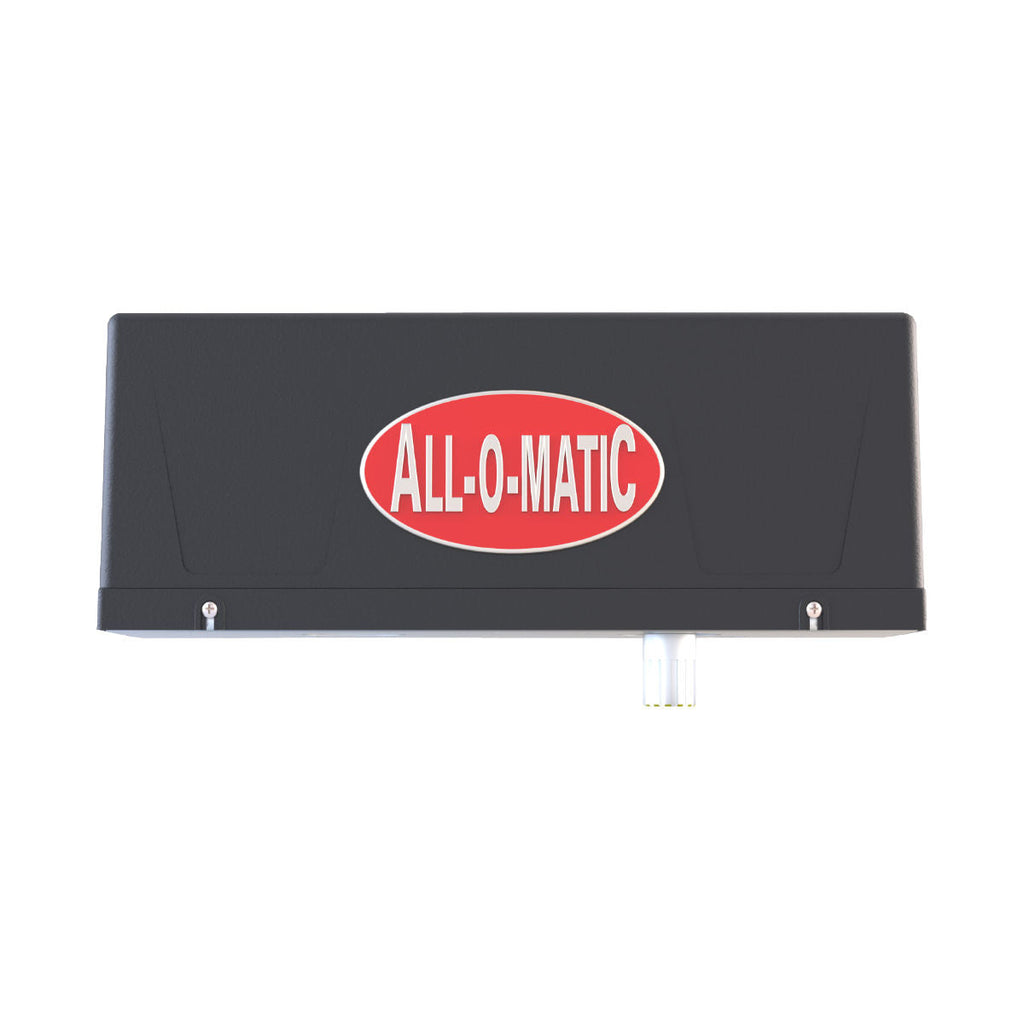

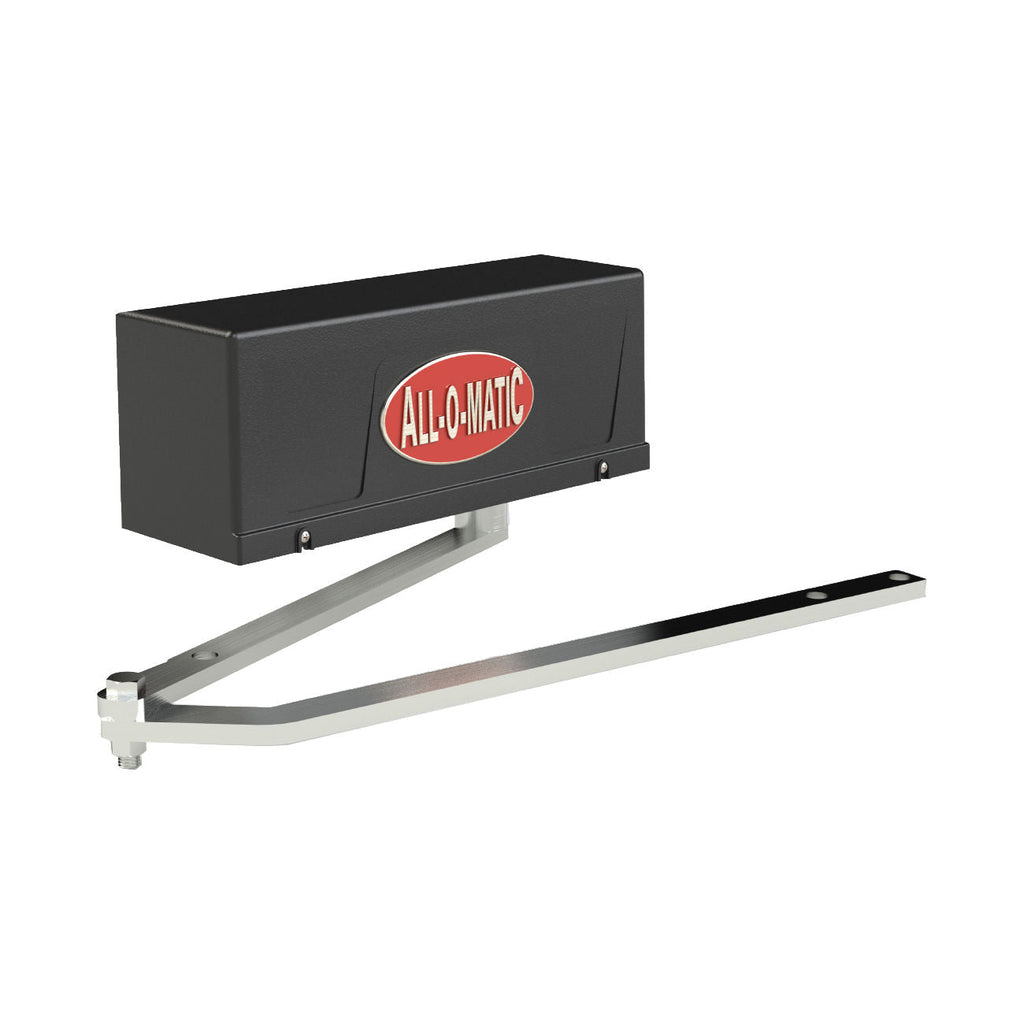

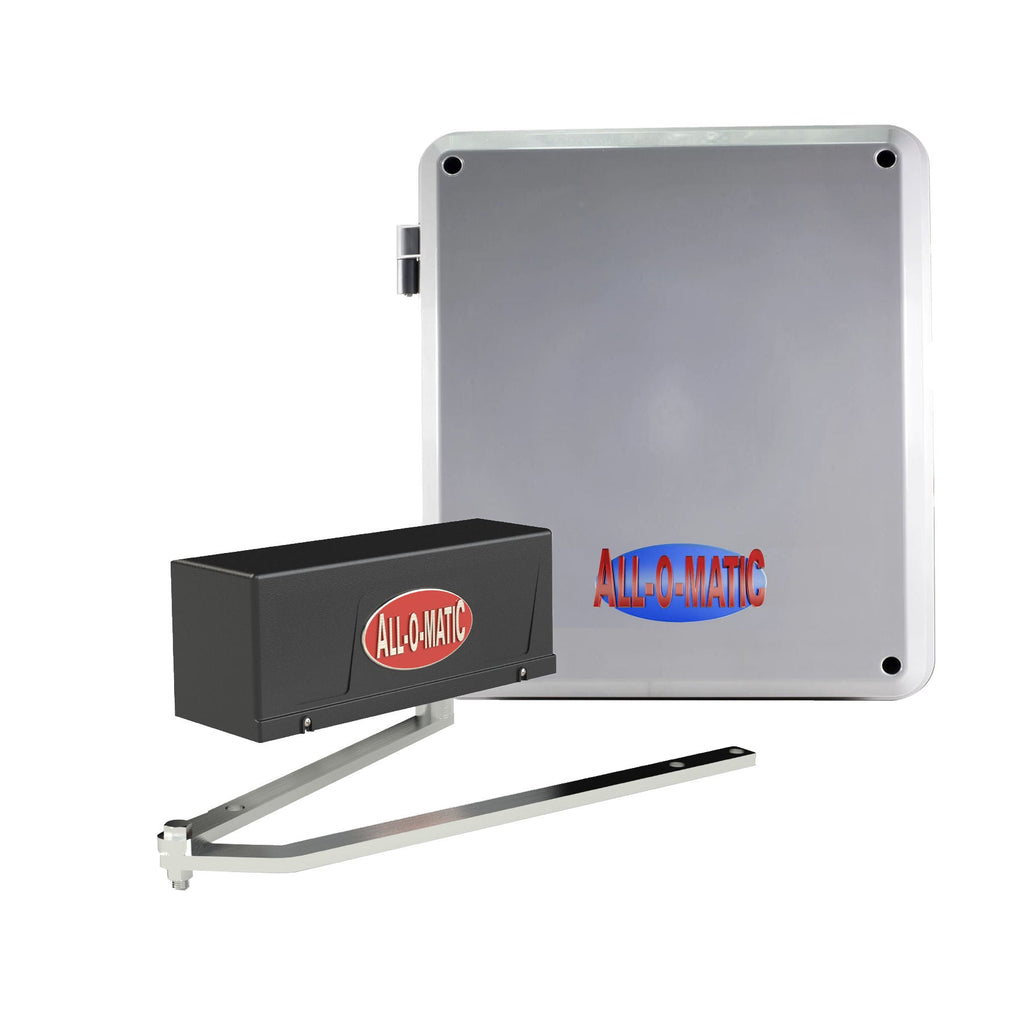

The All-O-Matic MACH-PRIME Swing Gate Operator is a compact, column-mount automation system designed for residential swing gates where space is limited and reliable performance is essential. Featuring smooth, quiet operation, integrated battery backup, and solar-ready capability, the MACH-PRIME delivers convenient automated access while maintaining a clean, low-profile appearance.
Designed for gates up to 500 lbs. and 8 feet in length, the MACH-PRIME utilizes a dependable 24VDC gearhead motor to provide consistent operation with minimal noise. The advanced control board includes programmable logic functions and an integrated charge controller optimized for solar applications, supporting both 12V and 24V solar panels up to 80 watts.
Integrated battery backup helps maintain operation during power outages, while the compact column-mount design makes the MACH-PRIME an excellent solution for residential properties, decorative gates, courtyards, and locations where traditional linear actuators may not be practical.
Key Features
- Compact column-mount swing gate operator
- Supports gates up to 500 lbs.
- Maximum gate length of 8 ft.
- Quiet and smooth gate operation
- Integrated battery backup system
- Solar compatible with 12V and 24V solar panels
- Advanced programmable control board
- Built-in charge controller for solar applications
- Manual keyed release for emergency operation
- UL 325 Compliant
- Ideal for residential and light-duty applications
Specifications
- Motor: 24VDC Gearhead Motor
- Maximum Gate Weight: 500 lbs.
- Maximum Gate Length: 8 ft.
- Opening Speed: Adjustable 14–25 Seconds per 90° Opening
- Power Input: 115/230 VAC Single Phase
- Solar Compatible: Yes (12V/24V Solar up to 80 Watts)
- Duty Cycle: 30 Minutes (Intermittent)
- Battery Backup: Integrated (2) 7Ah 12V Batteries
- Battery Capacity: Up to 250 Cycles
- Temperature Range: -20°F to 160°F
- Operator Dimensions: 5" D x 15" L x 15.75" H
- Control Box Dimensions: 16.75" H x 19.69" L x 7.88" D
Warranty
- 3-Year Residential Warranty
Applications
- Residential driveway gates
- Courtyard gates
- Decorative entry gates
- HOA entrances
- Column-mounted gate installations
- Properties requiring compact automation solutions
The All-O-Matic MACH-PRIME Swing Gate Operator combines compact design, solar-ready technology, battery backup protection, and quiet operation to provide dependable residential gate automation in applications where space and appearance matter.
