Description

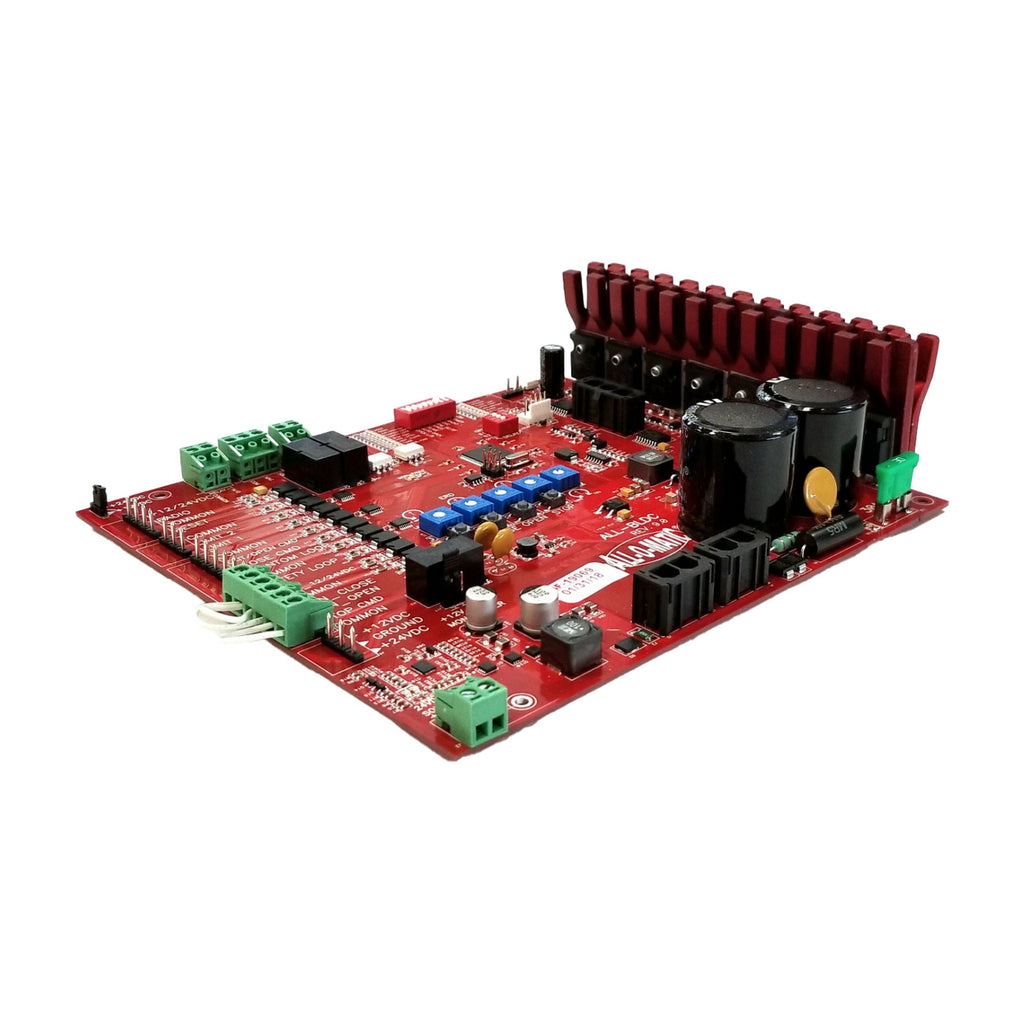

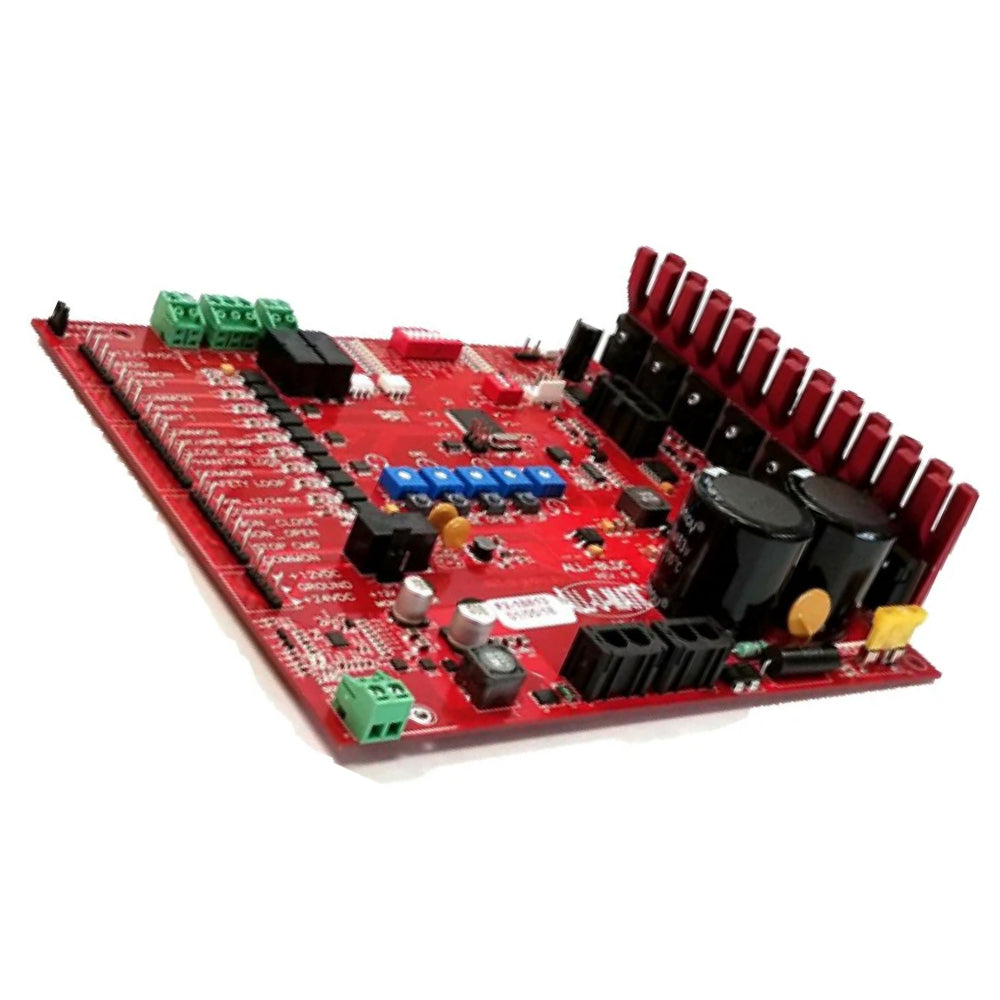

The All-O-Matic BLDC-ULPCB Control Board is a dependable replacement for 1/2 HP DC gate operators, restoring reliable motor control in systems that require monitored photoeye safety.
In practical applications, this board serves as a quick, secure restoration after a control board failure for both residential and commercial gates. It is designed to work with monitored photoeye safety systems to maintain safe operation and includes an Electronic Reversing Device (ERD) to stop and reverse motion when obstructions are detected. Programmable relay outputs allow you to tailor alarms or status indicators to the specific gate configuration, while the adjustable leaf delay helps synchronize dual-swing or sliding operation for smoother performance.
Compatible with 1/2 HP DC gate motors that require monitored photoeye systems; part of the ALL-BLDC manufacturing line.
- Perfect Replacement for 1/2 HP DC Motors: Designed to replace boards in 1/2 HP brushless DC gate openers, enabling straightforward installation and reliable operation.
- Monitored Photoeye Compatibility: Engineered to work with monitored photoeye safety systems to preserve safety compliance and full functionality.
- Electronic Reversing Device (ERD): Built-in ERD detects obstructions and reverses motion to protect people, pets, and property.
- Programmable Relay Functions: Customize outputs for alarms, indicators, or other security needs to fit your gate configuration.
- Adjustable Leaf Delay: Fine-tune the delay between gate leaves for smoother operation and precise control.
Unit specs
- Compatibility: 1/2 HP DC gate motors, with monitored photoeye requirement
- Operating Temperature: -40°F to 160°F (-40°C to 71°C)
- Outputs: ERD, programmable relays
- Manufacturing Line: ALL-BLDC
When a control board fails, the BLDC-ULPCB offers a dependable replacement that restores functionality and safety with monitored photoeyes. Designed for durability and efficiency, it’s ideal for both residential and commercial gate systems, helping you reduce downtime, maintain safe operation, and tailor control outputs to your security needs.
