Description

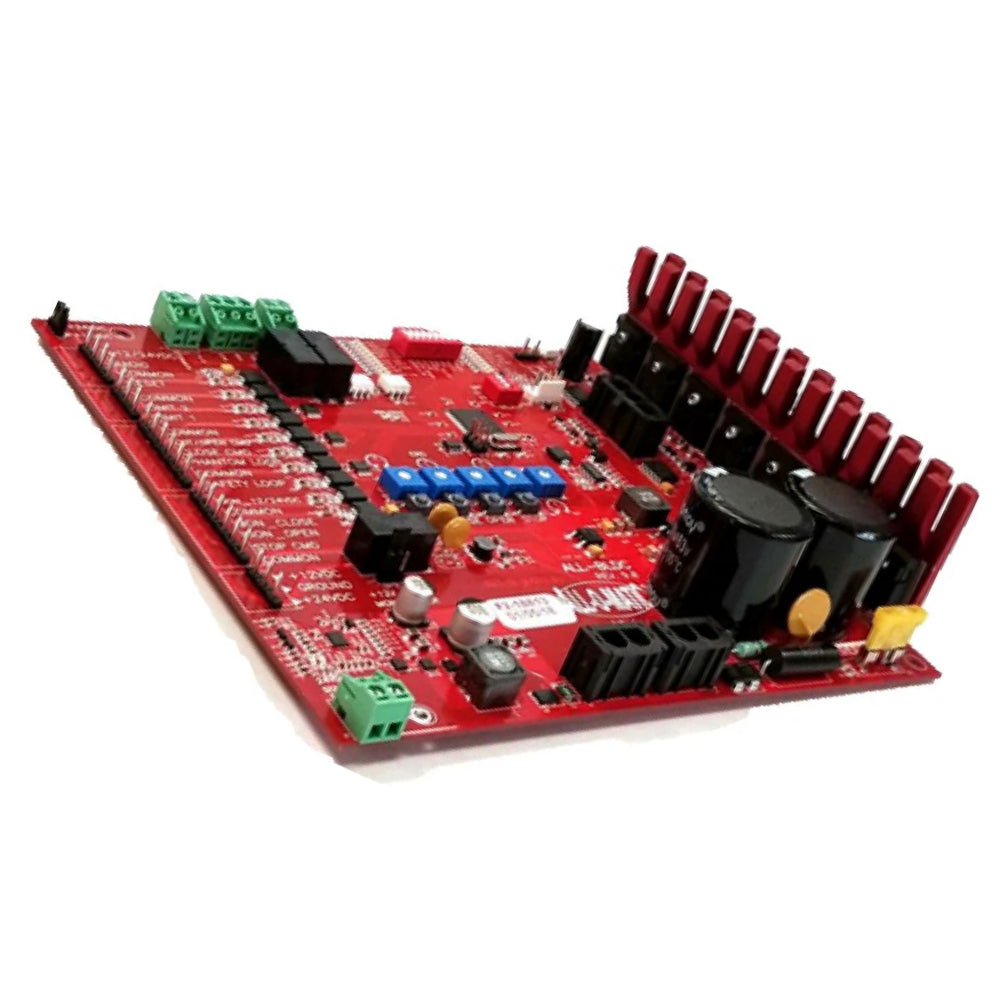

This All-O-Matic BLDC-PCB Control Board is a reliable replacement controller for pre-UL 1/2 HP DC gate motors, providing dependable drive control for older All-O-Matic gates.
Designed for residential and light commercial applications, this board serves as the primary control for aging gate systems, enabling a straightforward retrofit without UL safety monitoring requirements. It features an Electronic Reversing Device (ERD) to detect obstructions and automatically reverse gate motion, programmable relay outputs to coordinate alarms, lighting, or auxiliary controls, and an adjustable leaf delay to keep dual-leaf operation smooth and synchronized. The unit operates across a wide temperature range (-40°F to 160°F / -40°C to 71°C), making it suitable for varied environments. This board is part of the ALL-BLDC circuit board family, designed to deliver reliable performance with All-O-Matic components.
Compatibility: All-O-Matic 1/2 HP DC gate motors manufactured before 2016. Non-UL compliant (no monitored photoeyes required).
