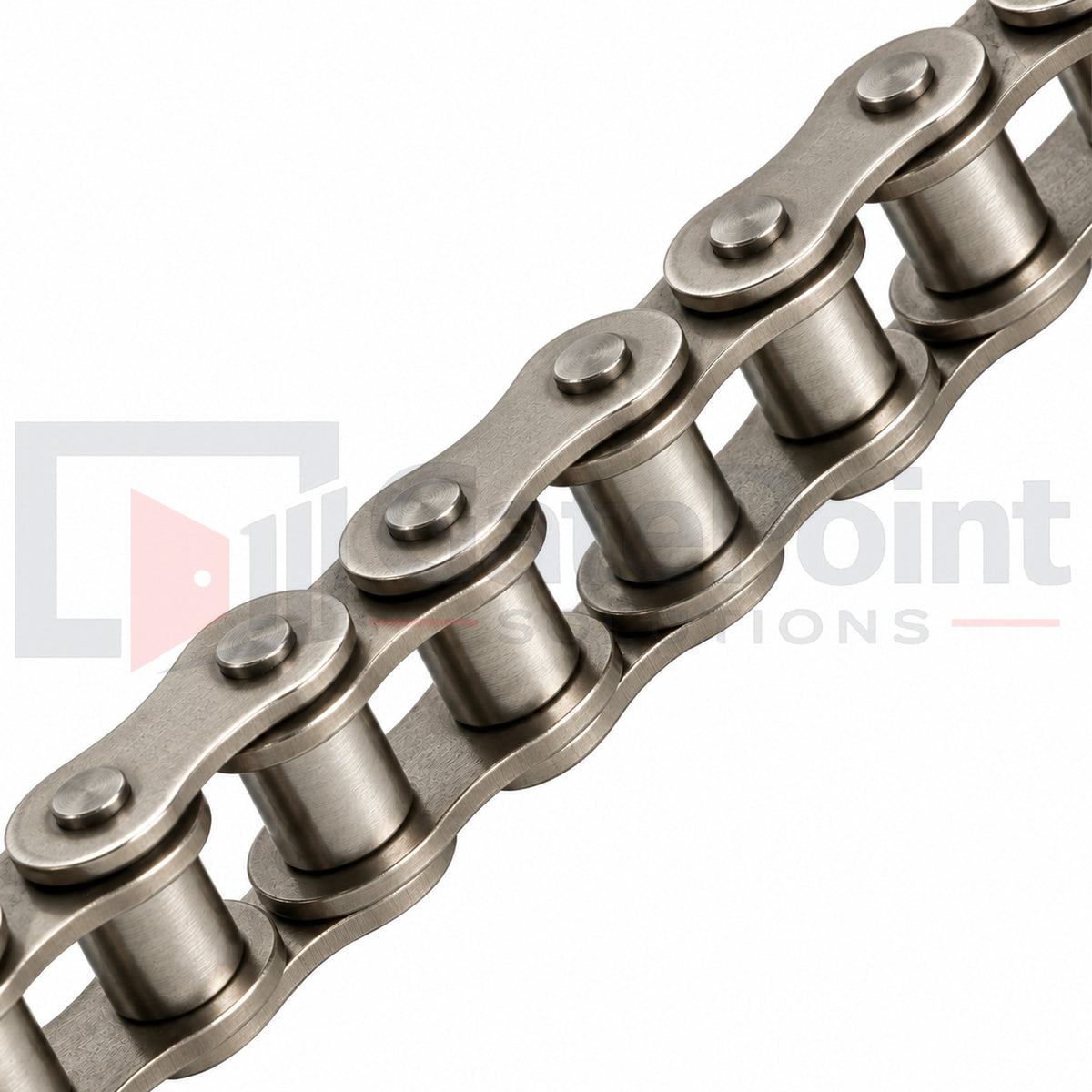

All-O-Matic #40 Nickel-Plated Roller Chain – 10' Box | Sliding Gate Operator Drive Chain

The All-O-Matic #40 Nickel-Plated Roller Chain – 10' Box is a durable steel roller chain designed for compatible residential, commercial, and light-industrial automatic sliding gate operator applications. Supplied in a convenient 10-foot boxed length, this nickel-plated chain provides a practical solution for new gate installations, replacement chain assemblies, routine maintenance, and chain-drive repairs.

Manufactured in the ANSI #40 roller chain configuration, this chain features a nominal 1/2-inch pitch and is designed to engage with properly matched #40 roller chain sprockets. Its steel construction supports mechanical power transmission in compatible chain-driven gate systems, allowing the operator's drive sprocket to transfer rotational force through the chain assembly to move the gate during opening and closing cycles.

The nickel-plated finish provides additional surface corrosion protection compared with conventional standard black steel roller chain. This protective metallic coating helps reduce exposure of the underlying steel to moisture and environmental conditions, making nickel-plated chain a practical option for outdoor automatic gate installations where humidity, rain, and condensation may contribute to corrosion.

The 10-foot boxed configuration is particularly convenient for professional gate installers and maintenance technicians who need manageable quantities of #40 roller chain without purchasing a full 100-foot reel. The chain can be measured and cut to the appropriate length using suitable roller chain tools, then connected using compatible #40 connecting links and the attachment hardware specified for the installation.

Whether replacing worn drive chain, repairing a damaged section, or assembling a new chain-drive system, the All-O-Matic #40 Nickel-Plated Roller Chain – 10' Box provides a corrosion-resistant chain option for properly specified automatic sliding gate operators.

Key Features & Benefits

• ANSI #40 Roller Chain: Designed for chain-drive applications requiring compatible standard #40 roller chain.

• 10-Foot Boxed Length: Convenient quantity for gate installations, repairs, replacement projects, and maintenance inventory.

• Nickel-Plated Steel Construction: Combines conventional steel roller chain construction with a protective metallic surface finish.

• Enhanced Corrosion Resistance: Nickel plating provides additional protection against moisture-related corrosion compared with conventional unplated steel.

• 1/2-Inch Nominal Chain Pitch: Matches the standard pitch of ANSI #40 roller chain.

• Residential & Commercial Gate Applications: Suitable for appropriately specified sliding gate operators.

• Reliable Power Transmission: Transfers mechanical drive force through a properly aligned chain-and-sprocket assembly.

• Compatible Sprocket Engagement: Designed for use with appropriately matched #40 roller chain sprockets.

• Cut-to-Length Flexibility: Allows installers to prepare the required chain length using proper roller chain cutting tools.

• Replacement Drive Chain: Practical for replacing worn, elongated, damaged, or deteriorated roller chain assemblies.

• Professional Installation Convenience: Boxed format is easy to organize, transport, and store with gate operator service supplies.

• Outdoor Gate Applications: Suitable where nickel-plated steel chain meets the installation's environmental requirements.

• Maintenance & Repair Applications: Useful for service technicians maintaining compatible automated sliding gate systems.

• All-O-Matic Chain & Drive Component: Intended for properly specified automatic gate operator installations and replacement projects.

Technical Specifications

Note: Chain dimensions are nominal ANSI #40 roller chain specifications. Exact manufacturing tolerances, tensile strength, working-load ratings, plating thickness, lubrication condition, and included accessories should be verified against the applicable product specifications.

Applications

The All-O-Matic 40NPX10 Nickel-Plated Roller Chain is intended for compatible automatic sliding gate systems requiring ANSI #40 roller chain.

Common applications include:

• Residential Sliding Gate Operators: Replacement drive chain for compatible automated driveway gates and private entrances.

• Commercial Sliding Gate Systems: Chain-drive installations at offices, retail facilities, business properties, and secured entrances.

• Light-Industrial Gate Automation: Compatible sliding gate operators used at warehouses, storage facilities, and service centers.

• Outdoor Gate Installations: Applications where nickel plating provides useful additional corrosion protection.

• Chain Replacement Projects: Replacing worn, stretched, damaged, or corroded roller chain assemblies.

• Gate Operator Repairs: Restoring mechanical chain-drive systems following damage or excessive wear.

• Custom-Length Installations: Cutting the supplied 10-foot chain to the appropriate length for compatible equipment.

• Preventative Maintenance: Replacing deteriorated roller chain to help maintain reliable gate operation.

• Service Inventory: Keeping replacement #40 nickel-plated roller chain available for installation and maintenance projects.

Compatibility & Installation Information

The All-O-Matic 40NPX10 #40 Nickel-Plated Roller Chain is designed for compatible automatic sliding gate operators utilizing ANSI #40 roller chain.

It may be used with All-O-Matic and other manufacturers' chain-driven gate systems when the chain size, sprocket configuration, and mechanical requirements match the installation.

Before installation, verify the following:

• Correct Chain Size: Confirm the operator requires ANSI #40 roller chain.

• Chain Pitch: Verify the required nominal pitch is 1/2 inch.

• Sprocket Compatibility: Ensure the drive and idler sprockets are properly matched to #40 roller chain.

• Chain Length: Measure the required chain run before cutting or installing replacement chain.

• Chain Alignment: Maintain proper alignment between the chain, sprockets, and gate attachment points.

• Chain Tension: Adjust chain tension according to the operator manufacturer's specifications.

• Connecting Links: Use compatible ANSI #40 connecting links and appropriate retaining hardware.

• Lubrication: Follow the chain and operator manufacturer's maintenance recommendations.

• Mechanical Condition: Inspect sprockets, chain guides, and related components for excessive wear or damage.

Important: ANSI #40 and ANSI #41 roller chains both use a nominal 1/2-inch pitch, but their dimensions and mechanical characteristics differ. They should not be considered interchangeable without verifying compatibility.

ANSI #50 roller chain uses a larger 5/8-inch pitch and is not interchangeable with ANSI #40 chain.

Not all All-O-Matic sliding gate operators require #40 roller chain. Always confirm the chain size specified for the exact operator model before ordering.

Disconnect power and secure the gate against unintended movement before servicing the chain-drive system.

What Is Nickel-Plated Roller Chain?

Nickel-plated roller chain is a steel power-transmission chain featuring a protective nickel coating applied to its metal components.

A typical roller chain assembly consists of interconnected inner and outer link plates, pins, bushings, and rollers. These components articulate around compatible sprockets to transfer mechanical force through the chain-drive assembly.

Nickel plating provides an additional protective surface layer that helps reduce corrosion compared with conventional unplated steel chain.

Advantages of Nickel-Plated Roller Chain

• Enhanced Corrosion Protection: Helps protect exposed steel components from moisture-related corrosion.

• Steel Chain Construction: Provides a practical mechanical drive solution for compatible equipment.

• Mechanical Power Transmission: Transfers drive force through properly matched sprockets and chain assemblies.

• Standardized Chain Dimensions: ANSI #40 sizing helps installers identify compatible replacement components.

• Flexible Installation Lengths: Chain can be cut to accommodate the required installation.

• Outdoor Application Benefits: Useful where environmental exposure makes additional surface protection desirable.

• Practical Maintenance Solution: Suitable for replacing worn or damaged chain in compatible systems.

Nickel-plated roller chain is not completely rust-proof. Surface damage, inadequate lubrication, road salt, moisture, and environmental contaminants can still contribute to corrosion and accelerated wear.

Nickel-Plated vs. Standard Black vs. Dacromet vs. Stainless Steel Roller Chain

Choosing the appropriate roller chain finish helps support long-term gate operator performance.

Nickel-Plated Roller Chain

Nickel-plated roller chain combines conventional steel construction with an additional protective metallic finish. It is a practical option for compatible gate installations where improved corrosion resistance is desirable without switching to stainless steel.

Standard Black Roller Chain

Standard black steel roller chain provides a conventional power-transmission solution for compatible gate operators. It generally requires greater attention to corrosion prevention in exposed outdoor environments.

Dacromet-Coated Roller Chain

Dacromet-coated roller chain uses a protective zinc-aluminum coating designed to improve corrosion resistance in demanding environmental conditions.

Stainless Steel Roller Chain

Stainless steel roller chain offers corrosion resistance through the composition of the base metal, making it beneficial in certain moisture-prone environments.

However, stainless steel chain is not automatically stronger or more wear-resistant than properly specified carbon steel chain.

Important: Chain finish does not determine mechanical strength by itself. Always verify the required chain specifications, working load, and operator compatibility before selecting a replacement.

10-Foot Box vs. 100-Foot Reel

All-O-Matic offers roller chain in multiple packaging configurations to accommodate different installation and maintenance requirements.

Benefits of the 10-Foot Box

The 10-foot box is ideal for installers and technicians who need a manageable quantity of replacement roller chain without purchasing a larger reel.

It is particularly useful for:

• Individual sliding gate operator repairs.

• Replacing shorter sections of damaged chain.

• Maintaining limited quantities of service inventory.

• Transporting replacement chain in service vehicles.

• Purchasing chain for occasional maintenance projects.

Benefits of the 100-Foot Reel

The 100-foot reel is a practical choice for professional gate installation companies and maintenance departments that regularly service multiple chain-driven operators.

Bulk chain quantities can help simplify inventory management and provide greater flexibility when preparing custom chain lengths.

Understanding ANSI #40 Roller Chain Dimensions

ANSI roller chain sizes identify standardized chain dimensions used for matching chain to sprockets and other drive components.

For ANSI #40 roller chain, the nominal pitch is 1/2 inch (12.7 mm).

Chain pitch is measured from the center of one chain pin to the center of the adjacent pin.

Other important measurements include:

• Roller Diameter: Determines how the roller engages with the sprocket tooth profile.

• Inner Width: Helps establish compatibility with sprocket tooth thickness.

• Pin Diameter: Influences the dimensions of the chain's connecting components.

• Plate Dimensions: Affect the chain's construction and mechanical characteristics.

• Chain Strength: Must be appropriate for the mechanical loads encountered during operation.

Even when two chains have similar appearances or share the same pitch, differences in roller dimensions and construction can make them incompatible.

Using an incorrectly sized chain may cause improper sprocket engagement, excessive wear, chain skipping, or drive-system damage.

Roller Chain Maintenance & Replacement

Routine maintenance is essential for reliable automatic sliding gate operation.

During inspection, technicians should evaluate the condition of the roller chain, sprockets, connecting links, and related drive components.

Common Signs of Roller Chain Wear

• Excessive Chain Elongation: Wear at the pins and bushings can increase the effective chain pitch over time.

• Corrosion or Rust: Moisture exposure can damage steel components and interfere with normal chain movement.

• Stiff or Binding Links: Contamination, corrosion, or inadequate lubrication may restrict articulation.

• Damaged Rollers: Worn or broken rollers can interfere with proper sprocket engagement.

• Loose or Damaged Connecting Links: Improperly secured or deteriorated links can compromise the chain assembly.

• Irregular Gate Movement: Chain-drive wear, poor alignment, or improper tension may contribute to inconsistent operation.

• Excessive Mechanical Noise: Unusual chain or sprocket noise may indicate a maintenance issue.

Recommended Maintenance Practices

Inspect the chain at intervals appropriate for the gate operator's duty cycle and operating environment.

Maintain correct chain alignment and tension, lubricate according to manufacturer recommendations, and replace worn or damaged components.

When installing replacement chain, inspect the drive and idler sprockets for excessive wear. Severely worn sprockets can accelerate deterioration of newly installed chain.

Why Choose All-O-Matic Gate Operator Components?

All-O-Matic manufactures automatic gate operators and related accessories for residential, commercial, and industrial access control applications. Its product offerings include sliding gate operators, swing gate operators, control systems, and replacement components.

Properly specified roller chain is essential for maintaining consistent mechanical power transmission and dependable automated gate movement.

The All-O-Matic 40NPX10 #40 Nickel-Plated Roller Chain – 10' Box provides professional installers and maintenance technicians with a corrosion-resistant steel chain option for compatible ANSI #40 chain-drive systems.

Its combination of nickel-plated steel construction, 10-foot boxed packaging, and ANSI #40 sizing makes it a practical choice for new installations, replacement projects, and routine gate operator maintenance.
