Description

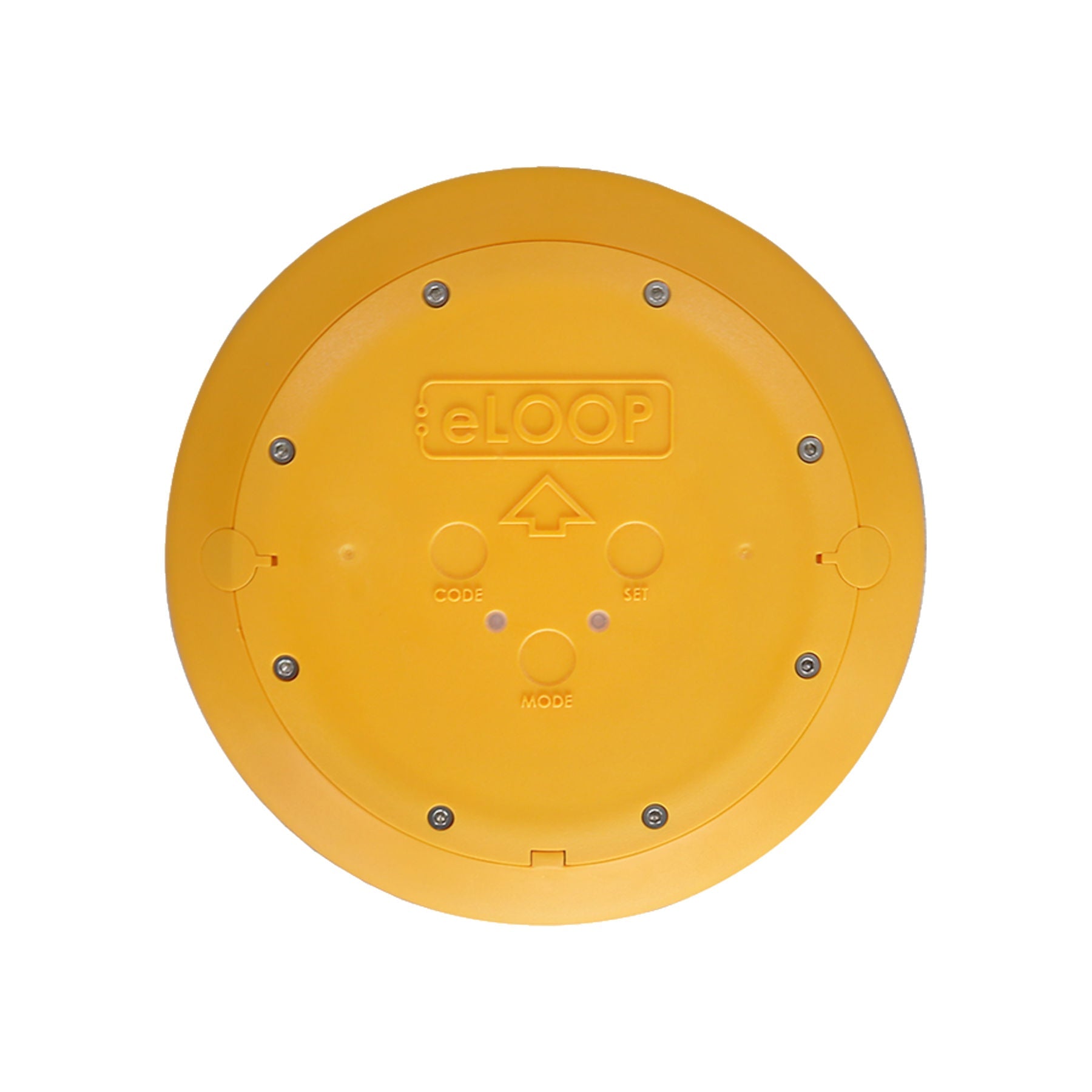

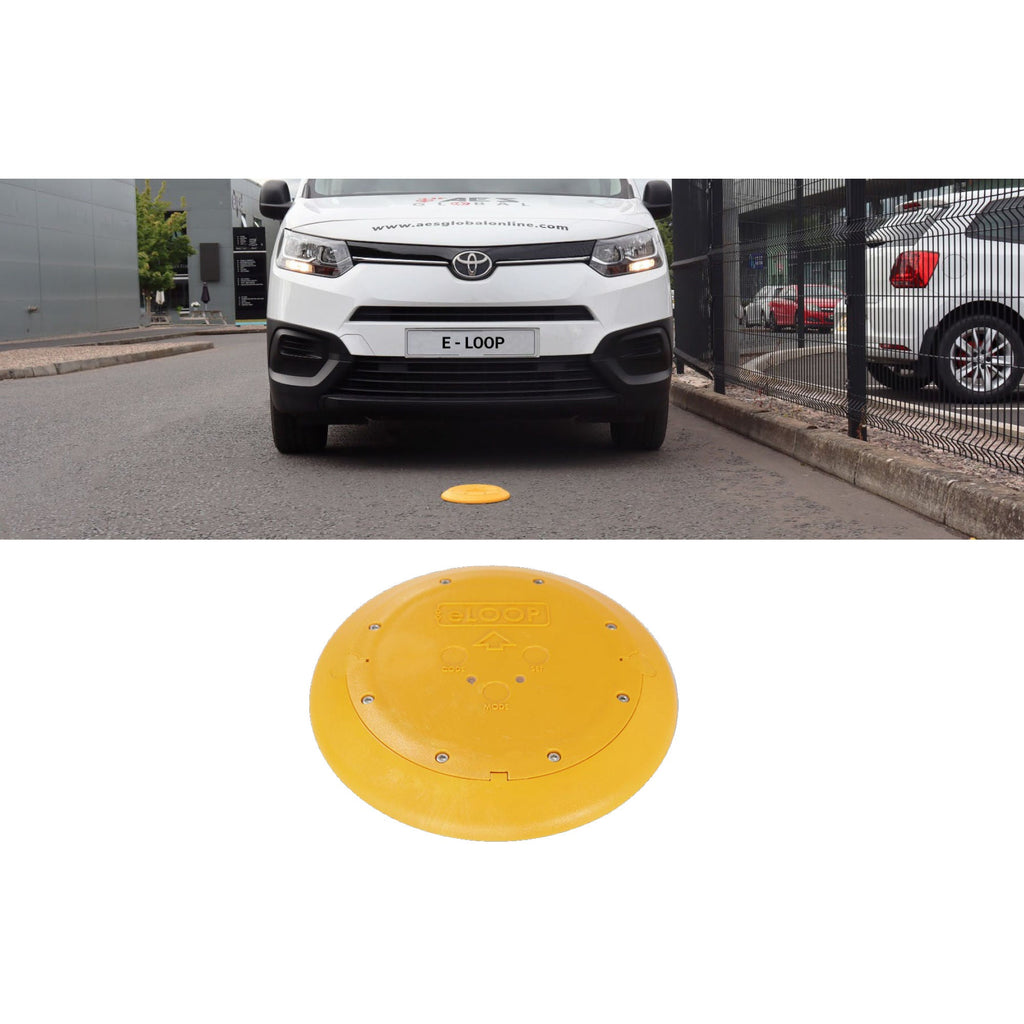

Revolutionize gate automation with the AES E-Loop Surface Mounted Wireless Detection System—a wireless vehicle detection solution built for commercial gates, parking facilities, and controlled entry points. It replaces traditional exit and safety loops with a flexible, trenchless, maintenance-friendly technology that integrates seamlessly with your existing gate controls.
- Wireless Installation: Eliminates trenching and hardwiring, enabling a fast, cost-effective upgrade for commercial gates and parking facilities.
- Detection Modes: Exit Mode (EL00C) detects vehicles as they exit, automatically triggering the gate to open; Presence Mode with Radar (EL00C-RAD) detects vehicles in the gate path to prevent premature closure—ideal for areas with slow or stationary vehicles.
- Detection Technology: Combines magnetometer sensors with optional radar—providing robust detection across a range of vehicle speeds and sizes.
- Secure, Long-Range Communication: 128-bit AES encrypted wireless signals and a transmission range up to 200 meters (varying by transceiver model) ensure reliable, secure operation.
- Power & Durability: Battery-powered by four 3.6V lithium cells delivering up to 10 years of service; IP68-rated enclosure withstands dust, water, and heavy vehicle traffic.
- Operating Conditions: Designed for wide temperature ranges (-4°F to 176°F / -20°C to 80°C) to perform consistently in harsh outdoor environments.

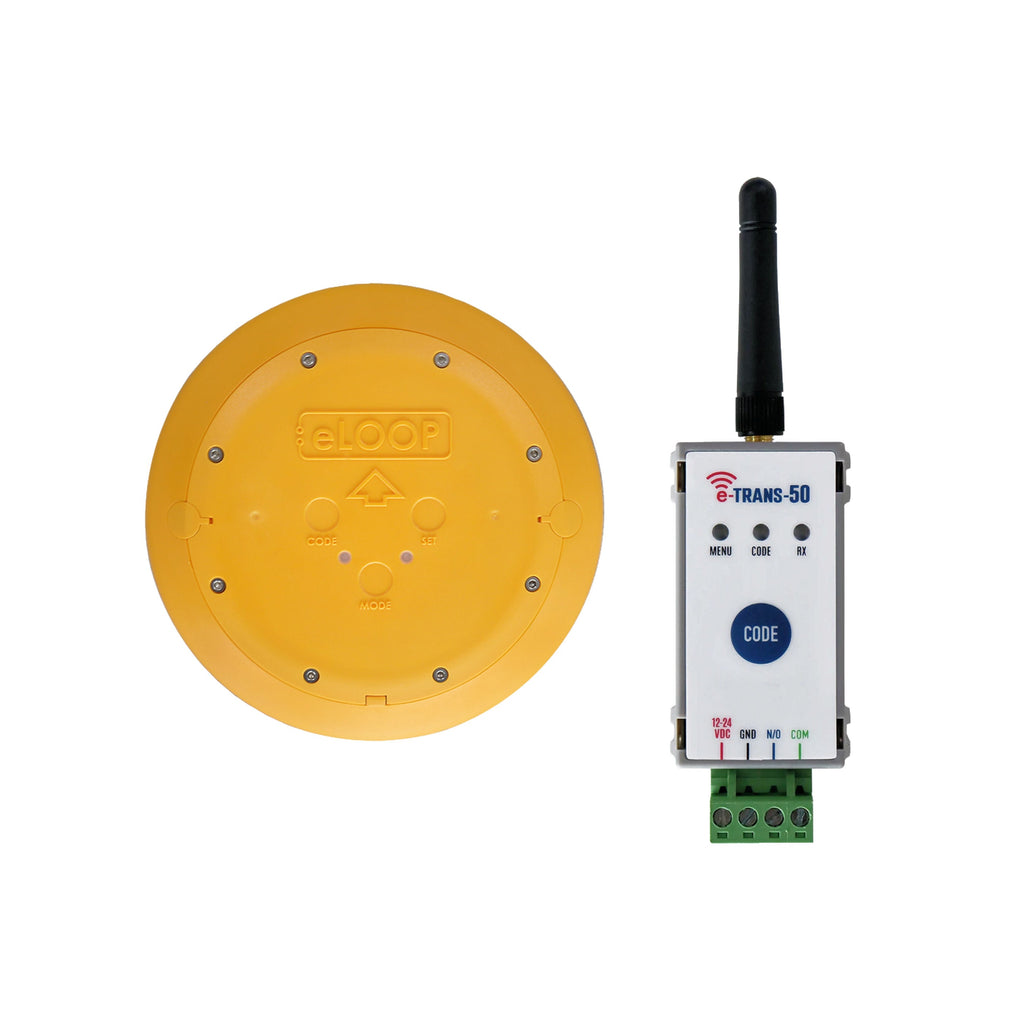

- Product Variants & Kit Options: EL00C (Exit Mode) for detecting departing vehicles and triggering gate openings; EL00C-RAD (Presence Mode with Radar) for detecting vehicles in the path; Kit options include Standard Range (Exit or Presence) and Extended Range (Exit) configurations to scale with site needs.
- Frequency: 433.39 MHz for reliable wireless communication in industrial settings.

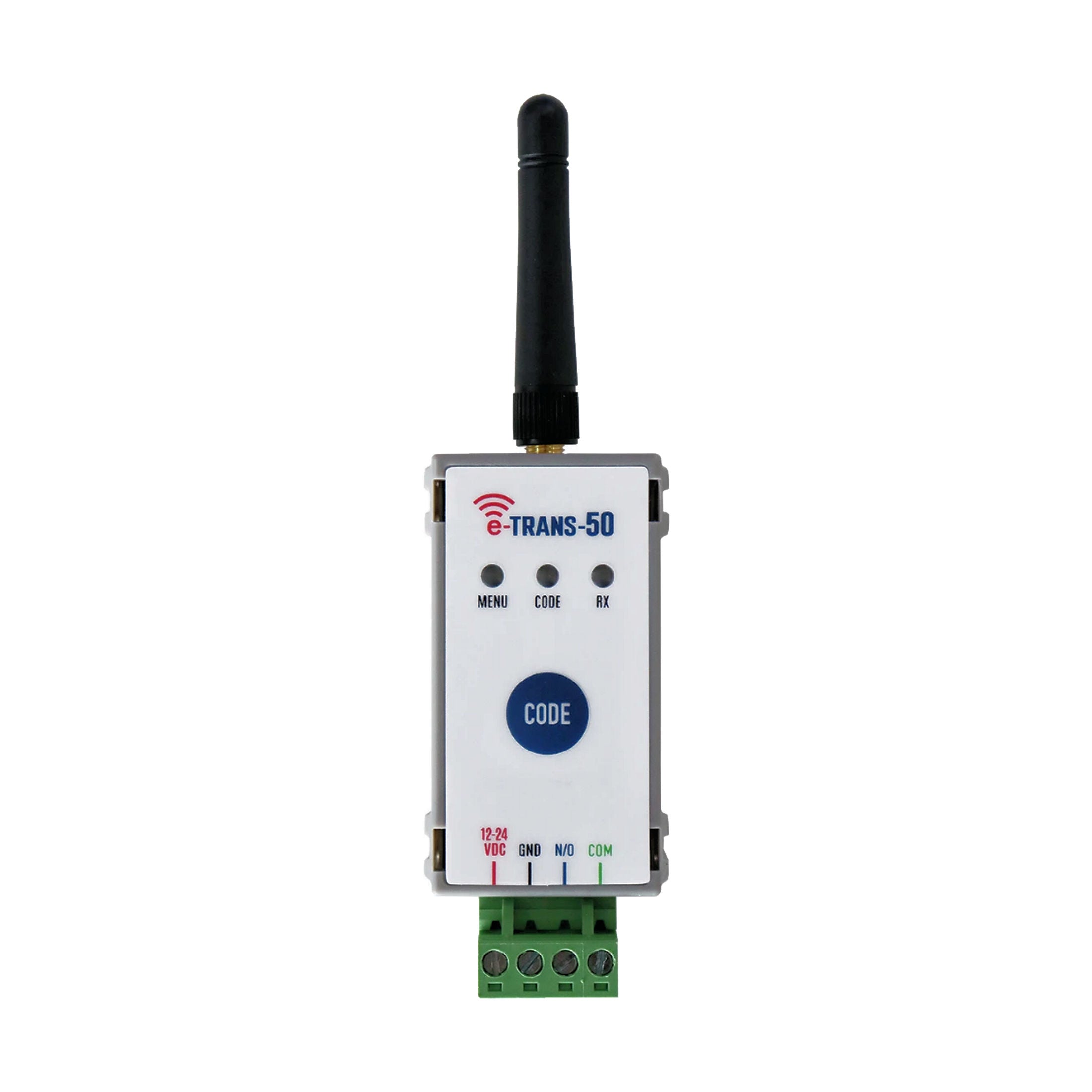

The AES E-Loop is designed to integrate with your gate system via an e-Trans transceiver, delivering precise, responsive control without the complexity of wired loops. Whether you manage a busy parking garage, a gated community, or a commercial loading zone, this system provides a scalable, secure, and low-maintenance solution that minimizes downtime and installation costs. With its long battery life, rugged IP68 housing, and flexible detection modes, it’s a forward-looking choice for modern gate automation.
