Description

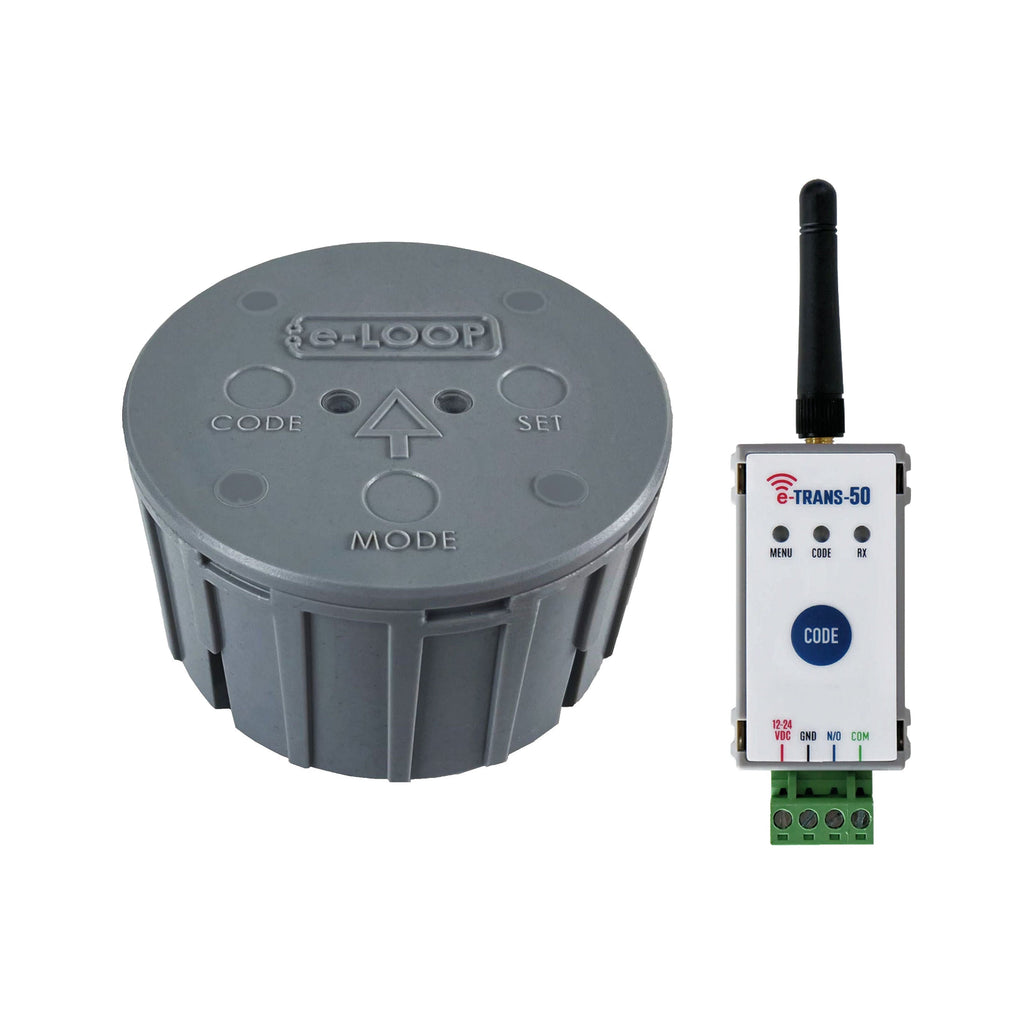

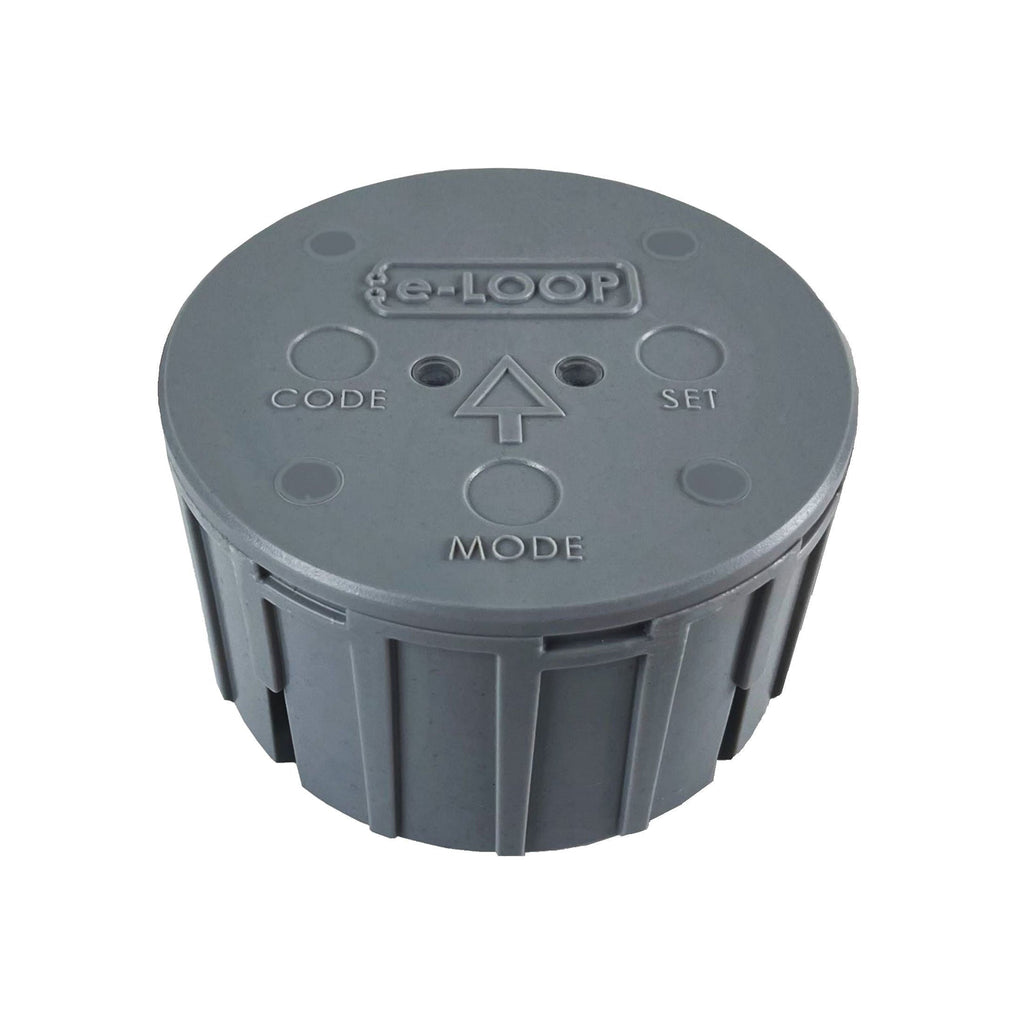

The AES E-Loop In-Ground Wireless Vehicle Detection System is a trench-free, wireless solution crafted for commercial gate automation. It’s ideal for parking lots, gated entries, and high-traffic facilities that need reliable vehicle detection without the complexity of wired loops.

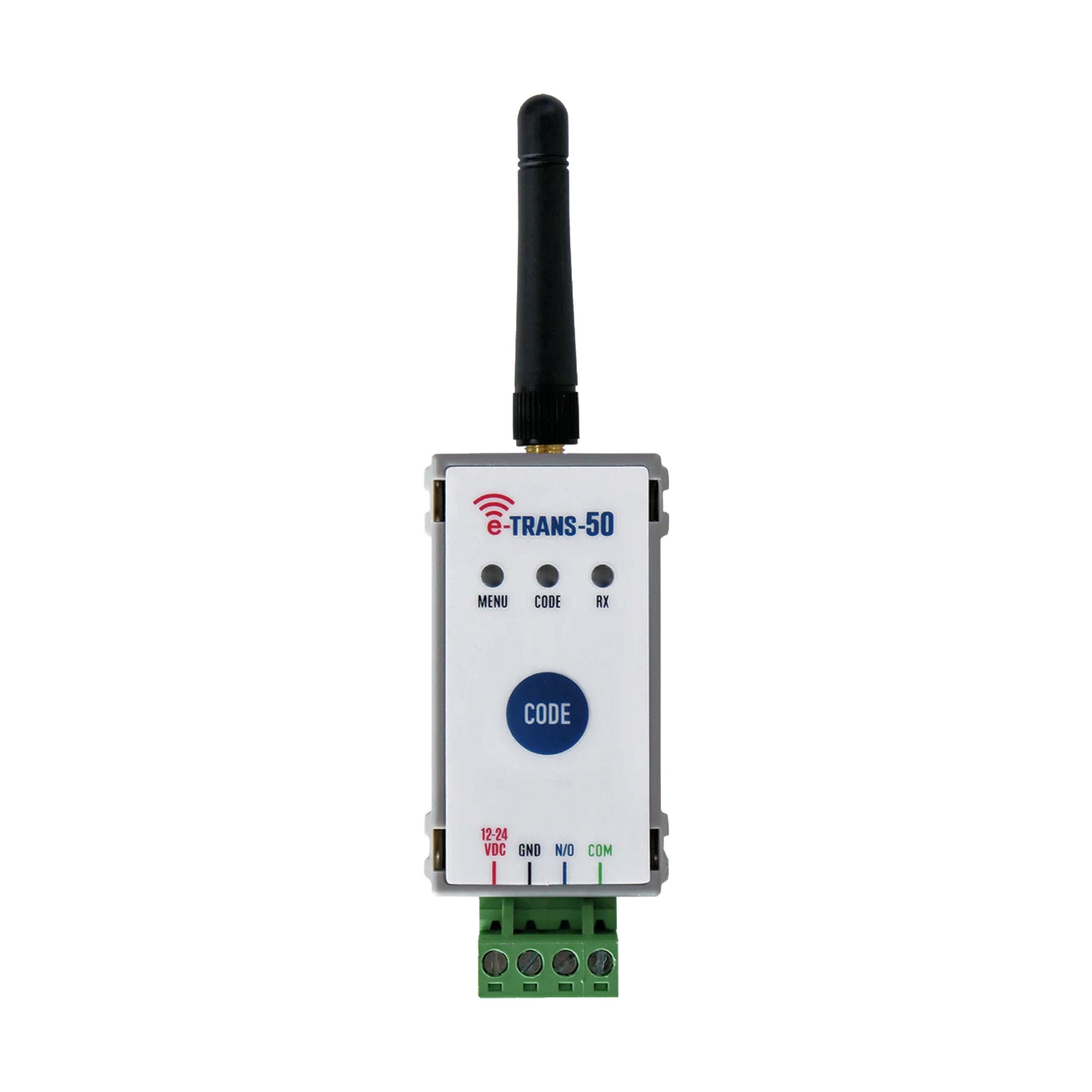

- Wireless Installation: Eliminates ground trenching and hardwiring, dramatically reducing installation time and costs; communicates with gate control via e-Trans transceivers.
- Detection Modes: Exit Mode (EL00IG) detects departing vehicles to trigger gate opening; Presence Mode with Radar (EL00IG-RAD) detects vehicles in the path, preventing premature gate closure.
- Sensor Technology: Uses magnetometer sensors for precise detection; optional radar in presence mode enhances accuracy in busy environments.
- Security & Privacy: 128‑bit AES encryption ensures secure wireless communication between the loop and gate system.
- Power & Lifespan: Battery powered by four 3.6V 2700mAh lithium cells, offering up to 10 years of service with minimal maintenance.
- Durability: Built for harsh conditions with IP68 waterproof rating and an operating temperature range from -4°F to 176°F, ideal for outdoor installations and heavy traffic.
- Communication Range: Radio frequency 433.39 MHz; transmit range of 50 to 200 meters depending on the e-Trans transceiver (models 50, 100, or 200).
- Product Variants: EL00IG (Exit Mode) detects vehicles leaving the property to open gates; EL00IG-RAD (Presence Mode with Radar) detects vehicles in the gate path to keep the gate open as long as a vehicle is present; both variants integrate with appropriate e-Trans transceivers and kit options.
By replacing wired loops with the AES E-Loop, you gain faster installation, lower trenching costs, and a scalable detection solution that adapts to your site. Exit Mode ensures smooth traffic flow as vehicles depart, while Presence Mode with Radar keeps gates open when a vehicle is present, reducing unnecessary wear and stop-start cycles. The long battery life minimizes maintenance visits, and 128-bit AES encryption protects communications from interference. With IP68 protection and an wide operating temperature range, this system thrives in rain, dust, and heavy vehicle traffic, making it a reliable choice for commercial entrances, parking facilities, and high-traffic access points. For installers, seamless integration with gate controllers via e-Trans transceivers enables quick deployment and predictable performance.
