Description

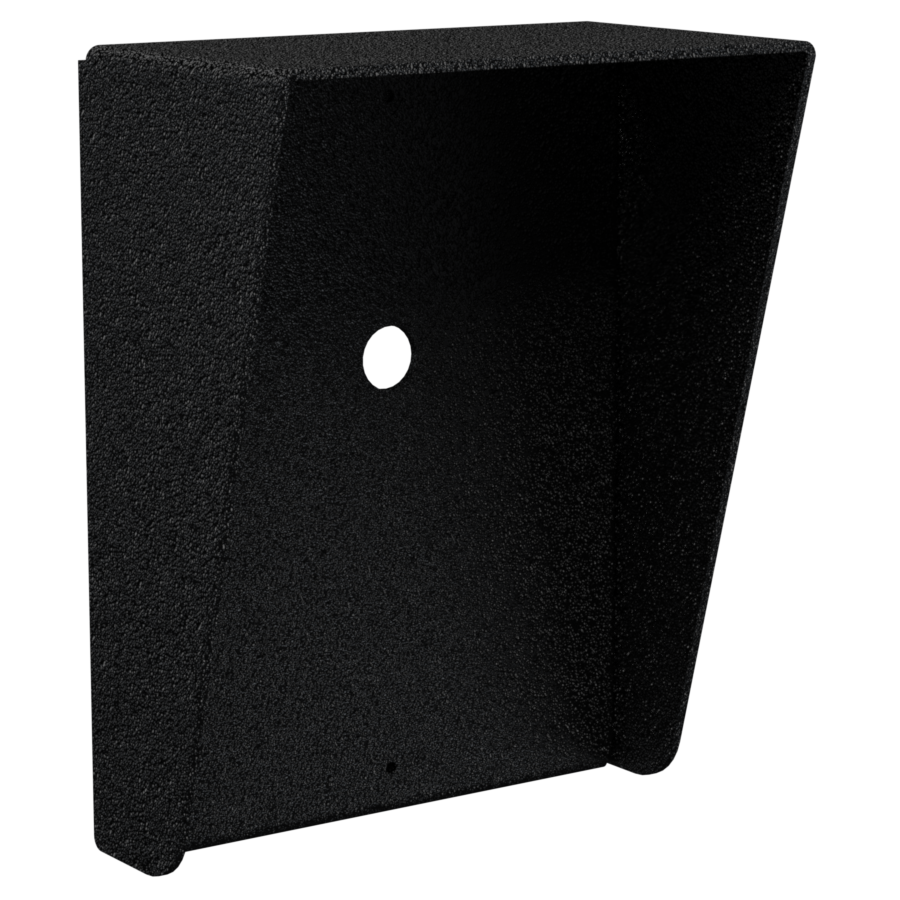

Protective, non-proprietary outdoor rain guard for the HID 6005 ProxPoint Plus Reader. Designed for outdoor pedestrian and vehicular access points, this 4.5x6-inch steel hood shields the reader from rain, snow, and sun while maintaining a sleek, low-profile installation.
- Material: 14-gauge steel with outdoor polyester powder-coat and UV inhibitor
- Finish: Black wrinkle powder-coat
- Color: Black
- Top overhang: 2.75" to shield the reader from rain, snow, and sun exposure
- Dimensions: 6" x 4.5" x 2.75" (H x W x D); Box dimensions 8" x 6.5" x 5.75"
- Back box:.5" deep back box with removable back mounting plate for a low-profile footprint
- Face plate: Single gang cutout designed for HID 6005 ProxPoint Plus Reader
- Mounting: Hidden mounting hardware; knockouts indicate where to drill holes for surface mounting
- Compatibility: Designed to be used with single-gang electrical boxes for devices deeper than 0.5"
- Origin: Made in the United States of America
- Customization: Optional powder-coating colors and modified height, width, or depth; additional costs and lead times may apply
- Included design support: Pedestal PRO offers fast CAD designs and quotes; free design assistance within 48 hours
The 456HOO-HID-01-CRS Steel Hood is engineered to extend the life of the HID 6005 ProxPoint Plus Reader by providing robust weather protection at key entry points like pedestrian gates, parking facilities, and vehicle entrances. Its durable 14-gauge steel construction, UV-inhibited outdoor coating, and 2.75" top overhang work together to guard against rain, snow, and sun damage, helping maintain readability and reliability in harsh environments. The removable back mounting plate enables a low-profile footprint and a clean install when used with single-gang electrical boxes, while hidden hardware preserves a tidy, professional look. If you need a tailored solution, Pedestal PRO can design a custom hood configuration—color, size, or depth adjustments—within 48 hours, with CAD drawings and quotes available before you buy.
