Description

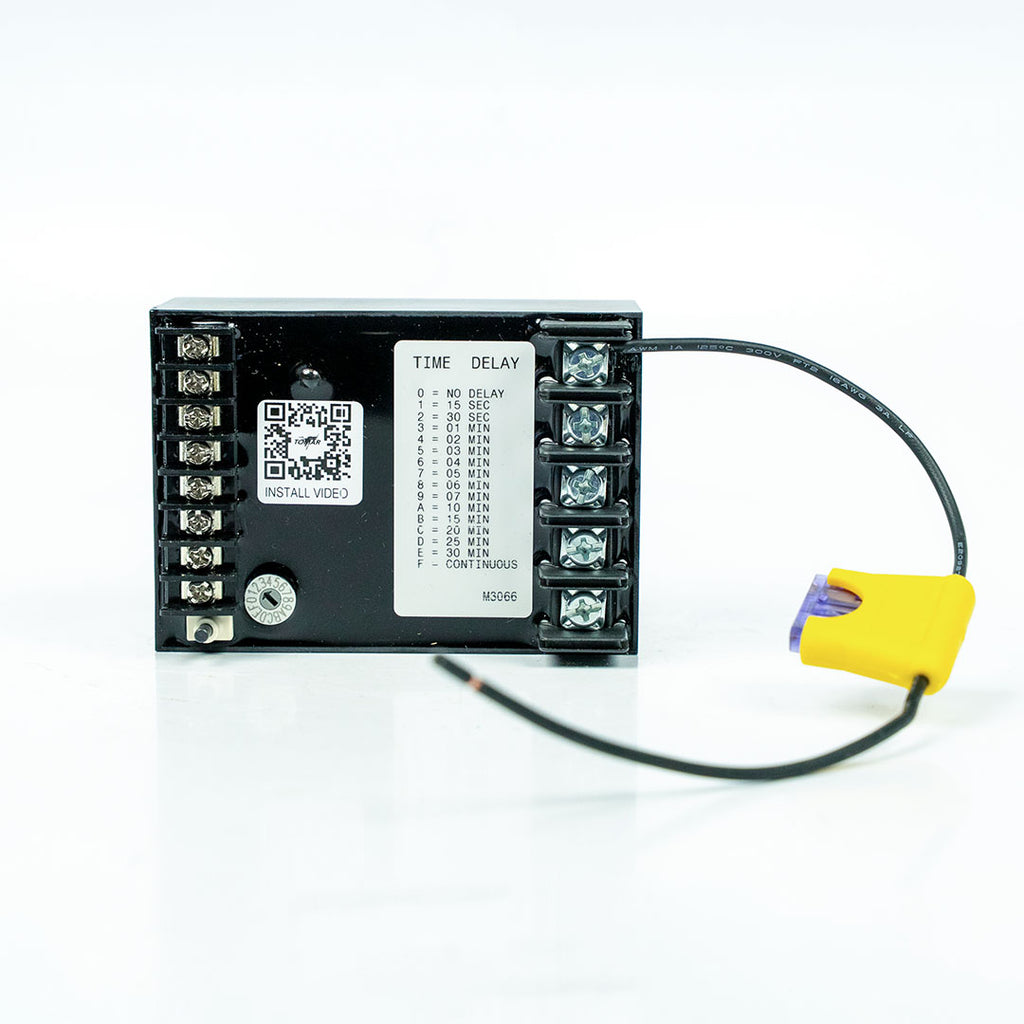

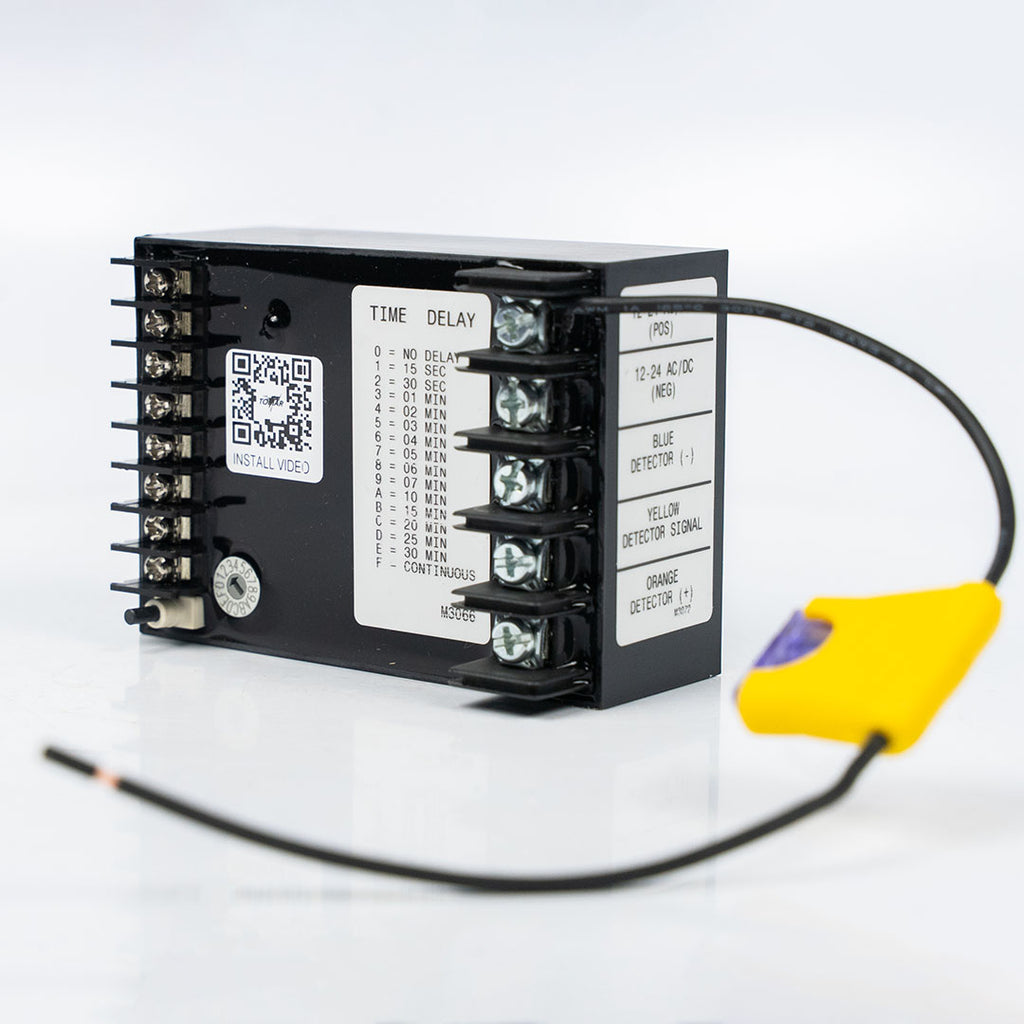

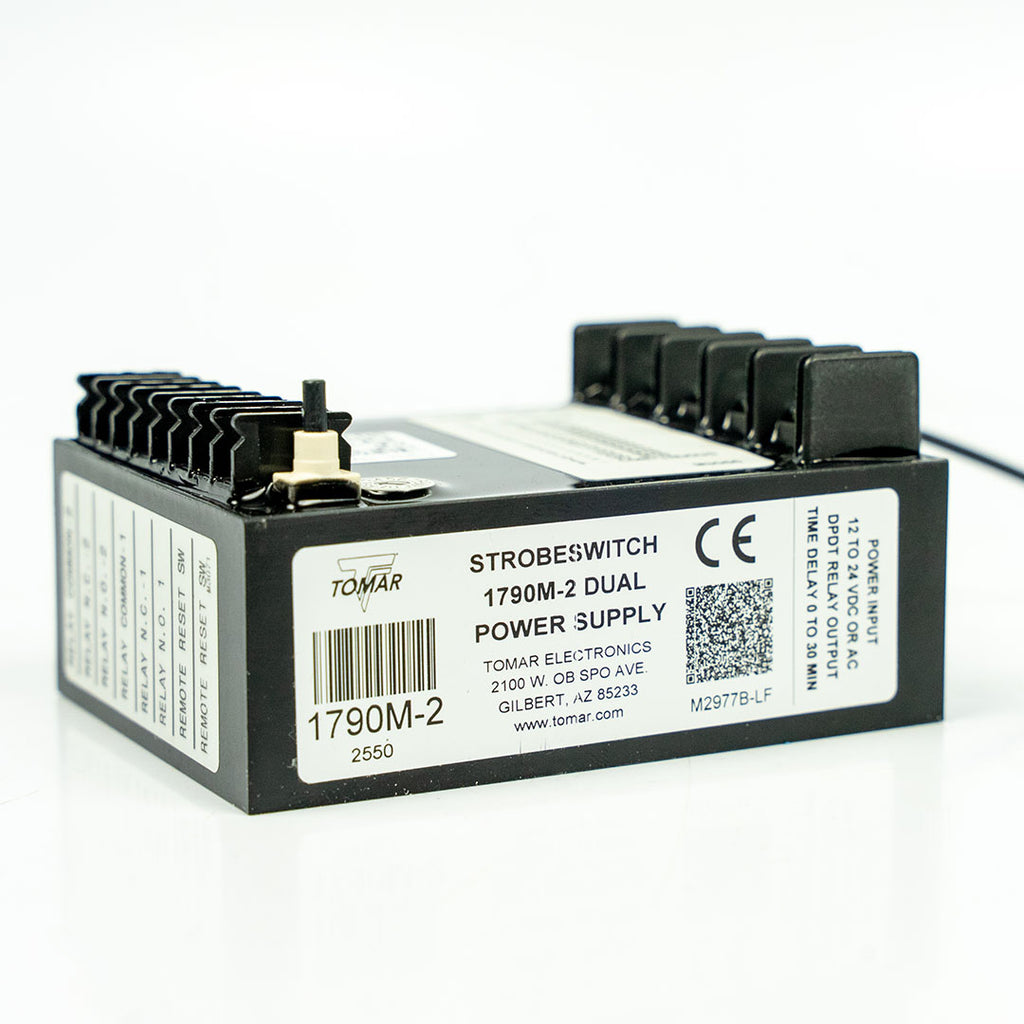

The Tomar 1790M-2 Power Module is a compact power hub designed to drive up to three 1790-1014 STROBESWITCH detectors from a single supply. It’s ideal for security systems that require synchronized strobe signaling, flexible timing, and easy remote control.
- Power capacity: Powers up to three 1790-1014 STROBESWITCH detectors from one module.
- Voltage range: 12–24VDC input to match common security power supplies.

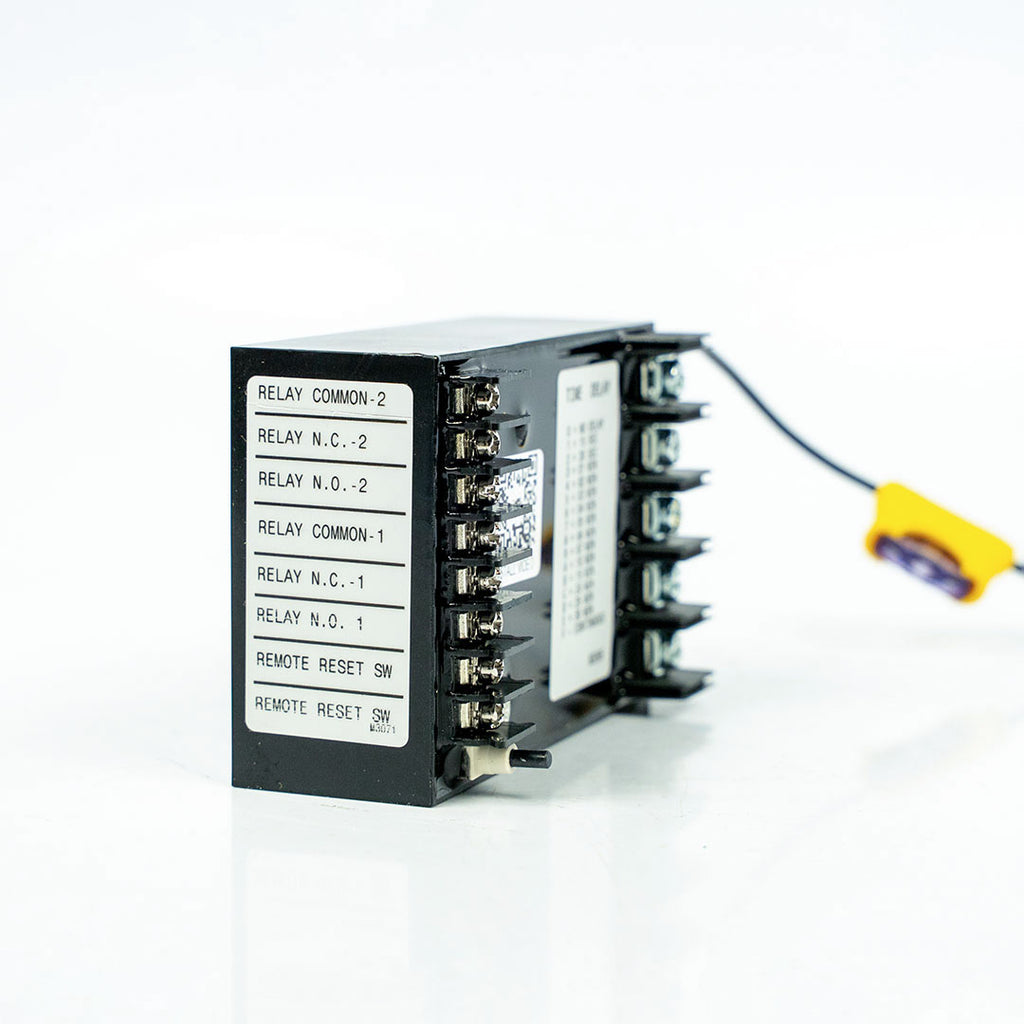

- Relay output: AC/DC DPDT relay output for versatile switching across circuits.
- Relay ratings: 2A at 30VDC and 0.6A at 120VAC, supporting typical load profiles.
- Timing and latch: 0–30-minute adjustable time delay with continuous latch mode for controlled signaling.
- Remote reset: Remote reset capability for quick system recovery without direct access to the module.
- Compatibility: Specifically designed to pair with Tomar 1790 series detectors for coordinated activation.
- Unit specs: Input voltage 12–24VDC; DPDT relay output; load ratings 2A @ 30VDC / 0.6A @ 120VAC; time delay 0–30 minutes; operation modes include continuous latch and remote reset; supports up to 3 detectors (1790-1014 STROBESWITCH).
The 1790M-2 simplifies power distribution in security cabinets by consolidating power for multiple detectors, reducing wiring complexity and ensuring synchronized activation across all connected 1790-1014 STROBESWITCH devices. The adjustable time delay helps prevent false alarms and allows precise control over signaling sequences, while the continuous latch mode keeps indicators active until a deliberate reset. With remote reset, maintenance and recovery are streamlined, keeping your system ready with minimal manual intervention.
