Description

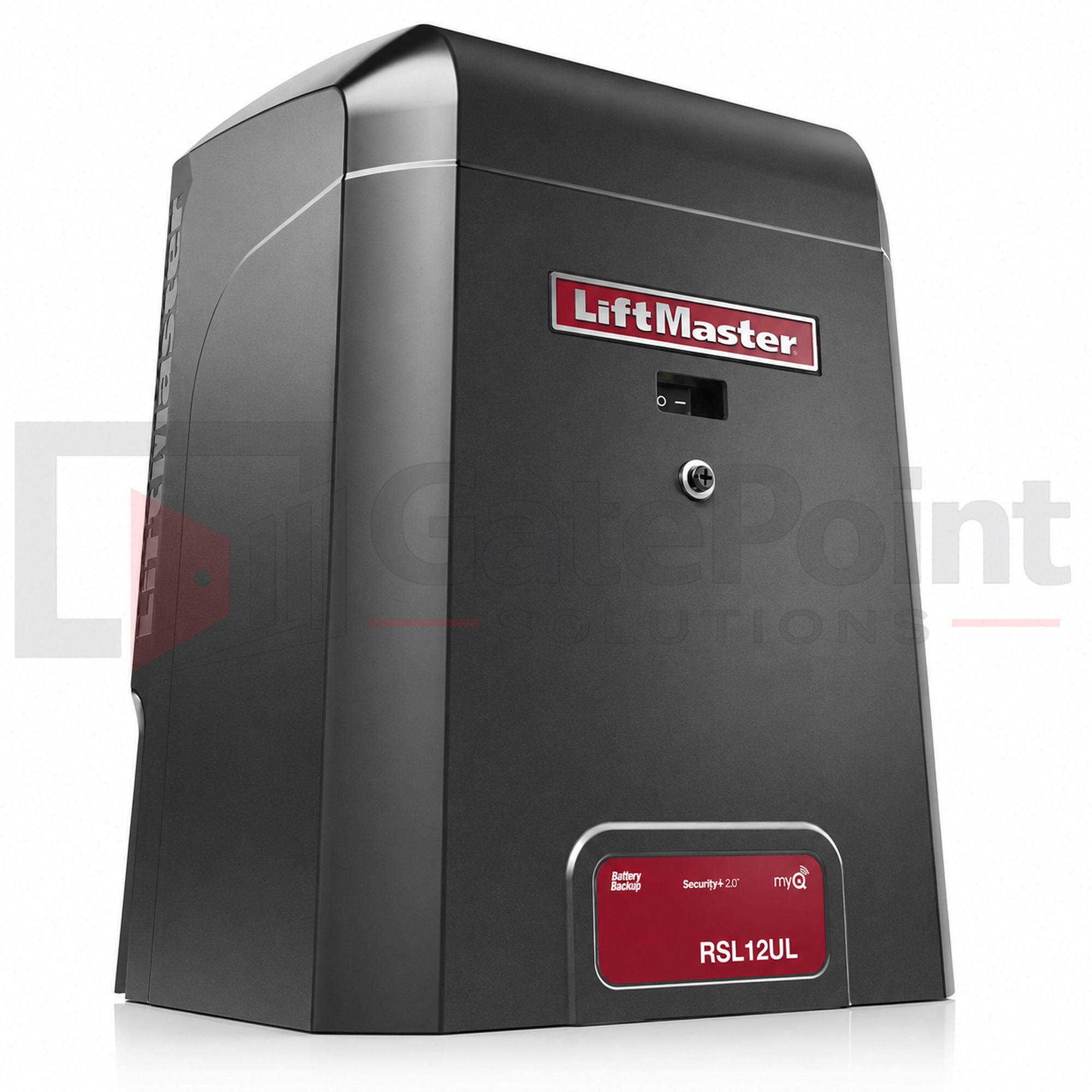

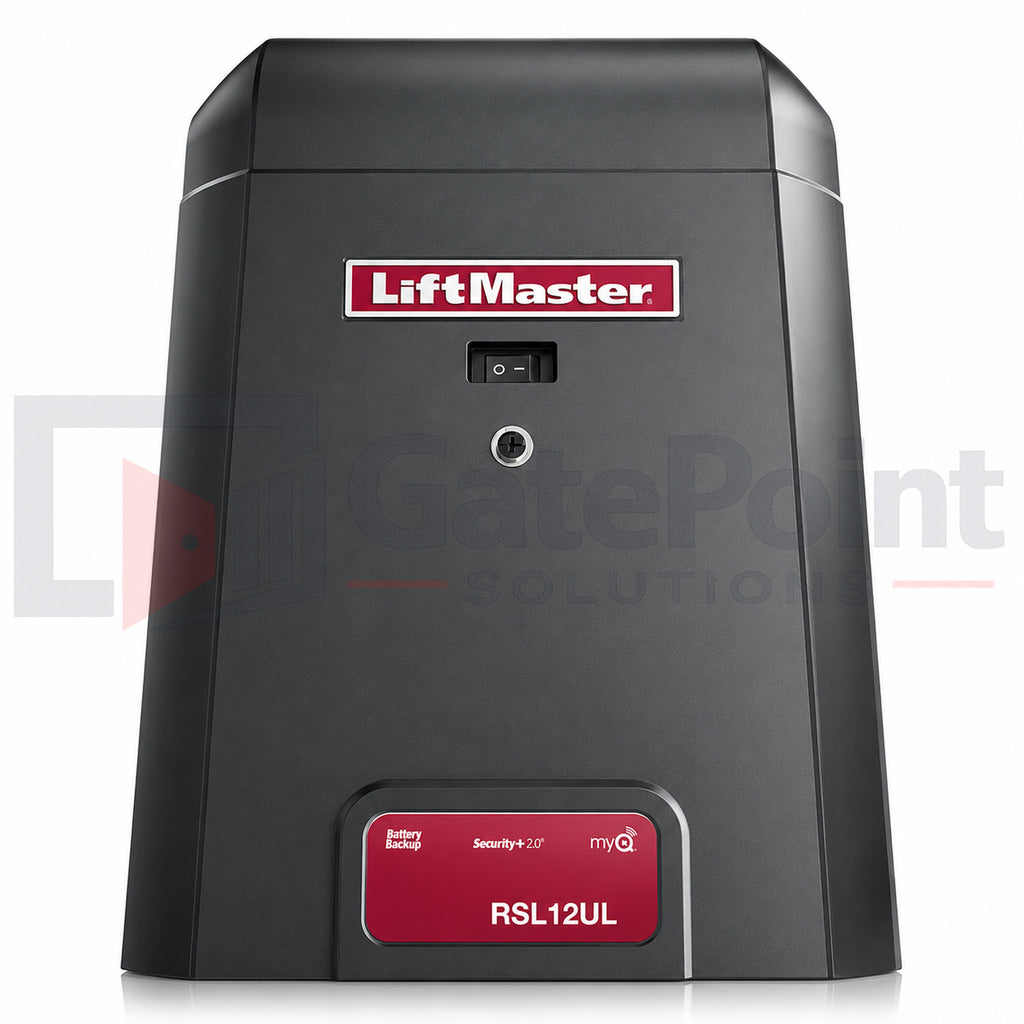

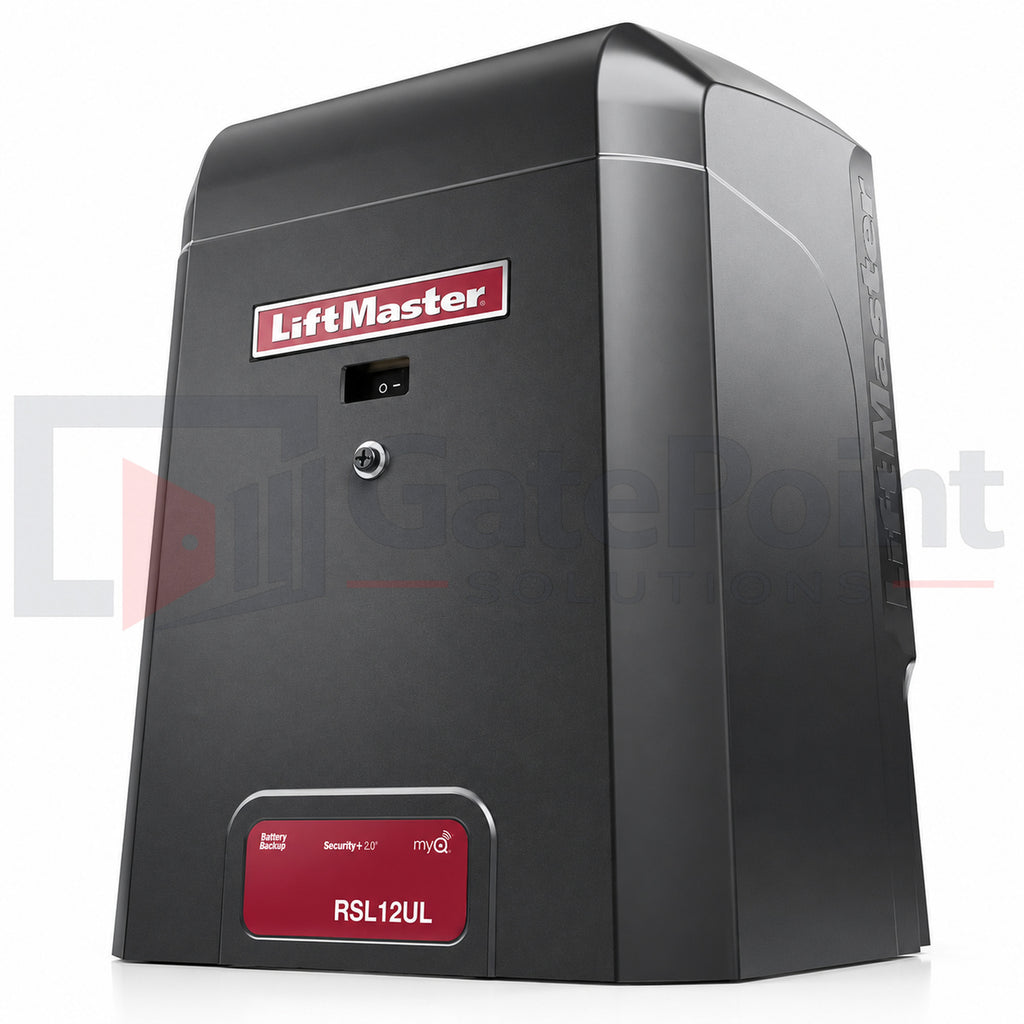

The LiftMaster RSL12UL is a residential and light commercial slide gate operator engineered for properties requiring reliable performance, battery backup operation, and advanced access control functionality. Designed for residential communities, private properties, farms, ranches, and light commercial applications, the RSL12UL combines solar-ready flexibility, monitored safety devices, and smart connectivity for dependable perimeter access.
Powered by a reliable 12VDC system with integrated battery backup capability, the RSL12UL delivers smooth gate operation with soft start/stop functionality and mid-travel reversal to help reduce mechanical wear and extend operator life. Integrated myQ® technology enables remote monitoring and control, while Security+ 2.0® encrypted communication helps protect against unauthorized access. Wireless dual-gate communication simplifies dual-operator installations by eliminating the need for costly driveway trenching.
The operator includes monitored entrapment protection devices and is UL® Listed for Class I, II, III, and IV applications. PosiLock® technology helps prevent unauthorized manual gate opening, while Fire Department Compliance functionality allows the gate to automatically open during AC power loss or battery depletion when required.
Included Accessories:
LMRRUL Monitored Retro-Reflective Photo Eye: Heated monitored retro-reflective photo eye with widened polarized beam engineered to maintain alignment; sensing range up to 50 ft.
S505AL Monitored Resistive Edge: Pressure-sensitive monitored edge designed to stop or reverse gate movement upon obstruction detection.
Specifications:
- Model: RSL12UL
- Product Type: Residential & Light Commercial Slide Gate Operator
- Motor Voltage: 12VDC
- Duty Rating: Residential / Light Commercial Duty
- Gate Speed: 10 in. per second
- Transmission: Commercial Gear-Driven Transmission
- Input Voltage: 115VAC
- Accessory Power: 12VDC 500mA Output
- Solar Compatible: Yes
- Battery Backup: Included
- Battery Backup Capacity: Up to 114 cycles or 63 days standby
- Wireless Communication: Dual-Gate Wireless Synchronization
- Security Technology: Security+ 2.0® Encrypted Radio
- Remote Capacity: Up to 50 Remotes On-Board
- Monitored Safety Inputs: 3 Main Board / 3 Expansion Board
- UL® Usage Classification: Class I, II, III, IV
- Operating Temperature: -4°F to 140°F (-20°C to 60°C)
- Operating Temperature with Heater: -40°F to 140°F (-40°C to 60°C)
- Chassis Construction: 1/4 in. Gold Zinc-Plated Steel
- Cover Material: UV-Resistant Polyethylene
- Operator Weight: 100 lbs.
- Dimensions: 23.30 in. H × 16.24 in. W × 16.76 in. D
- Manufacturer: LiftMaster
Key Features:
- Integrated battery backup for continued operation during power outages
- Solar-ready ultra-reliable power system
- Soft start/stop and mid-travel reversal help reduce component wear
- myQ® enabled remote monitoring and control
- Wireless dual-gate communication eliminates trenching requirements
- Security+ 2.0® encrypted communication technology
- PosiLock® helps prevent unauthorized manual gate opening
- Quick Close and Anti-Tailgate capability for enhanced site security
- Fire department compliance for emergency access situations
- Manual disconnect allows gate operation during service or power loss
- LED diagnostic display simplifies installation and troubleshooting
- Programmable auxiliary relays support expanded functionality
- HomeLink® compatible with supported vehicle systems
